Description
The MAX882ESA+ is a low IQ, low dropout linear regulator in 8 pin NSOIC package. It maximizes battery life by combining ultra low supply currents and low dropout voltages. It has 200mA output current capability at up to +125°C junction temperature. The MAX882 uses P-channel MOSFET pass transistor to maintain low 11µA (15µA maximum) supply current from no load to the full 200mA output. Unlike earlier bipolar regulators, there are no PNP base current losses that increase with output current. In dropout, the MOSFET does not suffer from excessive base currents that occur when PNP transistors go into saturation. The MAX882 features a 7µA standby mode that disables the output but keeps the reference, low battery comparator and biasing circuitry alive. This device includes low battery detection comparator, foldback current limiting, reverse current protection and thermal overload protection.
- Dual mode operation, fixed 3.3V or 1.25V to 11V adjustable output voltage
- Input voltage range from 2.9V to 11.5V
- Operating temperature range from -40°C to 85°C
- Internal 1.1ohm P-channel pass transistor draws no base current
- Low dropout voltage of 320mV at 200mA output current
- Load regulation of 30mV (IOUT = 1mA to 150mA) and line regulation of 10mV
- Foldback current limit of 170mA (VOUT < 0.8V) and 430mA (VOUT > 0.8V and VIN - VOUT > 0.7V)
- High power (1.5W) NSOIC package
Applications
Power Management
- :
- 11.5V
- :
- 3.3V
- :
- -40°C
- :
- 200mA
- :
- -
- :
- 85°C
- :
- 8Pins
- :
- -
- :
- Fixed
- :
- 2.9V
- :
- 3.3V 200mA LDO Voltage Regulators
- :
- -
- :
- NSOIC
- :
- Each
- :
- 320mV
- :
- MSL 1 - Unlimited
Product details
| Input Voltage Max | 11.5V |
| Fixed Output Voltage Nom. | 3.3V |
| Operating Temperature Min | -40°C |
| Output Current | 200mA |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 85°C |
| No. of Pins | 8Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | 2.9V |
| Product Range | 3.3V 200mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| LDO Regulator Case Style | NSOIC |
| Packaging | Each |
| Dropout Voltage Vdo | 320mV |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX882ESA+ |
| Quantity | Each |
| Technical Data Sheet EN |  |

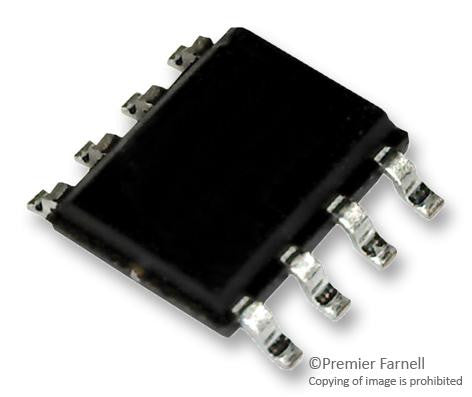

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
