Description
The MAX8527EUD+T is a 1.425V to 3.6V input, 2A, 0.2V dropout LDO regulator in 14 pin TSSOP package. The output voltage can be set from 0.5V to (VIN - 0.2V) and is 1.4% accurate over load and line variations, from 0°C to +85°C. This regulator use small, 2.2µF ceramic input capacitors and 10µF ceramic output capacitors to deliver 2A output current. High bandwidth provides excellent transient response and limits the output voltage deviation to 45mV for a 20mA to 2A load step with only a 10µF ceramic output capacitor and the voltage deviations can be reduced further by increasing the output capacitor. Designed with an internal P-channel MOSFET pass transistor, the MAX8526 feature low 500µA typical supply current during dropout conditions. The MAX8527 features a power-OK (POK) output that transitions high when the regulator output is within ±10% of its nominal output voltage.
- Initial accuracy is ±0.6%
- Operating temperature range from -40°C to 85°C
- Soft start limits inrush current
- Compatible with ceramic capacitors
- Fast transient response
- Operating supply current is 440µA
- Shutdown supply current is less than 50µA
- Logic controlled shutdown mode
- Short circuit protection
- Thermal overload protection
Applications
Power Management, Communications & Networking, Portable Devices
- :
- 3.6V
- :
- -
- :
- -40°C
- :
- 2A
- :
- 3.6V
- :
- 85°C
- :
- 14Pins
- :
- 1.425V
- :
- Adjustable
- :
- 1.425V
- :
- -
- :
- -
- :
- TSSOP
- :
- Cut Tape
- :
- 100mV
- :
- MSL 1 - Unlimited
Product details
| Input Voltage Max | 3.6V |
| Fixed Output Voltage Nom. | - |
| Operating Temperature Min | -40°C |
| Output Current | 2A |
| Adjustable Output Voltage Max | 3.6V |
| Operating Temperature Max | 85°C |
| No. of Pins | 14Pins |
| Adjustable Output Voltage Min | 1.425V |
| Output Type | Adjustable |
| Input Voltage Min | 1.425V |
| Product Range | - |
| Automotive Qualification Standard | - |
| LDO Regulator Case Style | TSSOP |
| Packaging | Cut Tape |
| Dropout Voltage Vdo | 100mV |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX8527EUD+T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

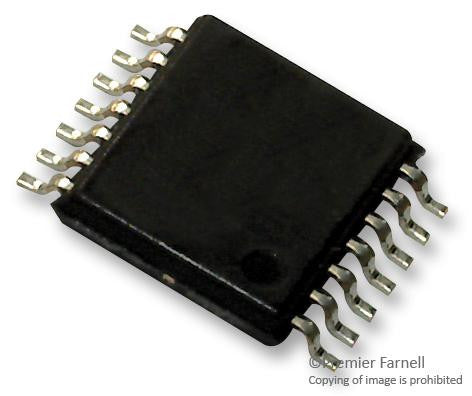

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
