Description

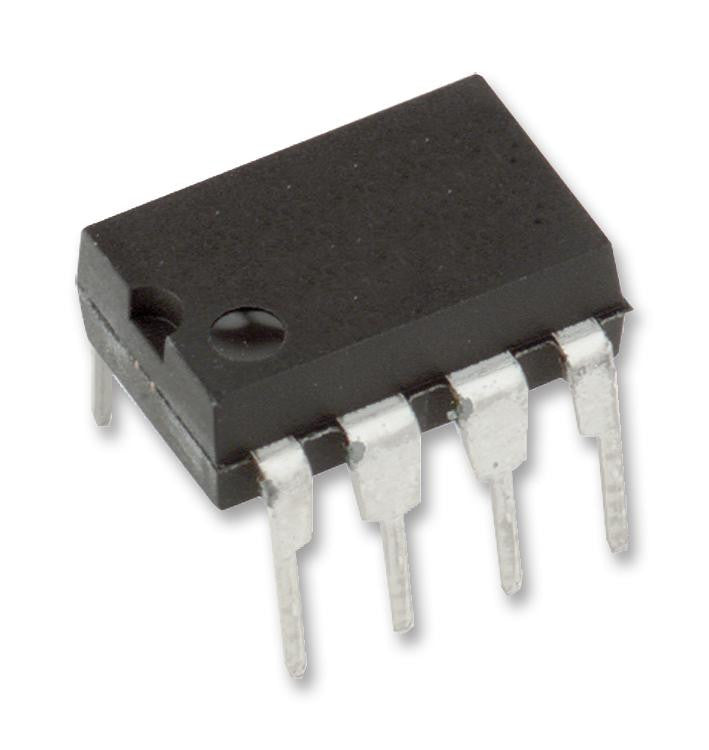

The MAX667EPA+ is a +5V/programmable low dropout voltage regulator in 8 pin DIP package. The MAX667 low-dropout, positive, linear voltage regulator supplies up to 250mA of output current. With no load, it has a typical quiescent current of 20µA. At 200mA of output current, the input/output voltage differential is typically 150mV. Other features include a low voltage detector to indicate power failure as well as early-warning and low-dropout detectors to indicate an imminent loss of output voltage regulation. A shutdown control disables the output and puts the circuit into a low quiescent-current mode. The MAX667 employs Dual Mode operation. One mode uses internally trimmed feedback resistors to produce +5V. In the other mode, the output may be varied from +1.3V to +16V by connecting two external resistors. The MAX667 is a pin-compatible upgrade to the MAX666 in most applications where the input voltages are above +3.5V.
- Supply voltage range is 3.5V to 16.5V
- Operating temperature range from -40°C to 85°C
- Maximum dropout voltage is 350mVat 200mA
- Quiescent current 20µA in normal mode and 0.2µA in shutdown mode
- Low battery detector, dropout detector output
- 10µF output capacitor
Applications
Power Management, Portable Devices
- :
- 16.5V
- :
- 5V
- :
- -40°C
- :
- 250mA
- :
- -
- :
- 85°C
- :
- 8Pins
- :
- -
- :
- Fixed
- :
- 3.5V
- :
- 5V 250mA LDO Voltage Regulators
- :
- -
- :
- DIP
- :
- Each
- :
- 150mV
- :
- MSL 1 - Unlimited
Product details
| Input Voltage Max | 16.5V |
| Fixed Output Voltage Nom. | 5V |
| Operating Temperature Min | -40°C |
| Output Current | 250mA |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 85°C |
| No. of Pins | 8Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | 3.5V |
| Product Range | 5V 250mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| LDO Regulator Case Style | DIP |
| Packaging | Each |
| Dropout Voltage Vdo | 150mV |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX667EPA+ |
| Quantity | Each |
| Technical Data Sheet EN |  |
