Description
The MAX604ESA+T is a 3.3V or adjustable, low dropout, low IQ, 500mA linear regulator in 8 pin NSOIC package. The typical dropout is 240mV at 200mA(3.3V), quiescent currents are 15µA typ and 35µA max. Shutdown turns off all circuitry and puts the regulator in a 2µA off mode. A unique protection scheme limits reverse currents when input voltage falls below output. Other features include foldback current limiting and thermal overload protection. The output is preset at 3.3V in addition, it employ Dual Mode operation allowing user-adjustable outputs from 1.25V to 11V using external resistors. The input voltage supply range is 2.9V to 11.5V. It features a 500mA P-channel MOSFET pass transistor. This transistor allows device to draw less than 35µA over temperature, independent of the output current. It is used in 5V regulators, 1.25V to 11V adjustable regulators, battery-powered devices, pagers and cellular phones and solar-powered instruments.
- 500mA output current with foldback current limiting
- Operating temperature range from -40°C to 85°C
- High power of 1.8W
- Thermal overload protection
- Reverse current protection
- Dropout voltage of 480mV at Iout=400mA
Applications
Power Management, Portable Devices, Consumer Electronics
- :
- 11.5V
- :
- 3.3V
- :
- -40°C
- :
- 500mA
- :
- -
- :
- 85°C
- :
- 8Pins
- :
- -
- :
- Fixed
- :
- 2.9V
- :
- 3.3V 500mA LDO Voltage Regulators
- :
- -
- :
- NSOIC
- :
- Cut Tape
- :
- 480mV
- :
- MSL 1 - Unlimited
Product details
| Input Voltage Max | 11.5V |
| Fixed Output Voltage Nom. | 3.3V |
| Operating Temperature Min | -40°C |
| Output Current | 500mA |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 85°C |
| No. of Pins | 8Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | 2.9V |
| Product Range | 3.3V 500mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| LDO Regulator Case Style | NSOIC |
| Packaging | Cut Tape |
| Dropout Voltage Vdo | 480mV |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX604ESA+T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

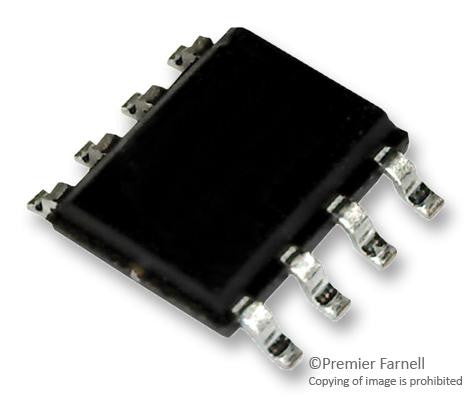

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
