Description

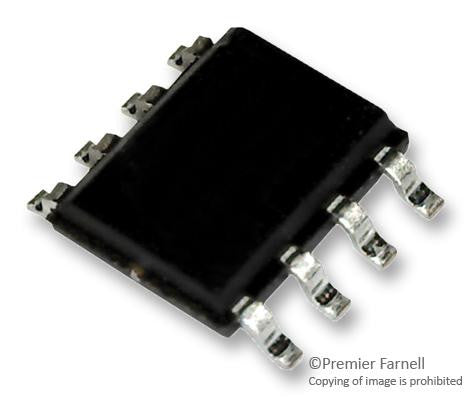

The MAX603CSA+ is a 5V or adjustable, low dropout, low IQ, 500mA linear regulator in 8 pin NSOIC package. The typical dropout of 320mV at 500mA(5V), quiescent currents are 15µA typ and 35µA max. Shutdown turns off all circuitry and puts the regulator in a 2µA off mode. A unique protection scheme limits reverse currents when input voltage falls below output. Other features include foldback current limiting and thermal overload protection. The output is preset at 5V in addition, it employ Dual Mode operation allowing user-adjustable outputs from 1.25V to 11V using external resistors. The input voltage supply range is 2.7V to 11.5V. It features a 500mA P-channel MOSFET pass transistor. This transistor allows device to draw less than 35µA over temperature, independent of the output current. It is used in 5V regulators, 1.25V to 11V adjustable regulators, battery-powered devices, pagers and cellular phones and solar-powered instruments.
- 500mA output current with foldback current limiting
- Operating temperature range from 0°C to 70°C
- High power of 1.8W
- Thermal overload protection
- Reverse current protection
- Dropout voltage of 320mV at Iout=500mA
Applications
Power Management, Portable Devices, Consumer Electronics
- :
- 11.5V
- :
- 5V
- :
- 0°C
- :
- 500mA
- :
- -
- :
- 70°C
- :
- 8Pins
- :
- -
- :
- Fixed
- :
- 2.7V
- :
- 5V 500mA LDO Voltage Regulators
- :
- -
- :
- NSOIC
- :
- Each
- :
- 320mV
- :
- MSL 1 - Unlimited
Product details
| Input Voltage Max | 11.5V |
| Fixed Output Voltage Nom. | 5V |
| Operating Temperature Min | 0°C |
| Output Current | 500mA |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 70°C |
| No. of Pins | 8Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | 2.7V |
| Product Range | 5V 500mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| LDO Regulator Case Style | NSOIC |
| Packaging | Each |
| Dropout Voltage Vdo | 320mV |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX603CSA+ |
| Quantity | Each |
| Technical Data Sheet EN |  |
