Description
The MAX5087BATE+ is a low quiescent current linear regulator with adjustable reset delay in 16 pin TQFN package. This high voltage linear regulator operates from an input voltage of 6.5V to 45V and delivers up to 400mA of output current. The device consumes only 70µA of quiescent current with no load and 11µA in shutdown. The device includes a SET input that when connected to ground selects a preset output voltage of 5V alternatively the output voltage can be adjusted from 2.5V to 11V by simply connecting SET to regulator's output through resistive divider network. The MAX5087 also provides an open-drain, active-low microprocessor (µP) reset output that asserts when regulator output drops below the preset output voltage threshold. An external capacitor programs reset timeout period. The MAX5087B includes an enable input, thermal shutdown and short circuit protection.
- Thermally enhanced package dissipates 2.6W at TA = +70°C
- Automotive temperature range from -40°C to 125°C
- Remote load sense capability and enable input
- Integrated microprocessor reset circuit with programmable timeout period
- Dropout voltage of 0.9V at IOUT = 400mA, VOUT = 5V
- Line regulation of ±1mV/V
- Power supply rejection ratio of 70dB (IOUT = 10mA, f = 100Hz, 500mVP-P, VOUT = 5V)
- Load regulation of 0.1ohm at IOUT = 1mA to 400mA
Applications
Power Management, Industrial, Safety, Security
- :
- 45V
- :
- 5V
- :
- -40°C
- :
- 400mA
- :
- -
- :
- 125°C
- :
- 16Pins
- :
- -
- :
- Fixed
- :
- 6.5V
- :
- 5V 400mA LDO Voltage Regulators
- :
- -
- :
- TQFN
- :
- Each
- :
- 900mV
- :
- MSL 1 - Unlimited
Product details
| Input Voltage Max | 45V |
| Fixed Output Voltage Nom. | 5V |
| Operating Temperature Min | -40°C |
| Output Current | 400mA |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 125°C |
| No. of Pins | 16Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | 6.5V |
| Product Range | 5V 400mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| LDO Regulator Case Style | TQFN |
| Packaging | Each |
| Dropout Voltage Vdo | 900mV |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX5087BATE+ |
| Quantity | Each |
| Technical Data Sheet EN |  |

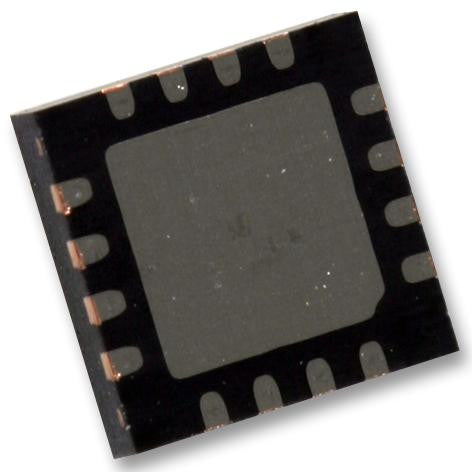

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
