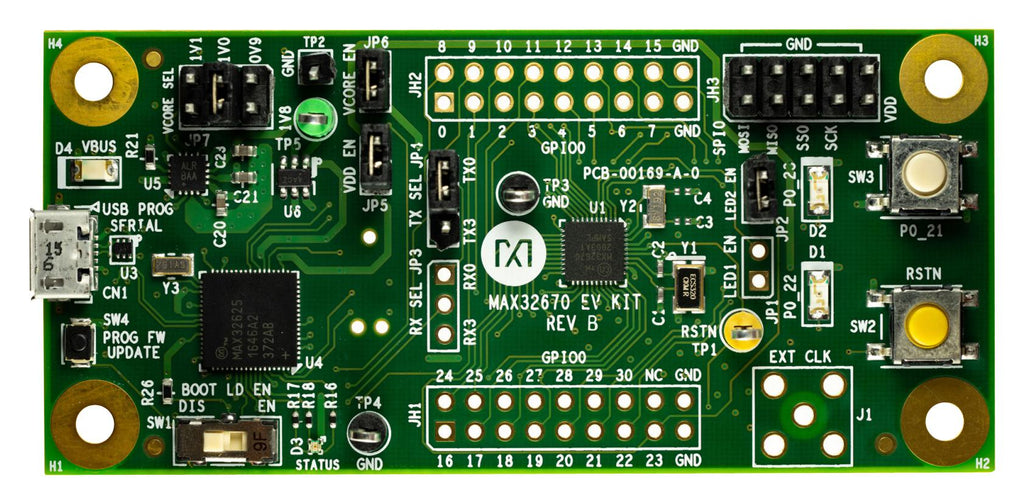

- Evaluation kit for MAX32670 MCU
- USB 2.0 Micro B to serial UART bridge
- UART0 and UART3 interface is selectable through on-board jumpers
- On-board MAX32625PICO-based debugger
- Boot load enable circuitry
- SPI and I²C signals accessed through 0.1in headers
- GPIOs and miscellaneous signals accessed through 0.1in headers
- Board power provided by USB port
- On-board SIMO regulator and LDO for IC and peripherals
- Individual power measurement on all IC rails through jumpers
Contents
Evaluation kit MAX32670GTL+, One standard A to micro B USB cable.
Product details
| Silicon Manufacturer |
Maxim Integrated Products |
| No. of Bits |
32bit |
| Silicon Family Name |
- |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M4F |
| Silicon Core Number |
MAX32670GTL+ |
| Kit Contents |
Eval Kit MAX32670GTL+, One Standard A to Micro B USB Cable |
| Product Range |
- |
Other details
| Brand |
MAXIM INTEGRATED PRODUCTS |
| Part Number |
MAX32670EVKIT# |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
