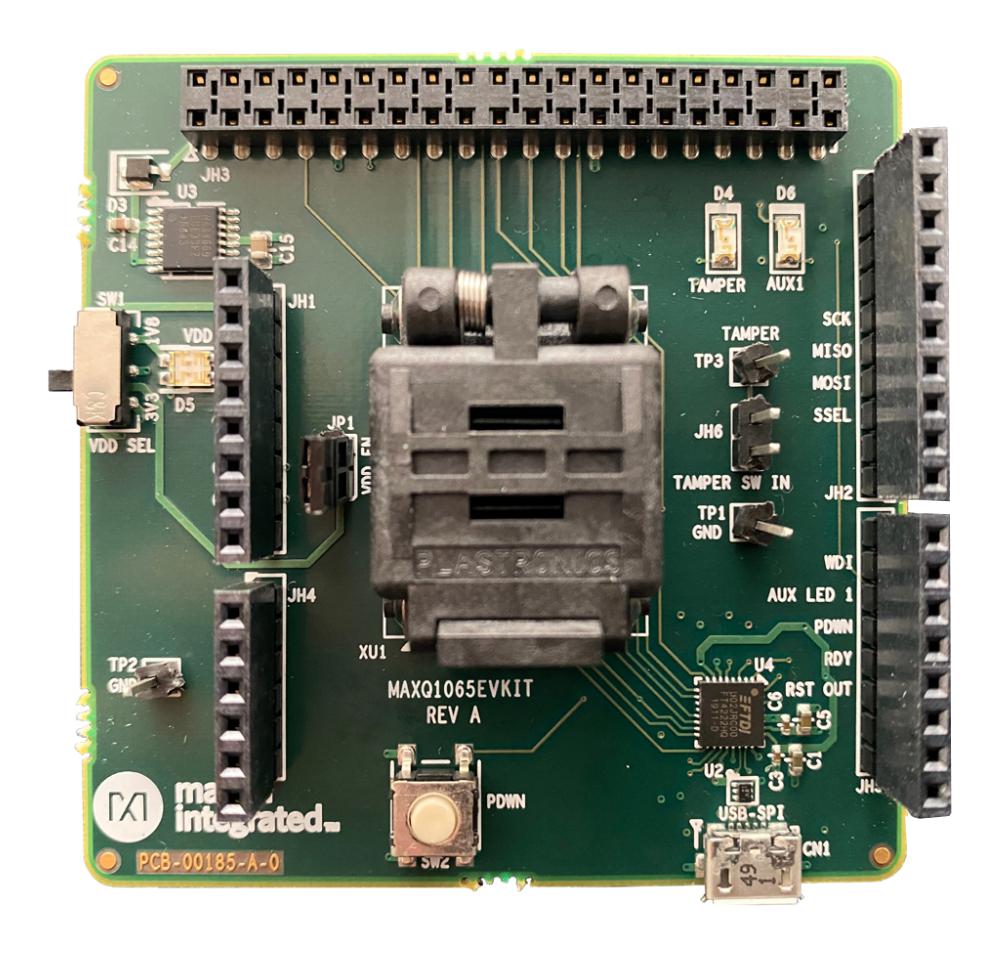

MAXQ1065 evaluation kit provides the hardware and software necessary to exercise the features of the MAXQ1065GTC+. The EV kit consists of five MAXQ1065GTC+ devices in a 12-pin TDFN package, and a MAXQ1065 evaluation 12-pin TDFN socket board. The device makes it fast and easy to implement full security for embedded, connected products without requiring firmware development. The MAXQ1065 coprocessors can be designed-in from the start or added to an existing design to guarantee confidentiality, authenticity, and integrity of the device.
- Demonstrates the Features of the MAXQ1065 Socket Board
- Compatible with Raspberry Pi® 3 Model B/B+ and Raspberry Pi 2 Model B
- Compatible with Arduino® UNO Motherboards
- Provides a USB connector for USB 2.0-to-SPI communication
- Convenient connectors for custom wiring
- 1.8V and 3.3V operating voltage
Contents
5 x MAXQ1065GTC+ secure coprocessor (12 TDFN), 1 x MAXQ1065 socket board (12 TDFN), 1 x USB standard-A to micro-B cable, 1 x Raspberry Pi-compatible elevated header.
Product details
| Silicon Manufacturer |
Maxim Integrated Products |
| No. of Bits |
- |
| Silicon Family Name |
- |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
MAXQ1065GTC+ |
| Kit Contents |
5 x MAXQ1065GTC+ Secure Coprocessor, Socket Brd, USB Cable, Raspberry Pi-Compatible Elevated Header |
| Product Range |
- |
Other details
| Brand |
MAXIM INTEGRATED / ANALOG DEVICES |
| Part Number |
MAXQ1065EVKIT# |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
