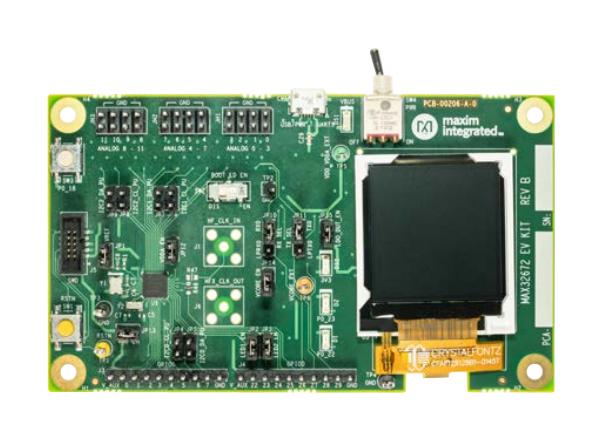

MAX32672 evaluation kit (EV kit) provides a platform for evaluating the capabilities of the MAX32672 microcontroller, which is a small, high-reliability, ultra-low power, 32-bit microcontroller. The MAX32672 is a secure and cost-effective solution for motion/motor control, industrial sensors, and battery-powered medical devices and offers legacy designs an easy, cost-optimal upgrade path from 8-bit or 16-bit microcontrollers.
- Selectable, on-board, high-precision voltage reference
- 128 x 128 (1.45in) colour TFT display with SPI interface
- USB 2.0 micro B-to-serial UARTs, UART0 and LPUART0 interface is selectable through on-board jumpers
- All GPIOs signals accessed through 0.1in headers
- 12 analogue inputs accessed through 0.1in headers with optional filtering
- 10-pin Arm® Cortex® SWD connector
- Board power provided by USB port
- On-board, 3.3V LDO regulator
- Test loops provided to supply optional VCORE power externally
- Two general-purpose LEDs and one general purpose pushbutton switch
Contents
MAX32672 EV kit containing a MAX32672 with a preprogramed demo, MAX32625PICO debugger with cables, One standard A-to-micro B USB cable.
Product details
| Silicon Manufacturer |
Maxim Integrated Products |
| No. of Bits |
32bit |
| Silicon Family Name |
- |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex |
| Silicon Core Number |
MAX32672 |
| Kit Contents |
Eval Kit MAX32672 |
| Product Range |
- |
Other details
| Brand |
MAXIM INTEGRATED / ANALOG DEVICES |
| Part Number |
MAX32672EVKIT# |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
