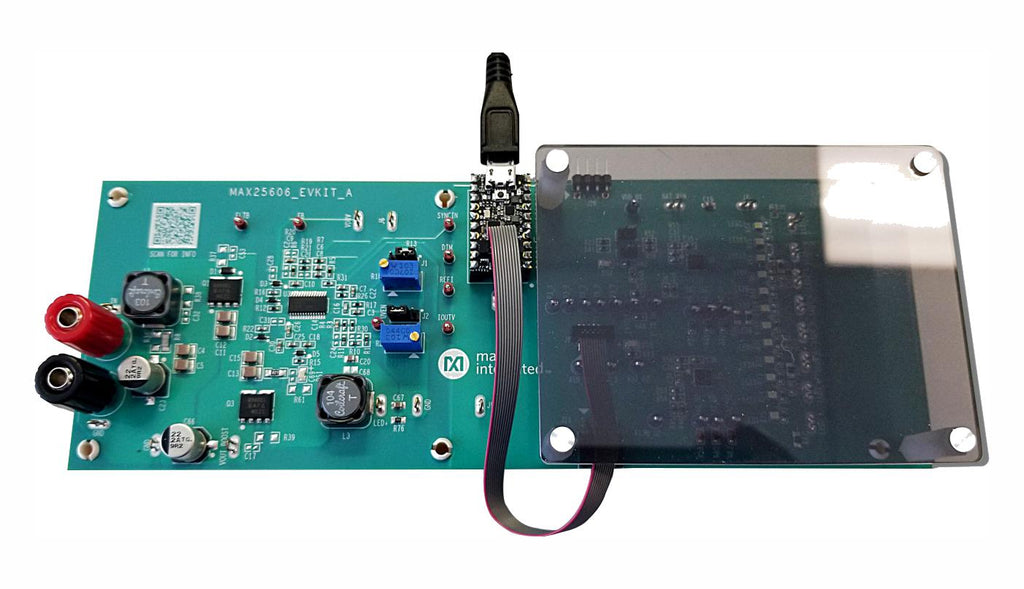

MAX25606 evaluation system (EV system) provides a proven design to evaluate the MAX25606 six-channel LED matrix manager. The EV system includes two instances of the MAX25606 controlling twelve on-board LEDs connected in a series configuration. The MAX25601 Boost-buck LED driver is also included to drive the LEDs.
- 12 on-board white LEDs
- MAX25601 boost-buck LED driver
- MAX32625PICO# provides UART communication to control the matrix managers
- GUI for easy evaluation
Other details
| Brand |
MAXIM INTEGRATED / ANALOG DEVICES |
| Part Number |
MAX25606EVSYS# |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
