Description

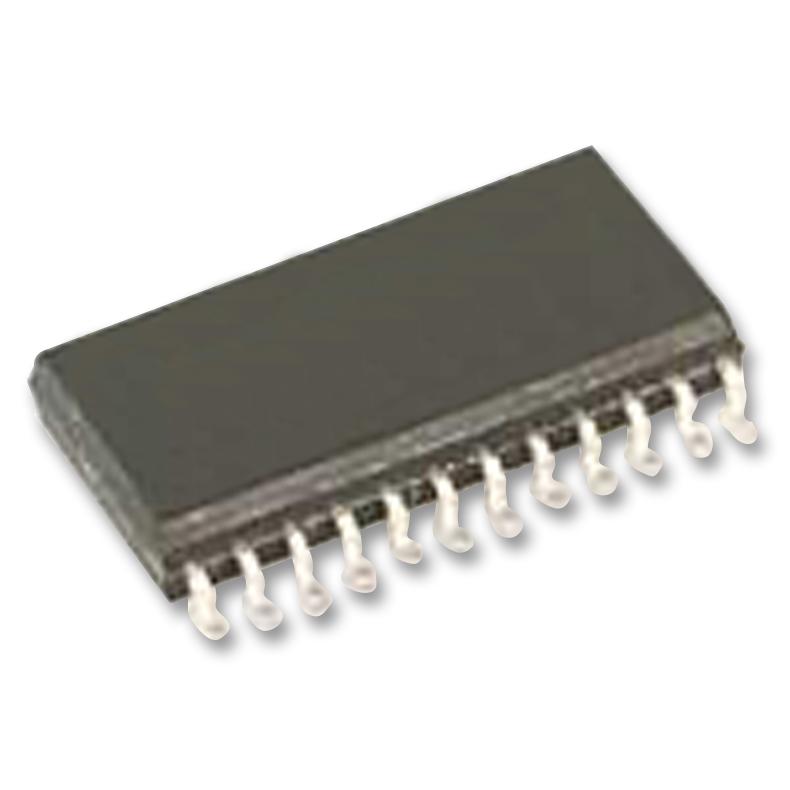

The MAX208EEWG+ is a ±15KV ESD protected, +5V RS232 transceiver in 24 pin WSOIC package. It is a RS232 and V.28 transceiver with high ±15KV ESD HBM (Human Body Model) protection and integrated charge pump circuitry for single 5V supply operation. This transceiver meets all EIA/TIA232E and CCITT V.28 specifications at data rate up to 120Kbps when loaded. This device is typically used in battery powered equipment.
- Four drivers and four receivers
- Supply voltage range from 4.5V to 5.5V
- Operating temperature range from -40°C to 85°C
- Supply current is 11mA
- Four 0.1µF external capacitors
- Saves board space
- Saves power for reduced power requirement
Communications & Networking, Portable Devices, Medical
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MAXIM INTEGRATED / ANALOG DEVICES |
| Part Number | MAX208EEWG+ |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1734.36 |
| 3-5 | ₹ 1716.67 |
| 5-10 | ₹ 1681.27 |
| 10+ | ₹ 1645.88 |
Bulk discount will be automatically applied during checkout based on quantity.
