Maxim Integrated / Analog Devices DS28E30EVKIT# DS28E30EVKIT# Evaluation Kit DS28E30 Deepcover Secure Authenticator Security New

DS28E30 evaluation kit (EV kit) provides the hardware and software necessary to exercise the features of the DS28E30. The EV system consists of five DS28E30 in WLP package mounted on an interface PCB, along with a DS9481P-300# USB-to-I2C/1-Wire® adapter. The evaluation software runs under Windows® 10, 8, and 7 operating systems for 64-bit and 32-bit versions. It provides a convenient user interface to exercise the features of the DS28E30.

• Demonstrates the features of the DS28E30 DeepCover® ECDSA secure authenticator
• 1-wire communication is logged to aid firmware designers understanding of DS28E30
• 1-wire/I2C USB adapter creates a virtual COM port on any PC
• Fully compliant with USB specification v2.0
• 3.3V ±3% 1-wire operating voltage

Contents

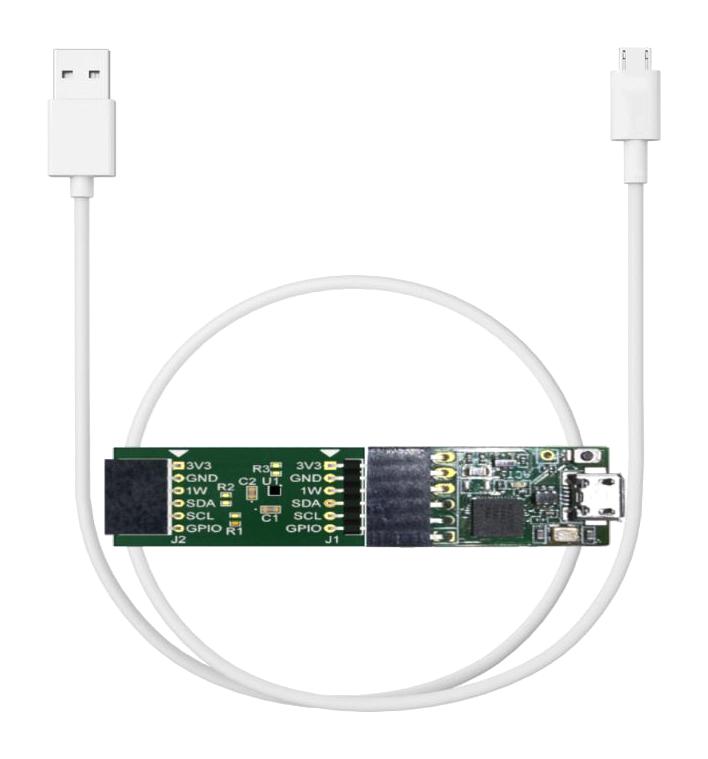

5 x DS28E30X+ interface PCB boards, 1 x DS9481P-300# USB to I2C /1-wire adapter, 1 x USB type-A to micro-USB type-B cable.

Other details

Brand	MAXIM INTEGRATED / ANALOG DEVICES
Part Number	DS28E30EVKIT#
Quantity	Each
Technical Data Sheet EN
