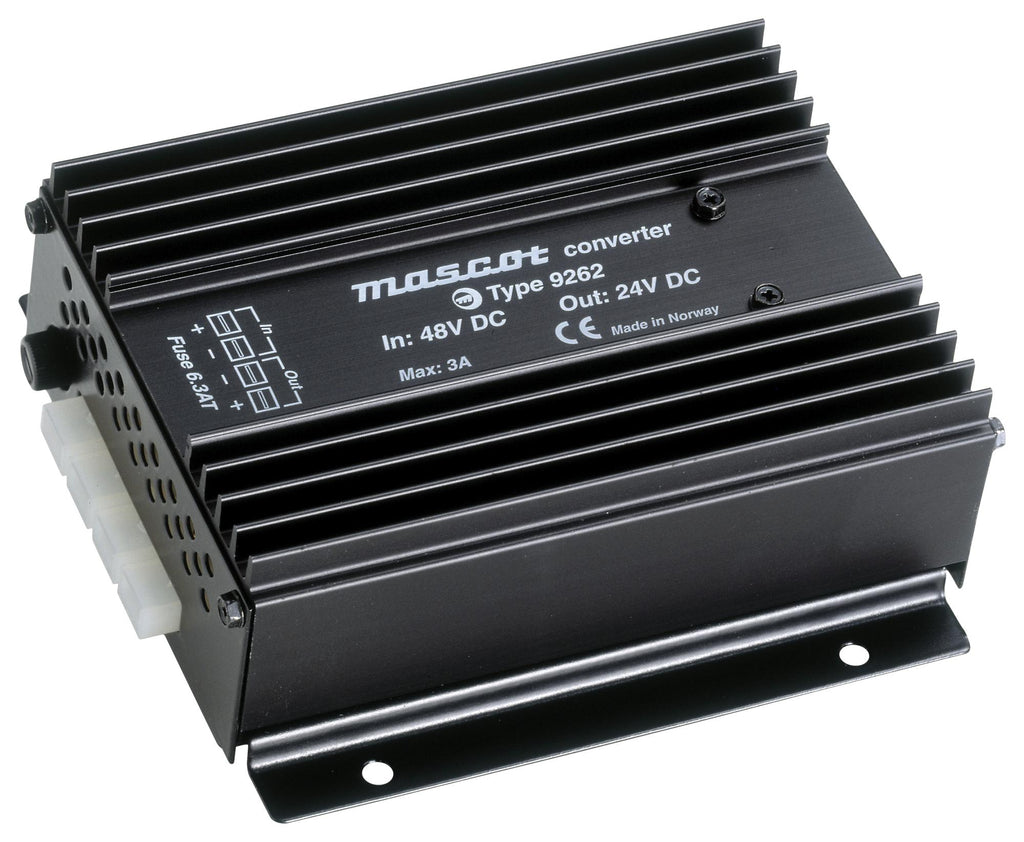

9262481200 is a switch mode regulated DC/DC converter with electrical separation. It is designed for electrical forklift trucks and other electromotive applications where high voltage transients may occur. It is protected against reversed polarity and overvoltage (transorb diode against transients). It features thermal protection, short circuit proof and overvoltage protection (output). Input and output are electrically separated from chassis. The input is electrically separated from output.
- 6.3mm push-on terminals (input and output)
- 40 to 64VDC input voltage range, 40 to 100VDC input voltage range (with transients med transient)
- 13.2VDC output voltage, 6A (continuous), 8A (intermittent) maximum current
- 81W continuous, 110W (intermittent) maximum output power
- 50KHz approx switch frequency
- 83% efficiency (6A load), EN 61000-6-3, EN 61000-6-1 standard
- Dimension (L x W x H) is 135 � 119 � 46mm
- Temperature range from -20°C to +30°C
Product details
| Power Supply Applications:
-
|
| Input Ratio:
-
|
| Output Power Max:
81W
|
| No. of Outputs:
1 Output
|
| Output Voltage - Output 1:
13.2V
|
| Output Current - Output 1:
6A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Regulation:
Regulated
|
| Isolation Voltage:
-
|
| DC / DC Converter Type:
-
|
| Input Voltage DC Nom:
-
|
| DC / DC Converter Output Type:
Fixed
|
| Width:
119mm
|
| Height:
46mm
|
| Depth:
135mm
|
| Input Voltage DC Min:
40V
|
| Input Voltage DC Max:
100V
|
| Product Range:
9262 Series
|
Other details
| Brand |
MASCOT |
| Part Number |
9262481200 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
