Description

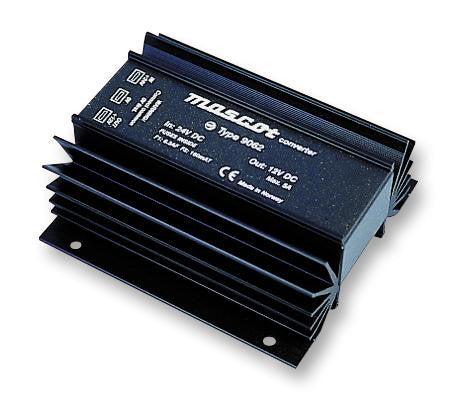

The 9062 24/12 from Mascot is a linear regulated DC to DC converter. This converter is protected against overvoltage at output and short circuit proof. It is specially designed for car stereo equipment. At high backup current, the load current should be adjusted accordingly.
- Input voltage range from 20VDC to 32VDC
- Output voltage is 13.5VDC
- Maximum continuous output power is 40W
- Maximum continuous load current is 3A
- Dimensions (LxWxH) is 130mm x 105mm x 46mm
- Protected against reversed polarity 6.3A fuse at input
- Protected against overvoltage at approximately 16V at output
- 6.3mm push-on terminals
- Common negative connection for input and output
Applications
Power Management, Industrial
Product details
| Output Power Max | 40W |
| Input Voltage DC Min | 20V |
| DC / DC Converter Mounting | Panel |
| Product Range | - |
| Output Current Max | 3A |
| Approvals & Standards | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Output Voltage Nom. | 13.5V |
| Input Voltage DC Max | 32V |
Other details
| Brand | MASCOT |
| Part Number | 9062 24/12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
