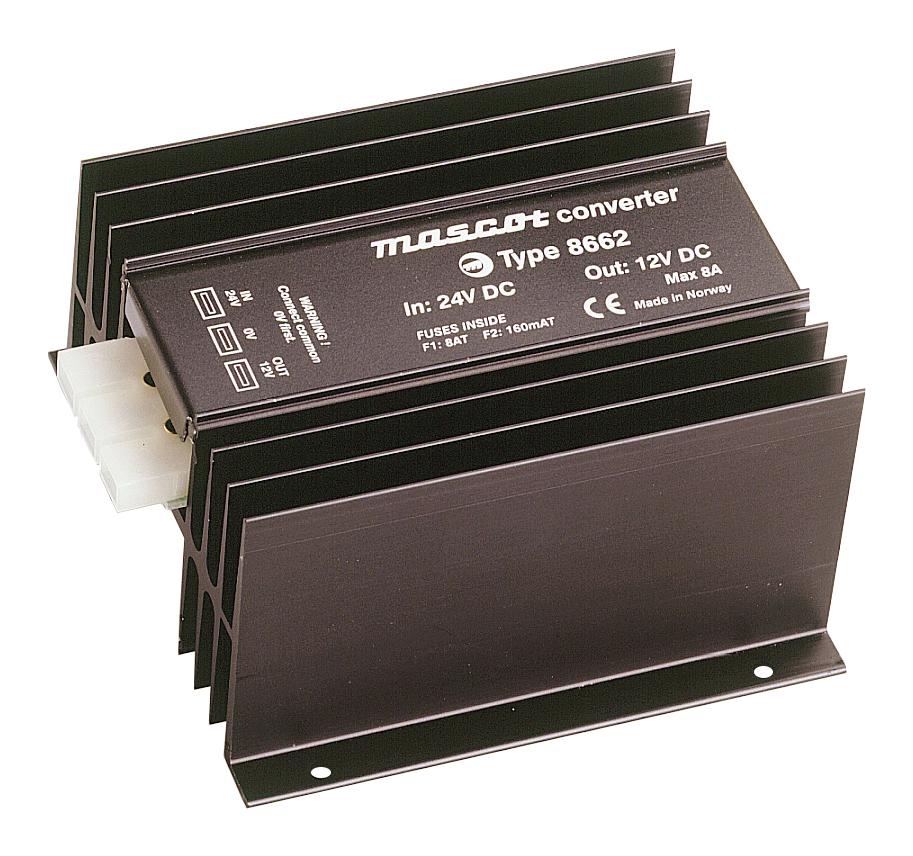

- Linear regulated DC/DC converter
- Protected against reversed polarity 8A fuse (input)
- Protected against overvoltage at approx. 16V (output)
- 6.3mm push-on terminals (input and output)
- Common negative connection for input and output
- Specially designed for car stereo equipment
- 20 to 32VDC input voltage range, 13.5VDC output voltage
- 80W (continuous), 100W (intermittent) maximum output current
- 5mA approx no load current, EN 61000-6-3, EN 61000-6-1 standard
- Dimension (L x W x H) is 129 Ã� 115 Ã� 62mm, temperature range from -20°C to +25°C
Product details
| Power Supply Applications:
-
|
| No. of Outputs:
1 Output
|
| Output Power Max:
80W
|
| Output Voltage Nom:
13.5V
|
| Output Current Max:
6A
|
| Product Range:
8662 Series
|
| DC / DC Converter Mounting:
-
|
| Input Voltage DC Min:
20V
|
| Input Voltage DC Max:
32V
|
Other details
| Brand |
MASCOT |
| Part Number |
8662241200 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
