Description

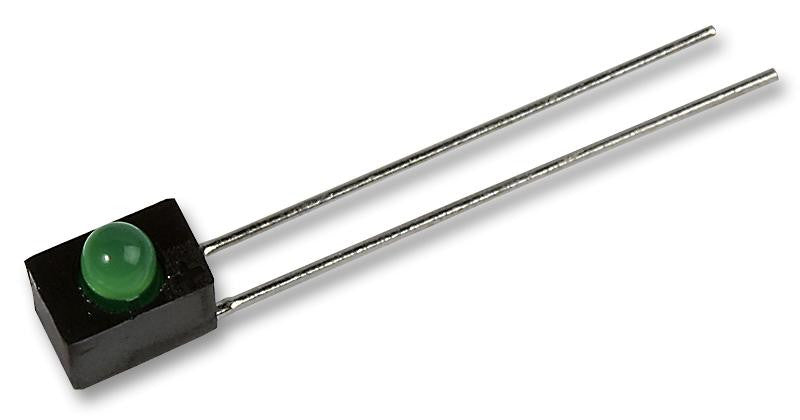

The 103-314-01 is a 3mm 2mA green right angle PCB Mount LED saves on board space and assembly time. The 103 series diffused LED gives wide viewing angle. It offers reduced power consumption, outstanding reliability and meets industrial requirements. The long lead of a non cropped unit can also be used to help identify the anode.
- Standard intensity LED
- LED polarity
- Reverse polarity
- UL94V-0 Flammability rating
Applications
LED Lighting, Industrial
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| LED Colour | Green |
| Bulb Size | T-1 (3mm) |
| LED Mounting | Through Hole |
| Forward Voltage | 2.2V |
| Luminous Intensity | 20mcd |
| Width | 4mm |
| Product Range | - |
| Viewing Angle | 30° |
| Forward Current If | 2mA |
| Packaging | Each |
| No. of LEDs | 1LEDs |
| Height | 6.2mm |
Other details
| Brand | MARL |
| Part Number | 103-314-01 |
| Quantity | Each |
| Technical Data Sheet EN |  |
