Description

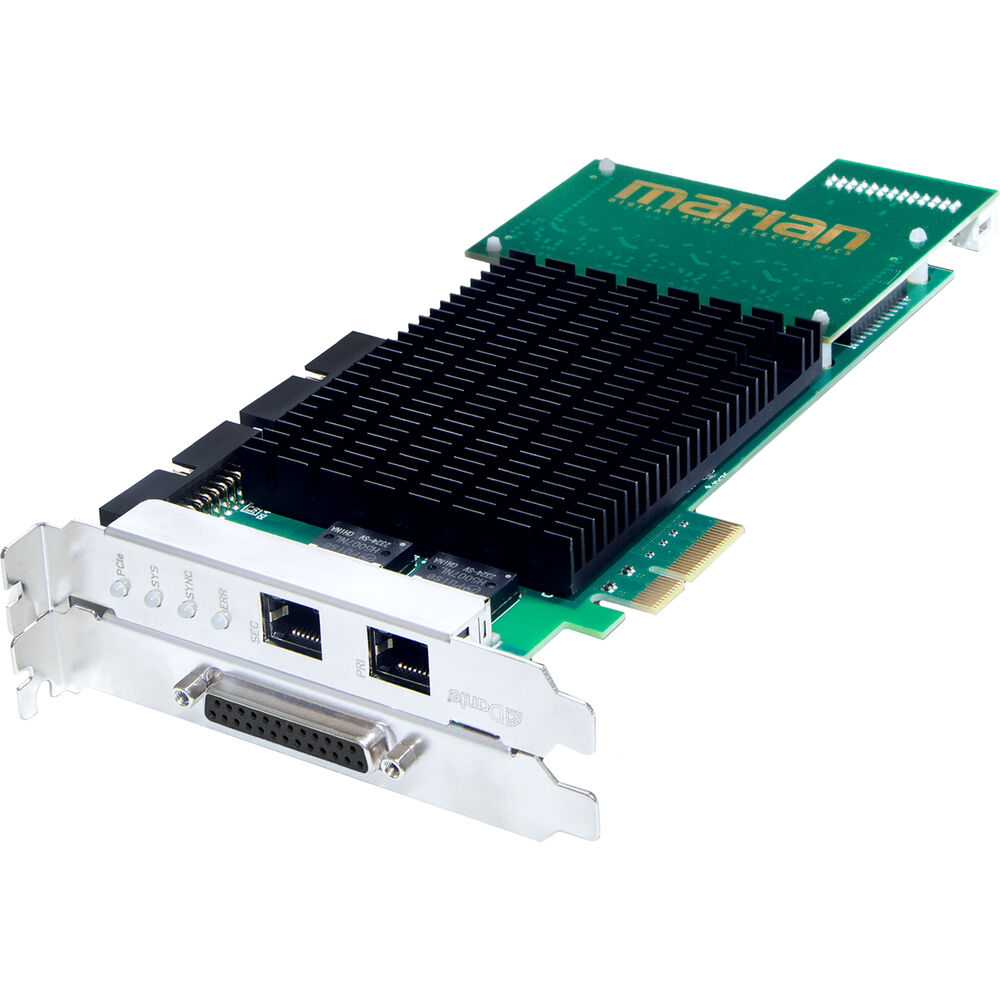

marian DIGITAL AUDIO ELECTRONICS Clara E/D Overview
Achieve long-distance connectivity and AES/EBU I/O with the marian DIGITAL AUDIO ELECTRONICS Clara E/D 1024-Channel Dante PCIe and 16-Channel AES/EBU Sound Card. The Clara E/D offers a cost-effective solution for up to 512 bidirectional Dante channels and 16 channels of AES/EBU?all in a two PCIe-slot width. With high-end chips supporting sample rates up to 24-bit / 192 kHz resolution, latencies of 1 ms, AES67 support, auto configuration, the security of two redundant network ports, one DB-25 connection, and rugged construction, the Clara E/D reliably delivers state-of-the-art sound quality for demanding applications in professional studios and installations.
The onboard BEAST DSP mixer provides enough processing power to create a versatile latency-free mixing console with EQ for all input signals. If several Clara E cards are installed in a computer system and synchronized via the TDM SyncBus, the cards behave like a single device within the ASIO application.
- PCIe card with up to 512 bidirectional Dante channels (1024 channels)
- Four AES/EBU in and outputs (16 Channels)
- AES67 support
- 24-bit / 192 kHz high-quality audio
- Latency: 1 ms
- Dual RJ45 Gigabit Ethernet ports for redundancy
- Fanless design
- Dante Status LEDs and marian System Status LED
- The BEAST Mixer: 64-channel DSP mixing desk with EQ
- Cascadable via MARIAN-SyncBus compatible and TDM-SyncBus
- Compatible with Thunderbolt PCIe adapters
- Windows 7 to 11, Linux Ubuntu 20.04 to 20.04, Debian 11 to 12, Armbian 23.8.3
- Driver support: MME, WASAPI, ASIO 2.2, WDM Kernel Streaming, DirectSound, Core Audio
- Up to 256 Dante AoIP channels at 192 kHz (128 I/O)
- Up to 512 Dante AoIP Channels at 96 kHz (256 I/O)
- Up to 1024 Dante AoIP Channels at 48 kHz (512 I/O)
- With the provided breakout cable, enjoy 4 AES/EBU inputs and outputs for a total of 16 channels.
- The continuously enhanced driver includes multiclient support for ASIO 2.2 and multichannel WDM audio / WASAPI with the lowest latencies in all software environments.
- This ensures that multiple audio applications can access the sound system simultaneously via the same or different driver interfaces.
- The BEAST Mixer is a 64-channel DSP mixer integrated into the card's hardware. It provides latency-free routing to any output. The BEAST mixer also sums up to 64 signals to 8 different buses and plays them back on any number of outputs. It also adds playback signals from any DAW?just like an analog mixer.
- All mix sums can be fed back to an application for recording. Each channel of the BEAST mixer offers 4 parametric EQs for sonic processing.
- If several Clara E cards are installed in a computer, they are synchronized via the TDM SyncBus and appear as a combined sound system to an ASIO application.
- In the BEAST Mixer, up to 32 audio signals can be exchanged with other Clara sound systems and integrated for use with ASIO.
- marian DIGITAL AUDIO ELECTRONICS Clara E/D Dante Sound Card 512x512 and 16 AES/EBU Channels
- DB-25 to AES/EBU Breakout Cable
- Limited 5-Year Manufacturer Warranty
No additional resources available
marian DIGITAL AUDIO ELECTRONICS Clara E/D Specs
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
No Mic Inputs
|
| Analog Audio I/O |
No
|
| Digital Audio I/O |
DB-25 AES3 In & Out
|
| Host Connection |
No
|
| Power Requirements |
PCIe
|
| Display |
4x Color LED
|
| Built-In DSP |
Yes
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
No Mic Inputs
|
| Built-In Microphone |
No
|
| Pad |
No
|
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
| Analog Audio I/O |
No
|
| Phantom Power |
No
|
| Digital Audio I/O |
1x DB-25 AES3 In & Out
|
| Host Connection / USB |
No
|
| Host Connection Protocol |
PCIe
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
2x RJ45 AES67 / Dante
|
| MIDI I/O |
No
|
| Expansion Slots |
No
|
| Wireless |
No
|
| Sample Rates |
Up to 192 kHz
|
| Sample Rate Conversion |
No
|
| Bit Depths |
Up to 24-Bit
|
| Latency |
System:
1 ms |
| Sync Sources |
AES3, Dante
|
| Clocking |
AES:
Dante: |
| Media/Memory Card Slot |
No
|
| OS Compatibility |
macOS 14 or Later / Windows 7 or Later / Linux
|
| Mobile Device Compatibility |
No
|
| Required Hardware |
PCIe Card Slot
|
| Power Requirements |
PCIe
|
