Description

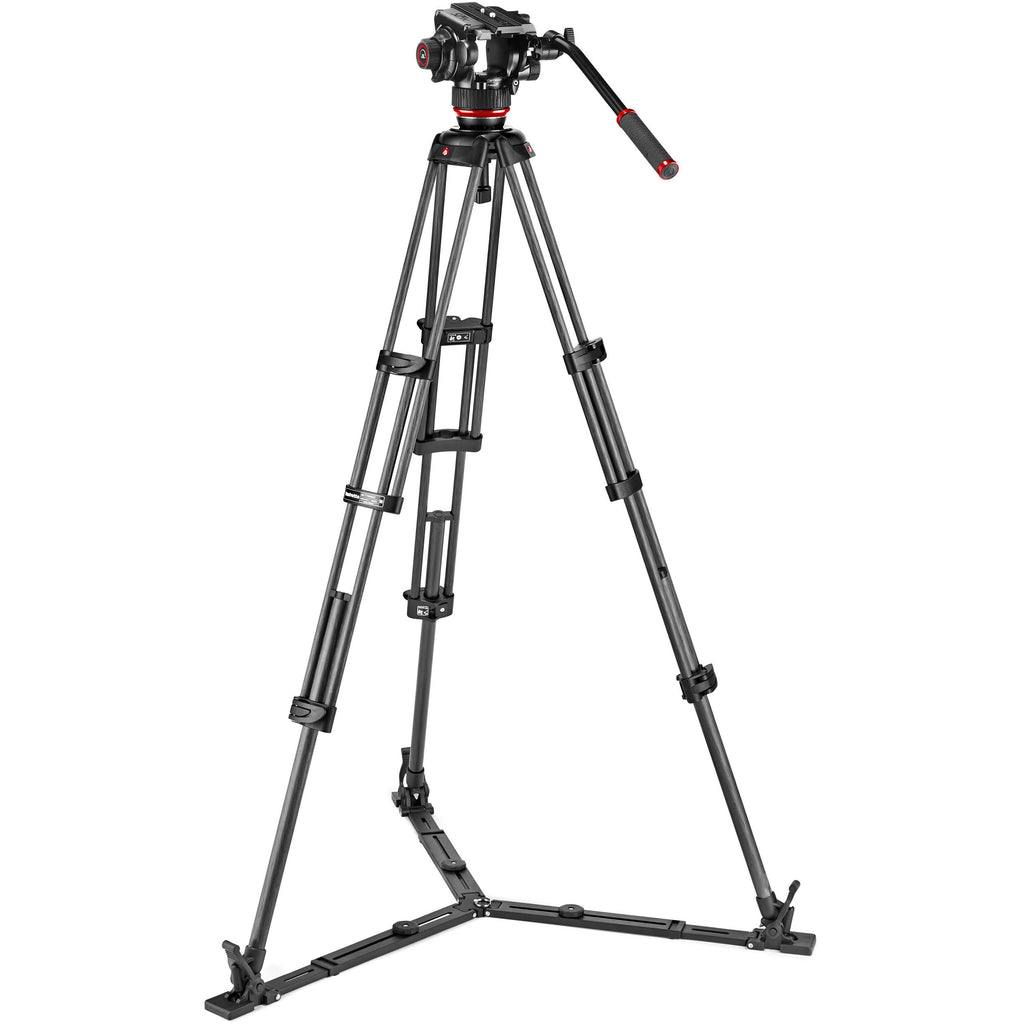

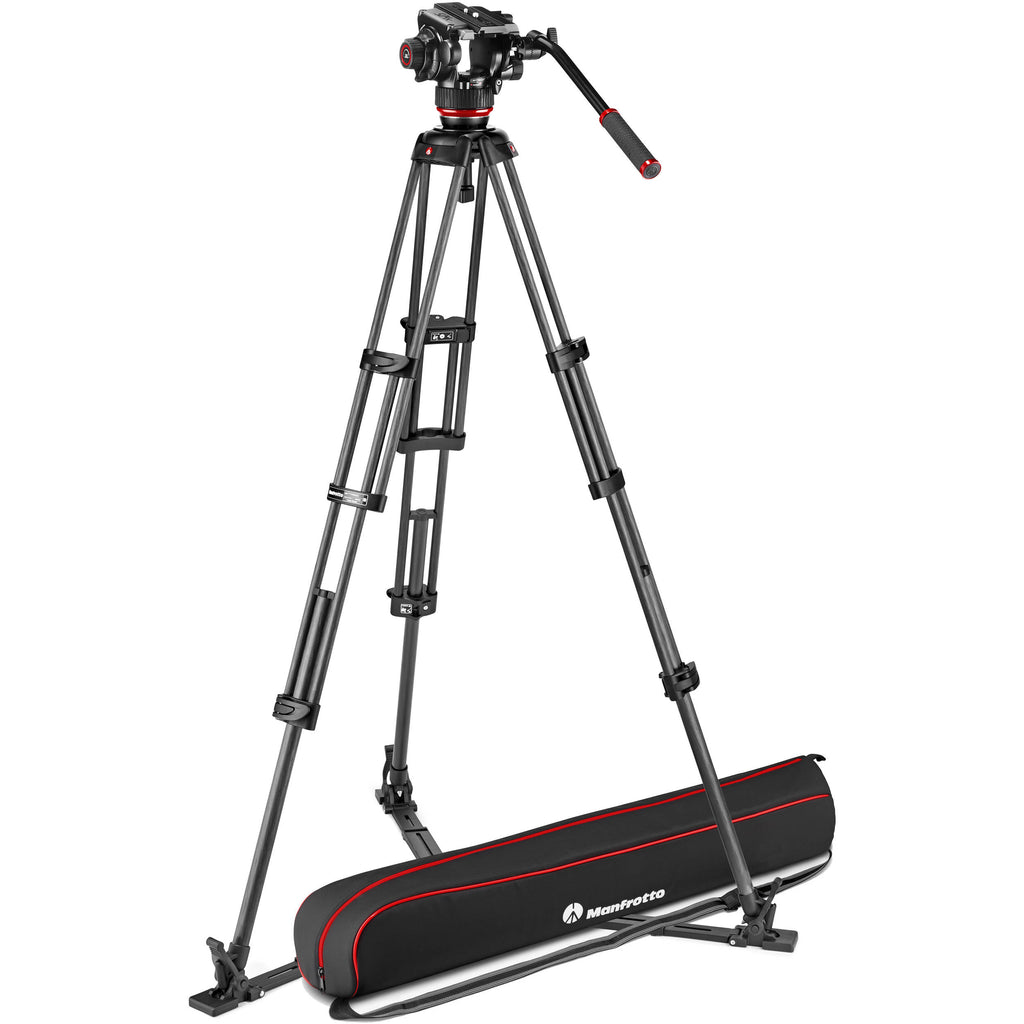

Support your camera rig with the 504X Flat-Base Fluid Video Head and Carbon Fiber Tripod with Ground Spreader from Manfrotto . The system features the 504X fluid tripod head, the MVTTWINGC carbon fiber tripod, a leveling ball to adapt the head to the tripod, and a carry bag.
The head features a 26.5 lb maximum load, a pan bar, a quick release plate, a counterbalance system with four presets, and its open bridge design that provides a stable, smooth performance and reduces weight. Its flat base with a 3/8"-16 female mounting thread allows compatibility with a wide range of tripods, monopods, sliders, jibs, and dollies, and a variety of rigs.
The twin-leg carbon fiber tripod provides a 44.1 lb maximum load and a 75/100mm ball head mount, and it features a ground spreader. The 504X head mounts onto the MVTTWINGC tripod using the included leveling ball. A carry bag is included to store and transport the entire system.

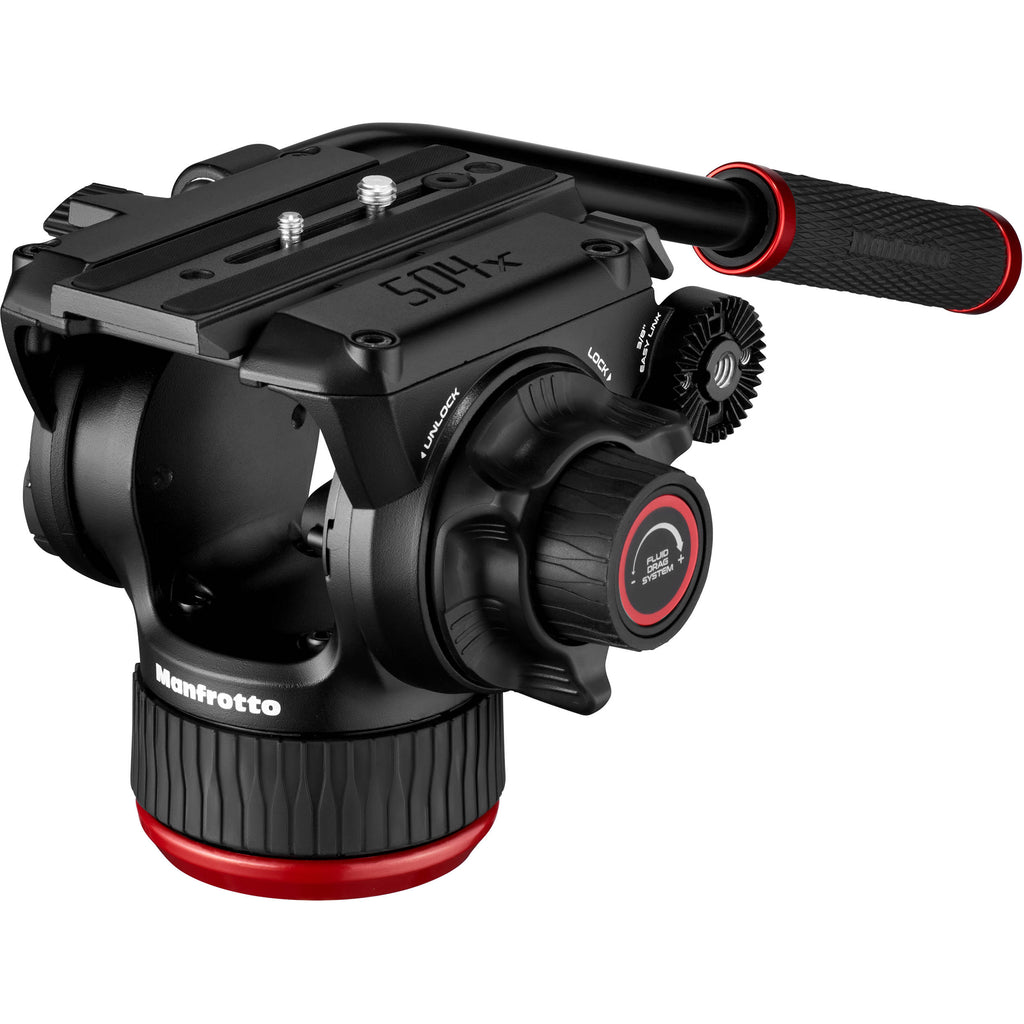

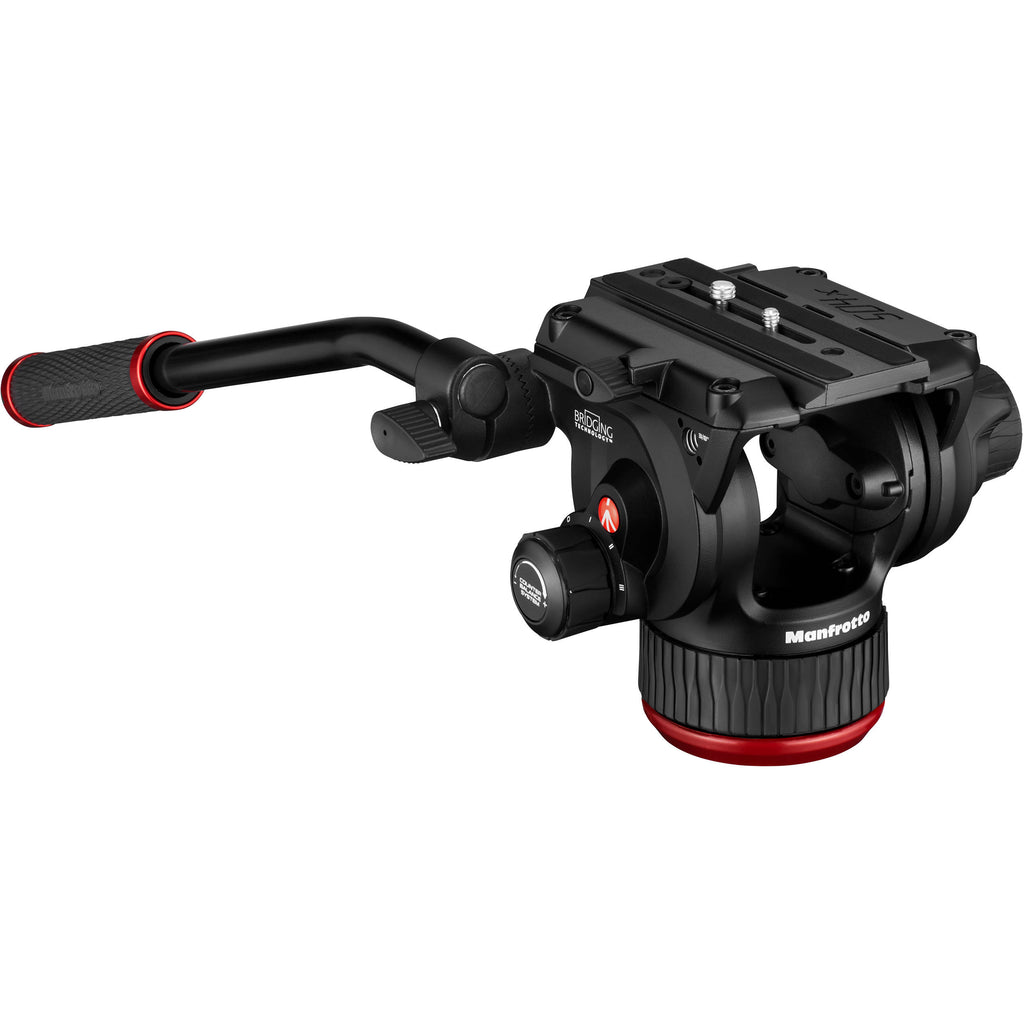

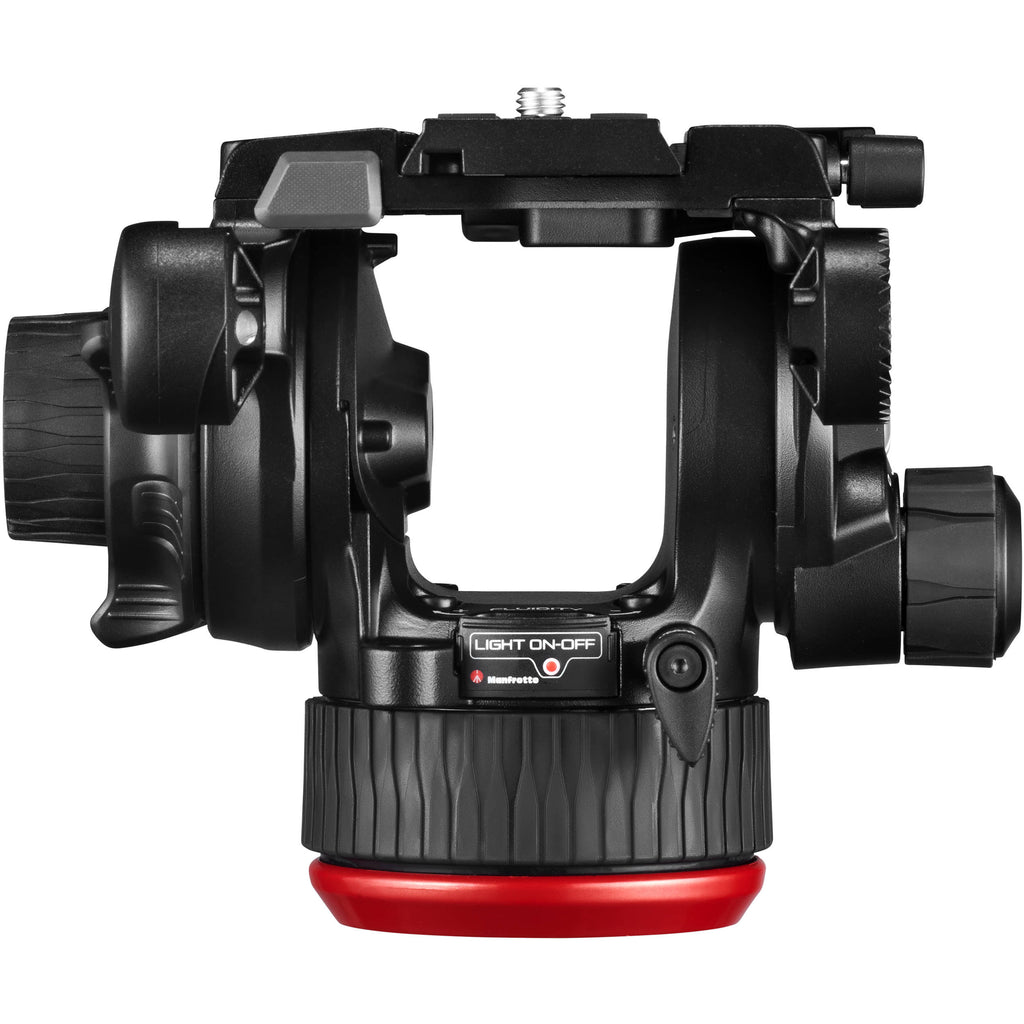

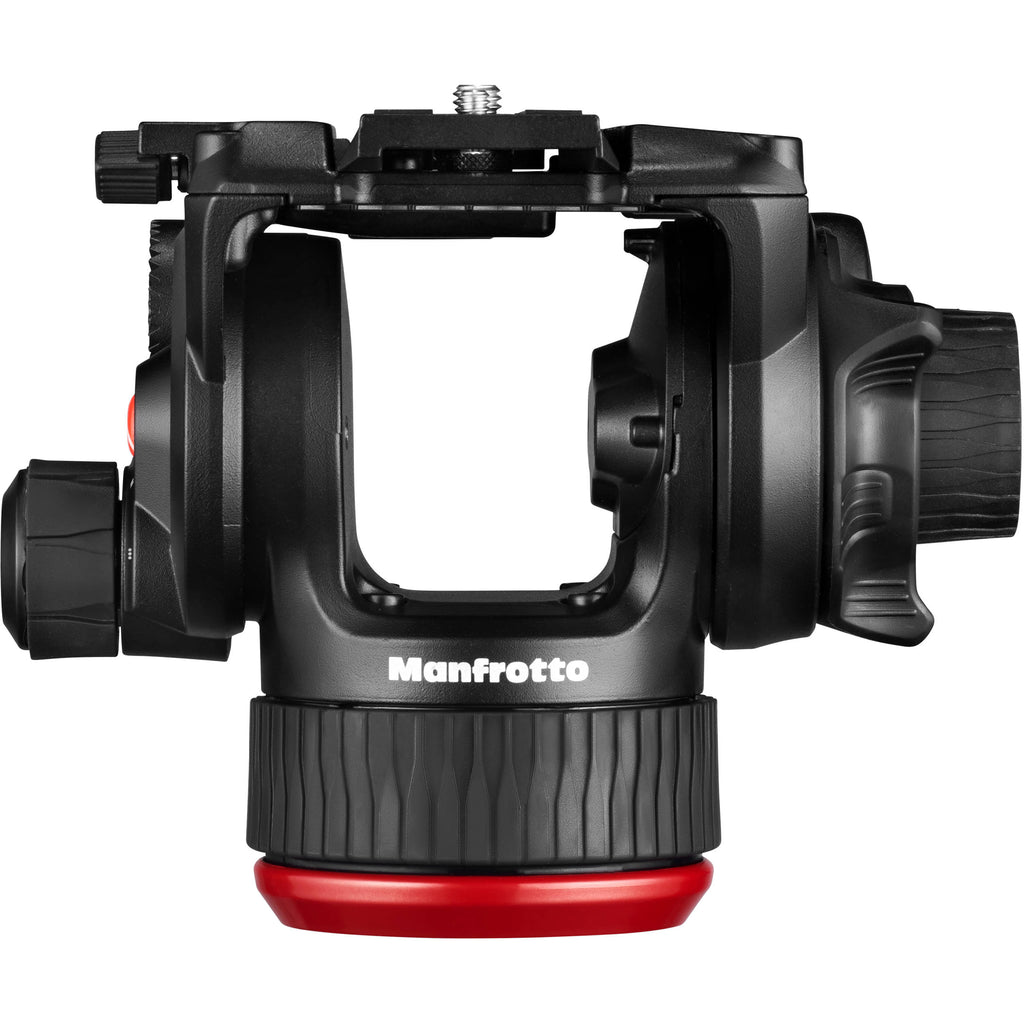

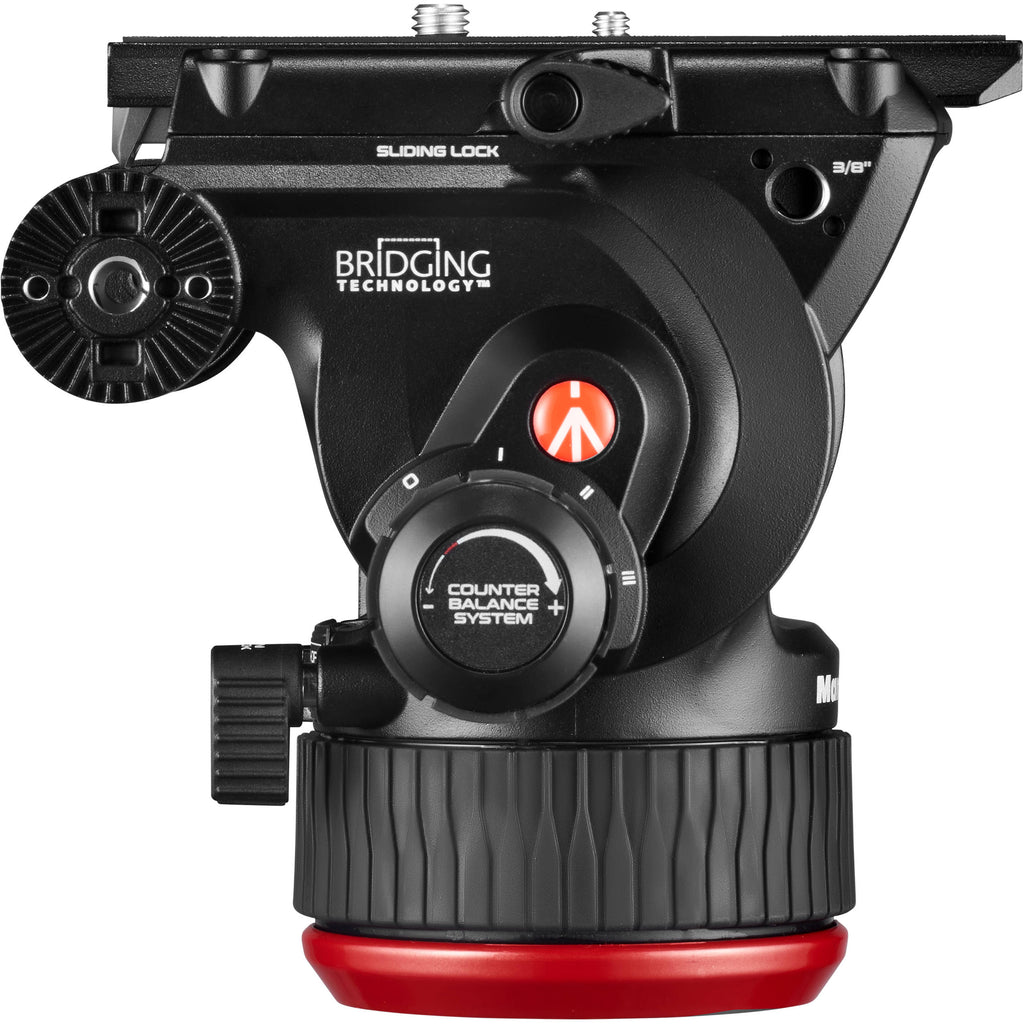

Manfrotto 504X Fluid Video Head with Flat Base The 504X Fluid Video Head with Flat Base from Manfrotto features an open bridge design that provides a stable, smooth performance while reducing weight. The head's patented bridge technology allows for a wider top surface and longer sliding plate that add stability and balance. The head features a flat base with a 3/8"-16 female mounting thread that allows compatibility with a wide range of tripods, monopods, sliders, jibs, and dollies, and a variety of rigs.
With its ability to support up to 26.5 lb, the 504X can be used with a variety of video and photo cameras and rigs. The pan and tilt counterbalance system includes four presets from 0 to 4.8 to 9.7 to 14.3 lb, enabling proper balance no matter what the camera's size or weight.

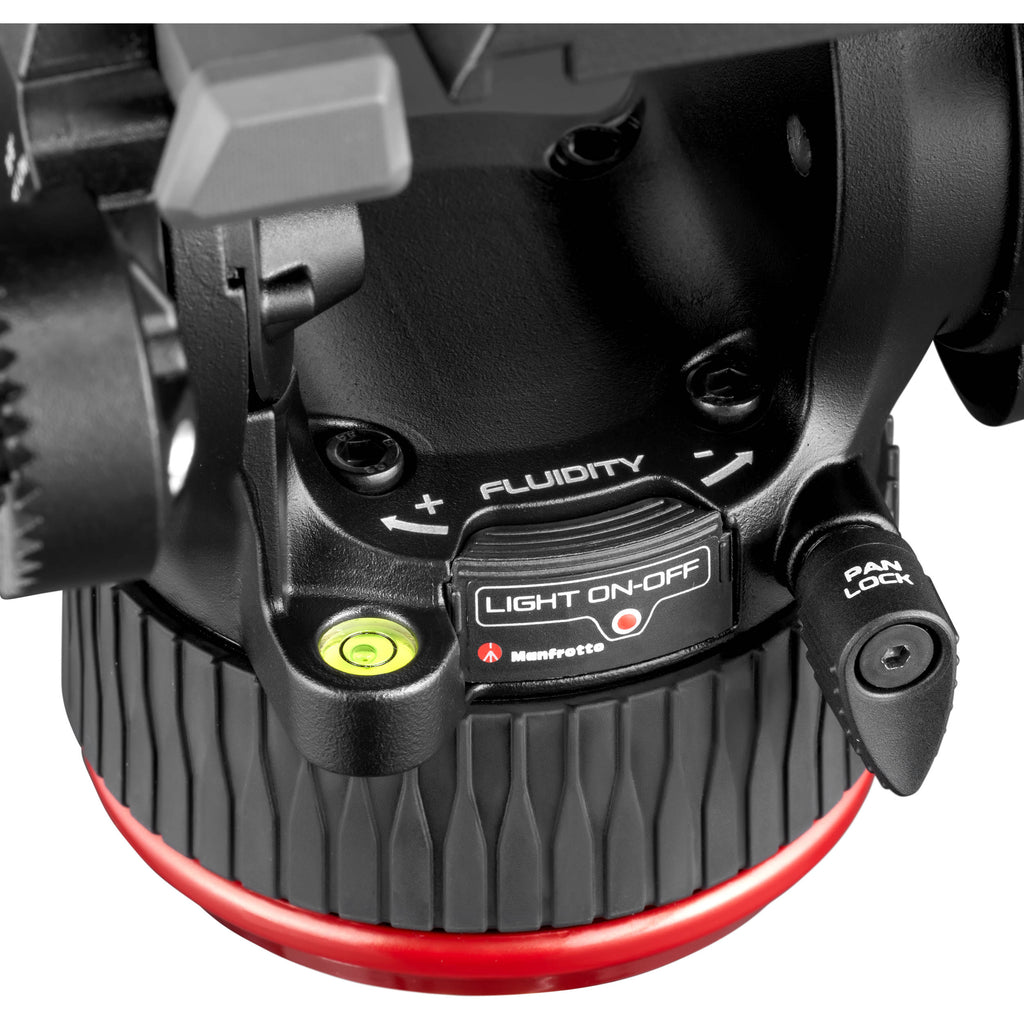

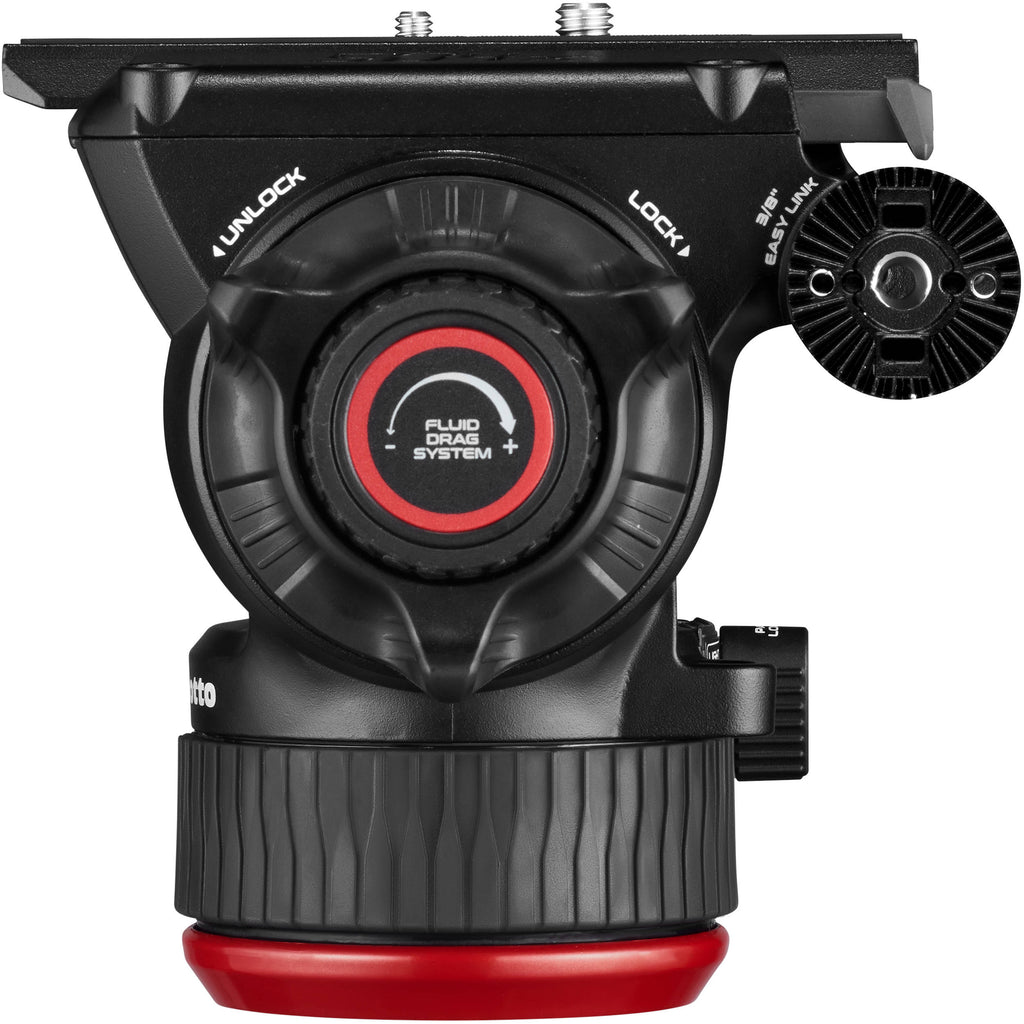

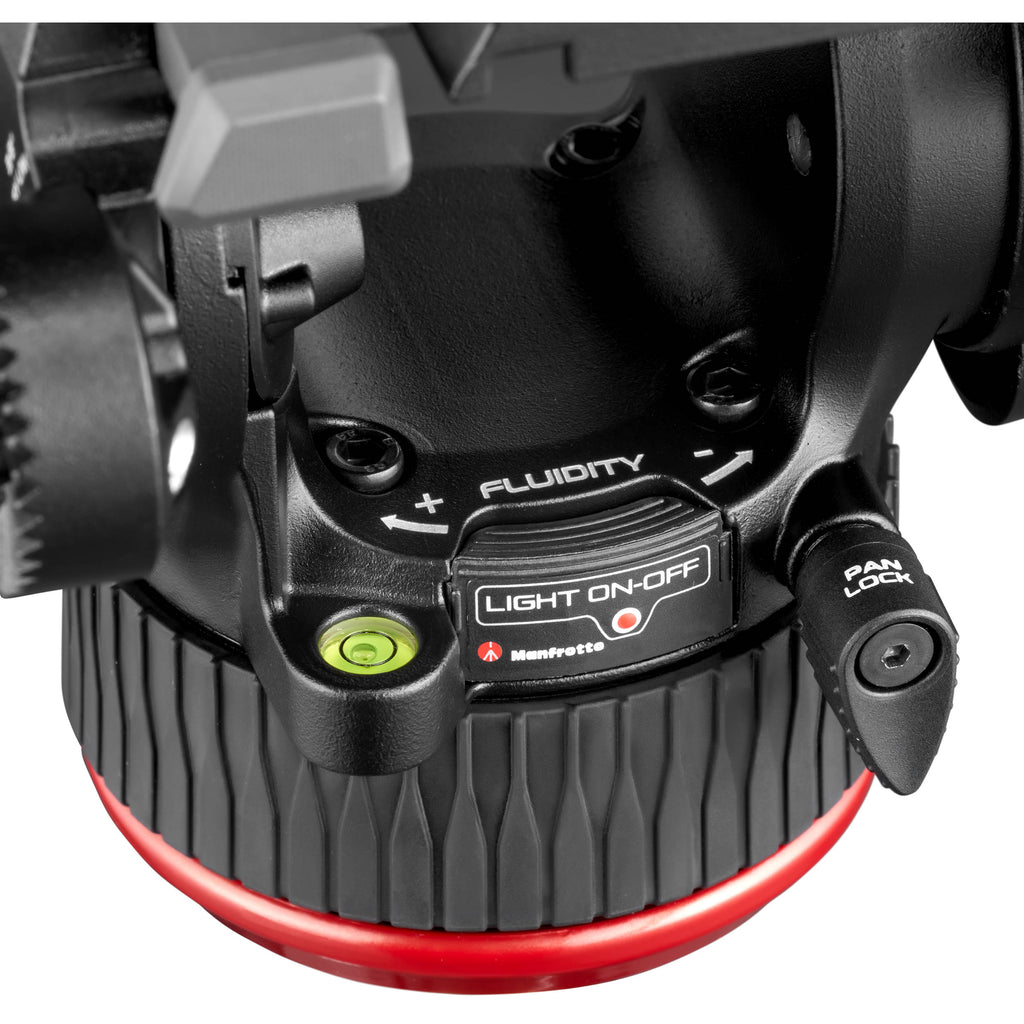

At the same time, variable friction components with clearly marked degree scales and vibration-free movement bring new levels of fine-tuning to your tilts and pans. A leveling bubble keeps horizons from tilting, even in the dark, while independent disc-brake locks make sure the head stays secure when at rest.

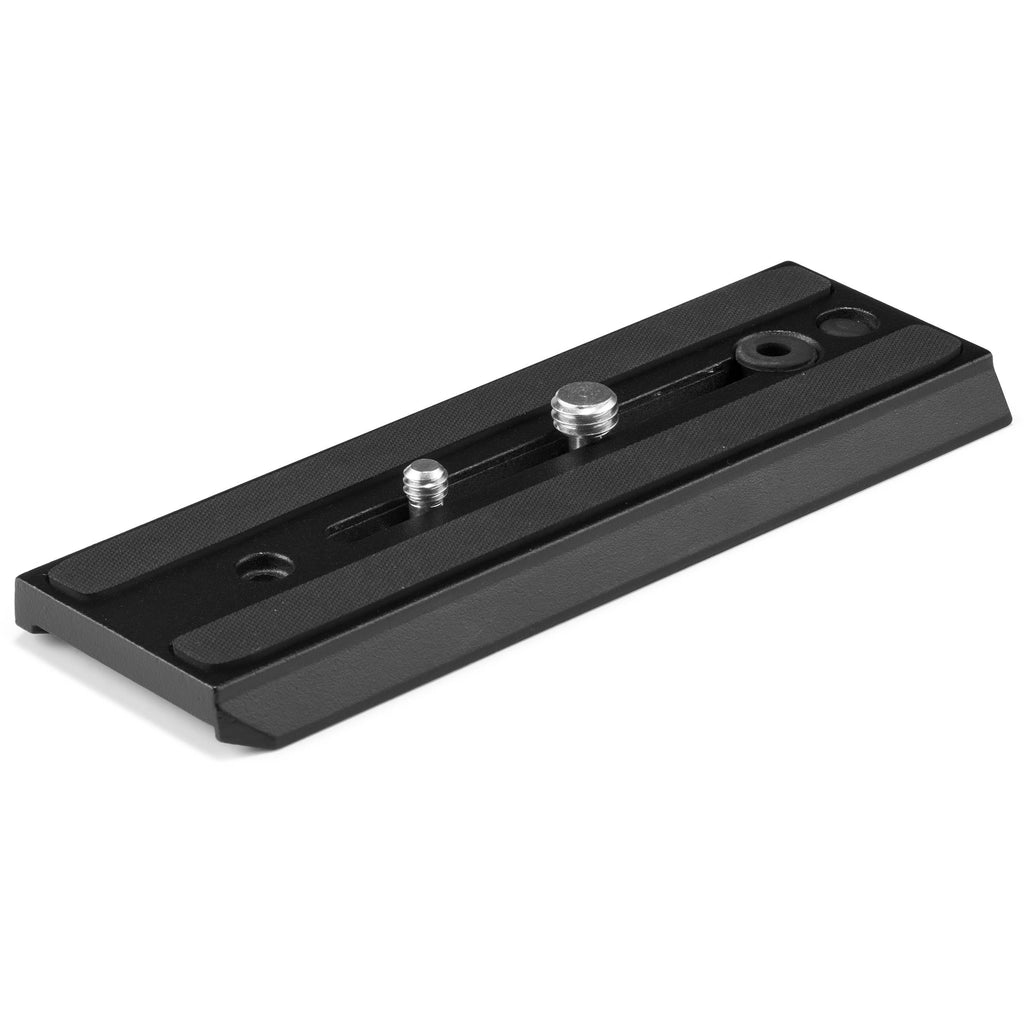

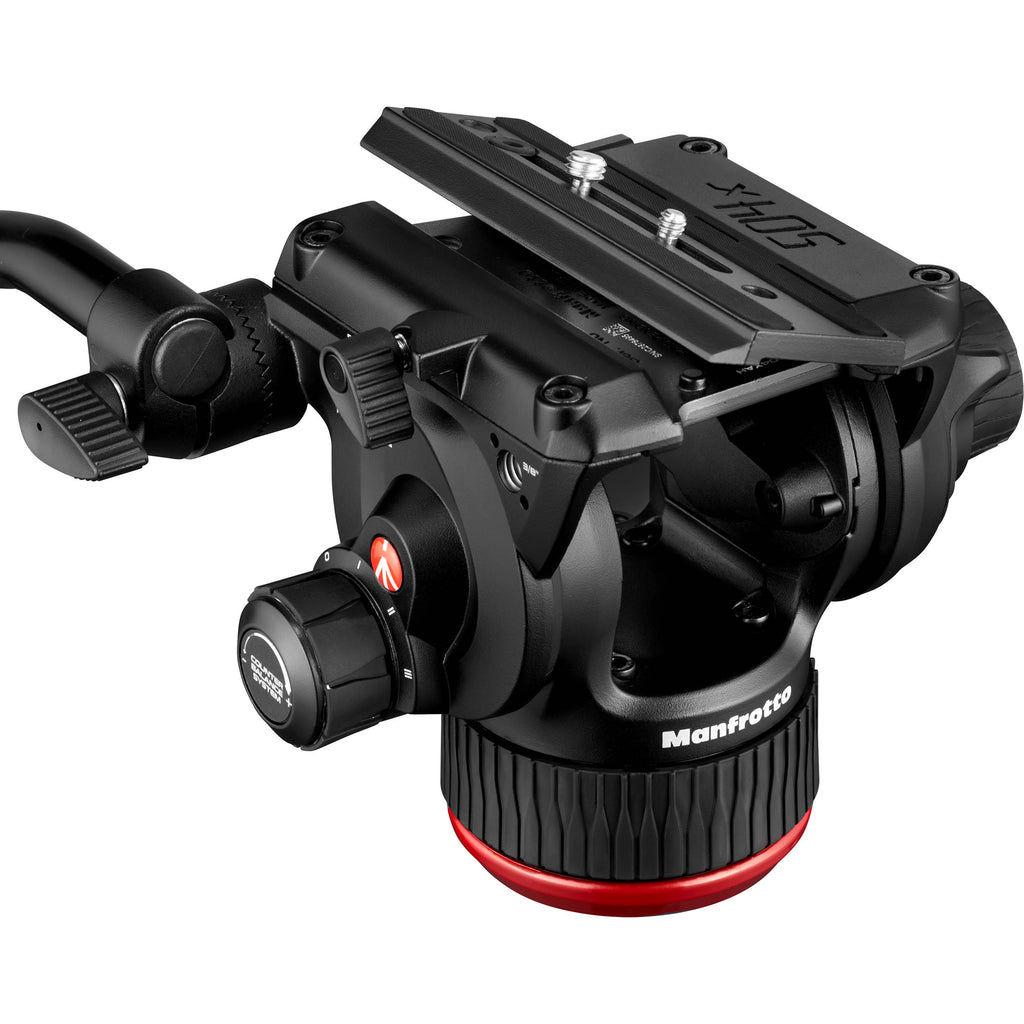

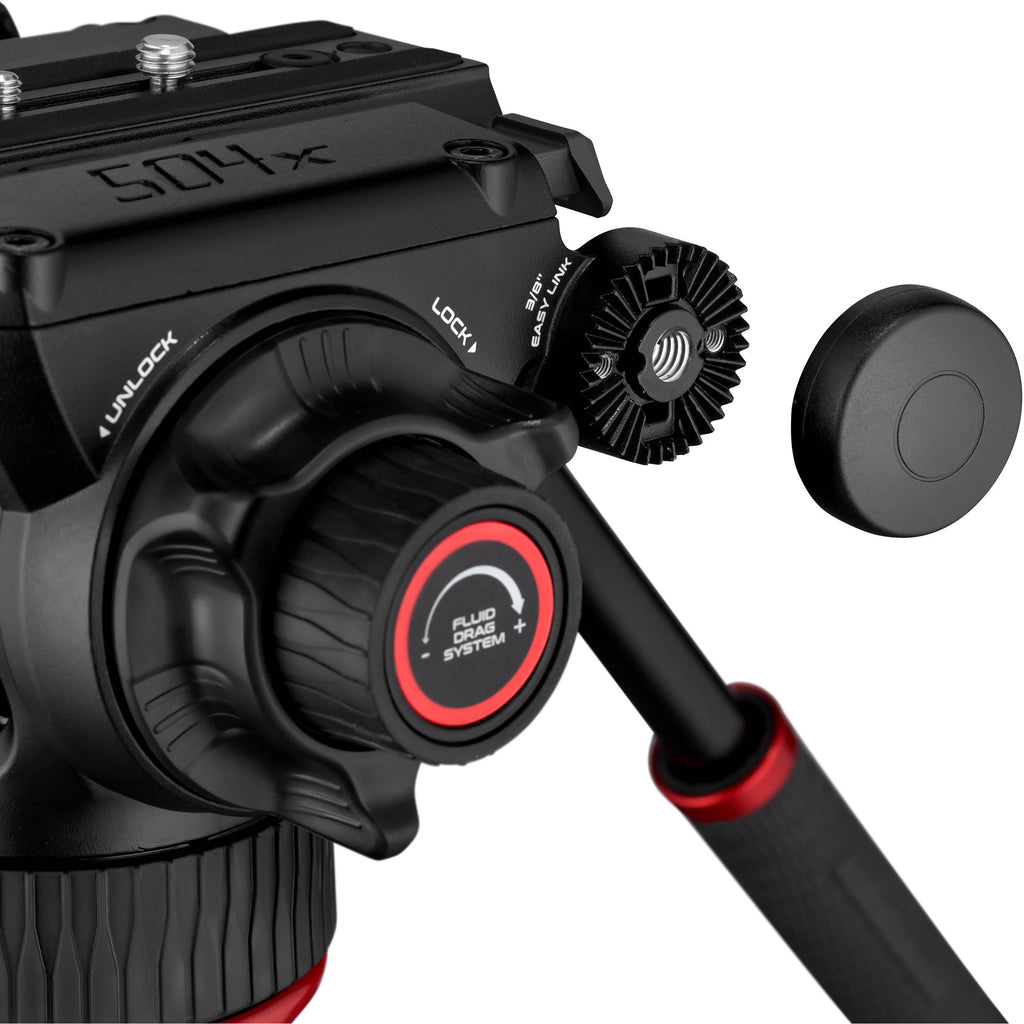

Whether you're using a pro camcorder or an accessorized DSLR, the 504X provides a 504PLONGR-1 sliding quick release plate with 1/4"-20 and 3/8"-16 threads to balance the camera properly on your rig. The head is made from durable aluminum and includes a pan bar that can be attached via rosettes on either the right or left side to help create smooth pan-and-tilt movements.

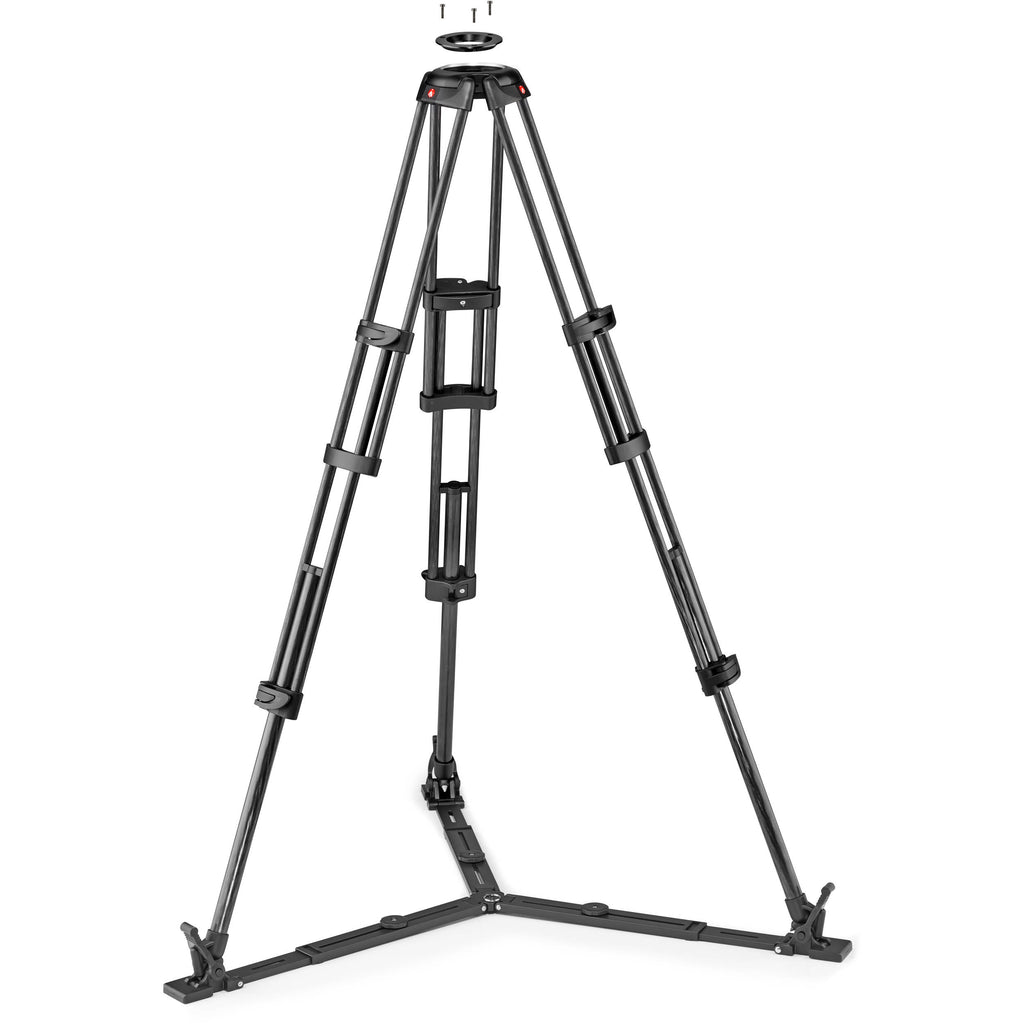

The Manfrotto Carbon Fiber Twin Leg Video Tripod Legs with Ground Spreader is suitable for use on flat, smooth surfaces, and it features carbon fiber tubes that are both strong and lightweight while being corrosion resistant. The legs incorporate a 100mm half bowl and include a 75mm adapter ring, so you can use them with heads that have either a 100 or 75mm half ball. The legs support up to 44.1 pounds, which allows you to mount an appropriately sized fluid head, camera, and accessories without straining the capacity of the legs.
With the included ground spreader attached the height of the legs can be adjusted from just over a foot to over 5 feet high, and the legs collapse to under 28 inches in length for transport and storage. Removing the spreader reveals the dual spiked feet, which are useful for soft surfaces such as gravel, dirt, or sand. The legs weigh a mere 7.21 pounds, making them easy to take almost anywhere you can go.
The integrated lever locks are strong, durable, and increase the torsional stability of the legs. The included adapter ring is removable and attaches with three mounting screws. Attaching the adapter converts the 100mm bowl into a 75mm bowl. The ground spreader is well suited for use on smooth and flat surfaces, and securely attach to the tripod's dual spiked feet. UPC: 719821433989| Camera Plate Features | Quick Release, Sliding Balance Plate |
| Camera Plate Type | 504PLONG |
| Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
| Base Mount | 3/8"-16 Female |
| Drag Control | Tilt: Continuous Pan: Continuous |
| Drag Type | Fluid |
| Vertical Tilt | None |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Material | Aluminum |
| Load Capacity | 26.46 lb / 12 kg |
| Counter Balance | Incremental 4-Step Plus 0 (0 to 14.3 lb / ) |
| Bubble Level | 1 |
| Dimensions | 5.86" / 14.88 cm |
| Weight | 4.41 lb / 2 kg |
| Package Weight | 6.085 lb |
| Box Dimensions (LxWxH) | 14.5 x 9.8 x 8" |
| Head Mount Type | 100 mm Bowl |
| Load Capacity | 44.1 lb / 20.00 kg |
| Maximum Working Height | 62.20" / 158 cm (with Spreader) |
| Minimum Working Height | 13.19" / 33.5 cm (with Spreader) |
| Folded Length | 27.17" / 69 cm |
| Materials | Carbon Fiber |
| Weight | 7.21 lb / 3.27 kg |
| Leg Lock Type | Lever Lock |
| Leg Positions | Continuously Adjustable |
| Independent Leg Spread | Yes |
| Leg Sections | 3 |
| Feet Features | Dual Spiked |
| Spreader | Ground (Included) |
| Package Weight | 9.2 lb |
| Box Dimensions (LxWxH) | 31 x 9 x 8" |
In the Box
- Manfrotto 504X Fluid Video Head with Flat Base
- Pan Handle
- 504PLONGR-1 Quick Release Plate
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
- Manfrotto Carbon Fiber Twin Leg Video Tripod Legs with Ground Spreader (100/75mm Bowl)
- 100 to 75mm Adapter Ring
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
- Leveling Ball
- Carry Bag
