Manfrotto 504X Fluid Video Head & 645 FAST Aluminum Tripod with Mid-Level Spreader

Fluid Head with 26.5 lb Maximum Load

645 Aluminum Tripod, Mid-Level Spreader

Leveling Ball, Carry Bag

4-Step Counterbalance System

Manfrotto 504X Fluid Video Head FAST Tripods - Lifestyle Manfrotto 504X Fluid Video Head Tutorial

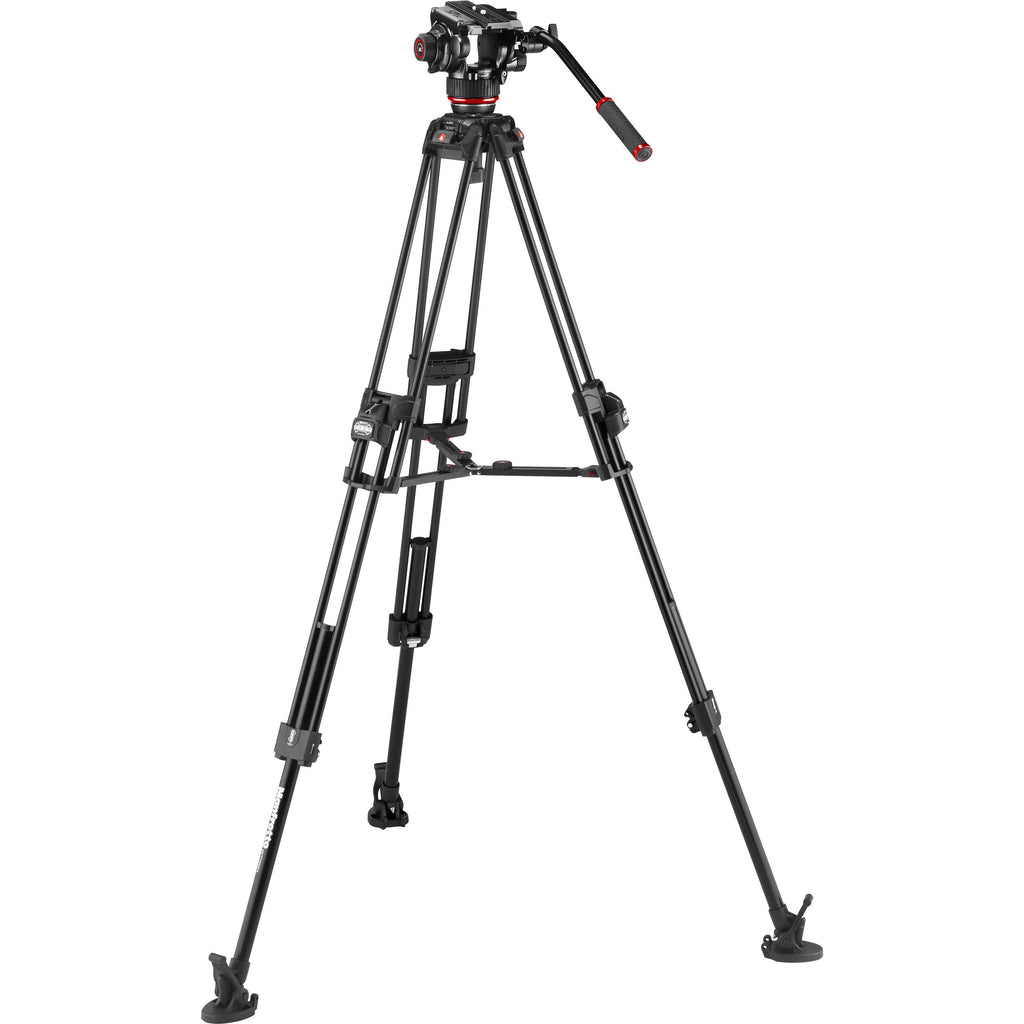

Support your camera rig with the 504X Fluid Video Head with 645 FAST Aluminum Tripod from Manfrotto . The system features the 504X fluid tripod head, the 645 FAST aluminum tripod, a mid-level spreader, a leveling ball to adapt the head to the tripod, and a carry bag.

The head features a 26.5 lb maximum load, a pan bar, a quick release plate, a counterbalance system with four presets, and its open bridge design that provides a stable, smooth performance and reduces weight. Its flat base with a 3/8"-16 female mounting thread allows compatibility with a wide range of tripods, monopods, sliders, jibs, and dollies, and a variety of rigs.

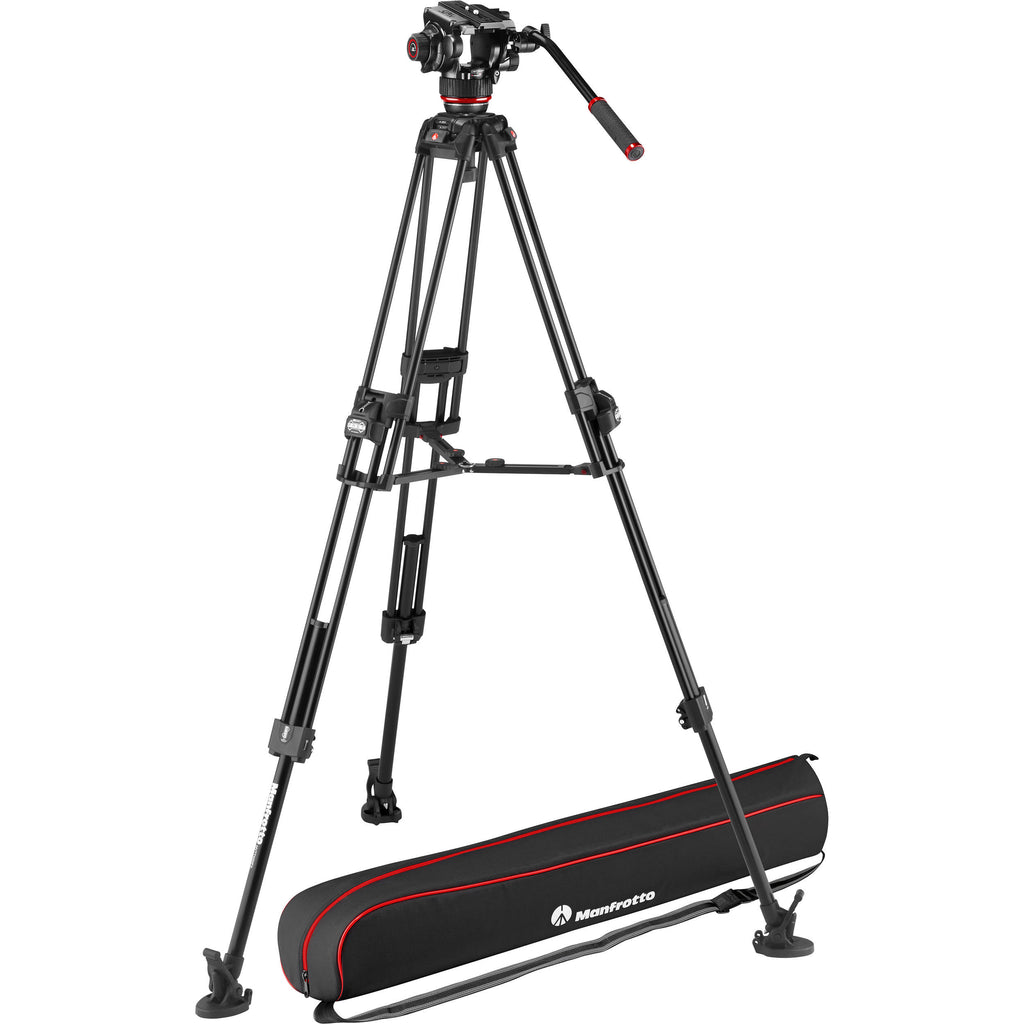

The twin-leg aluminum tripod provides a 55 lb maximum load, a mid-level spreader for added stability, and a 75/100mm ball head mount. The 504X head mounts onto the 645 tripod using the included leveling ball. A carry bag is included to store and transport the entire system.

Manfrotto 504X Fluid Video Head with Flat Base

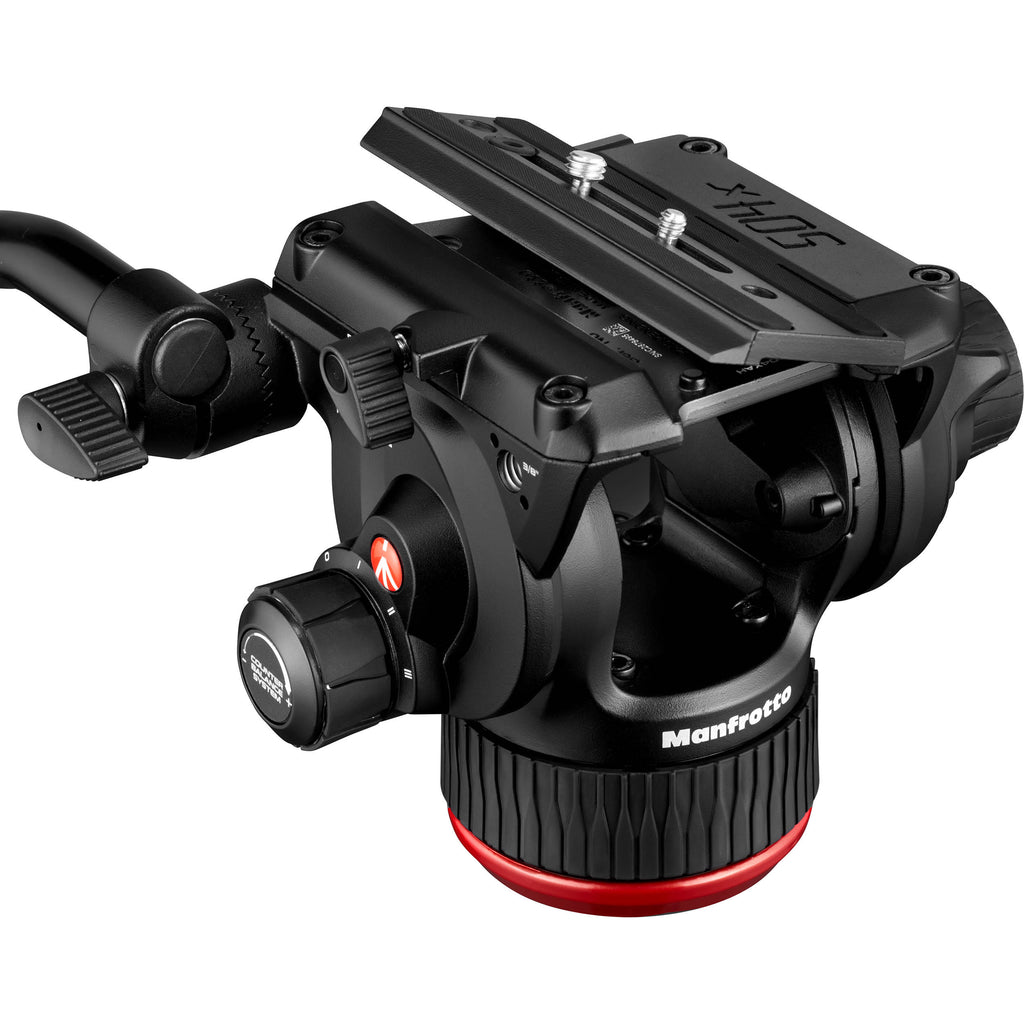

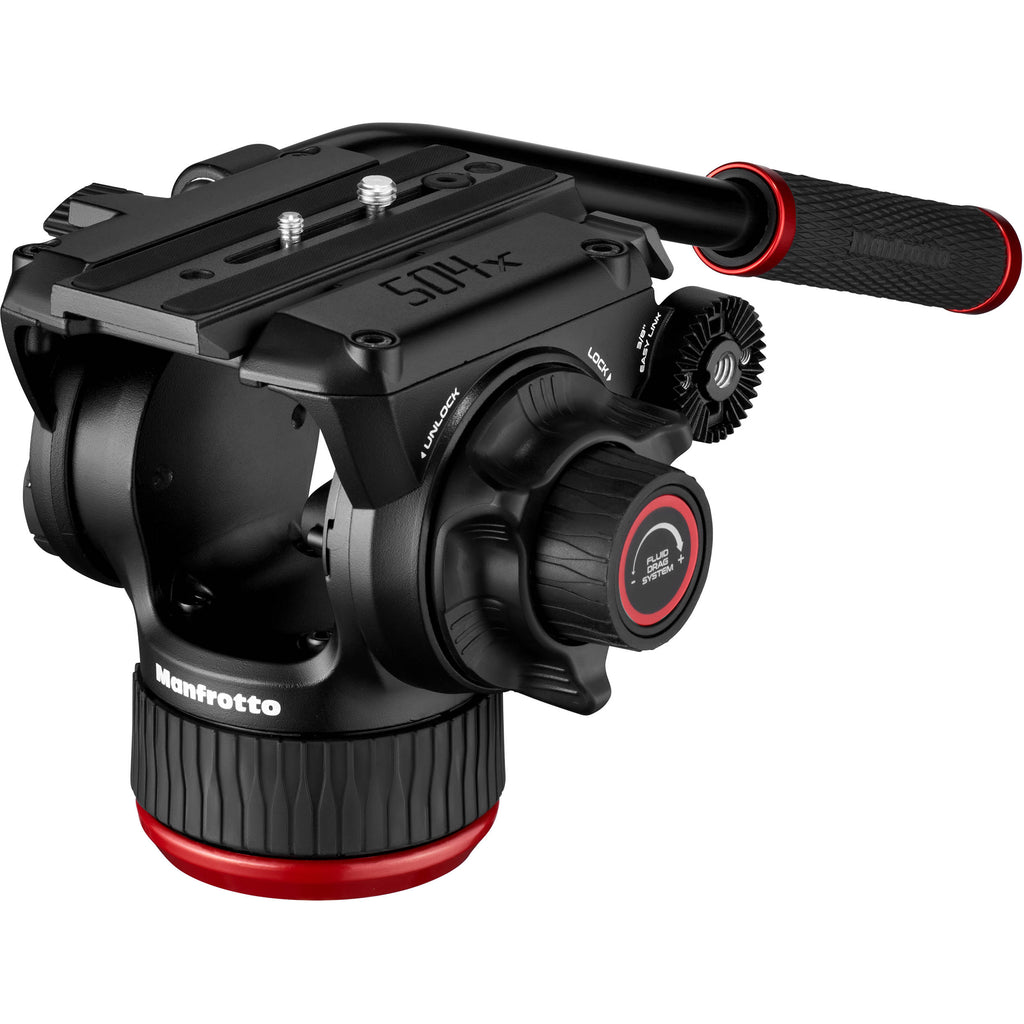

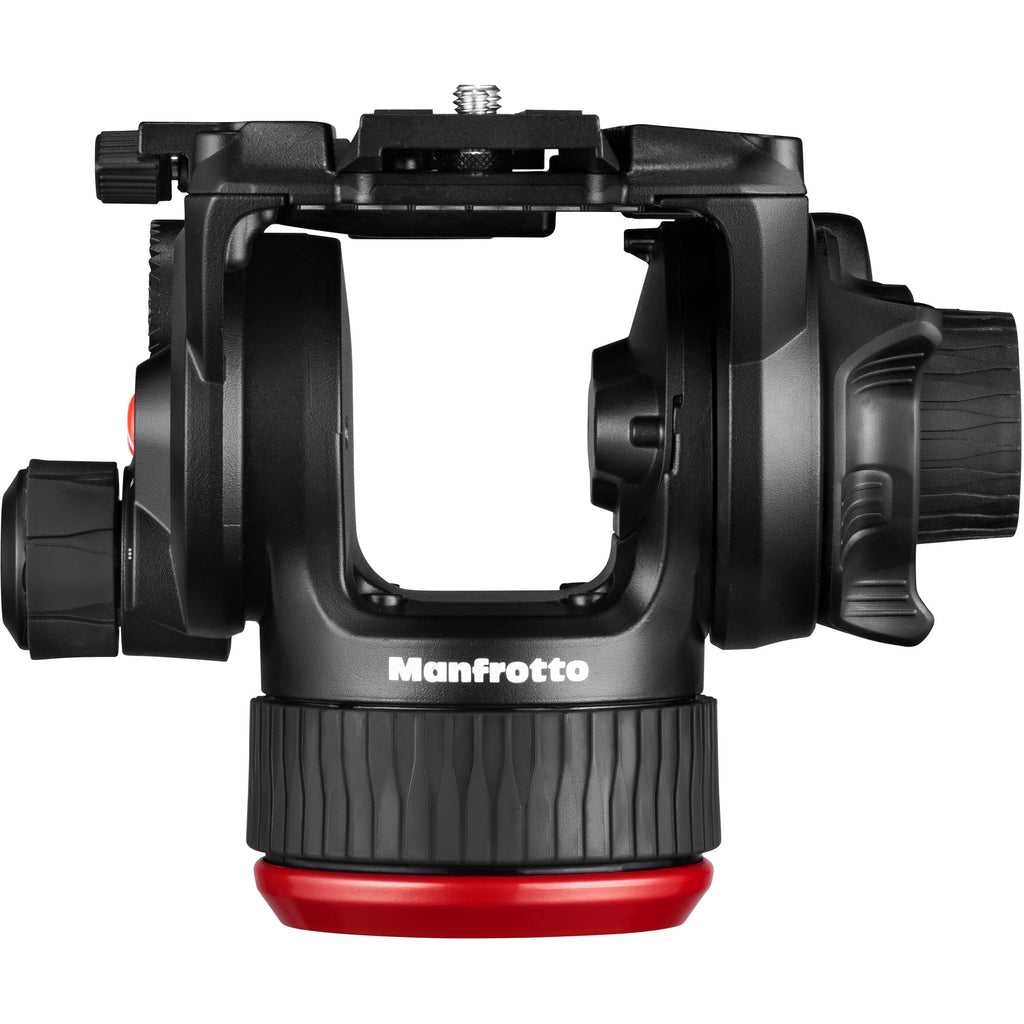

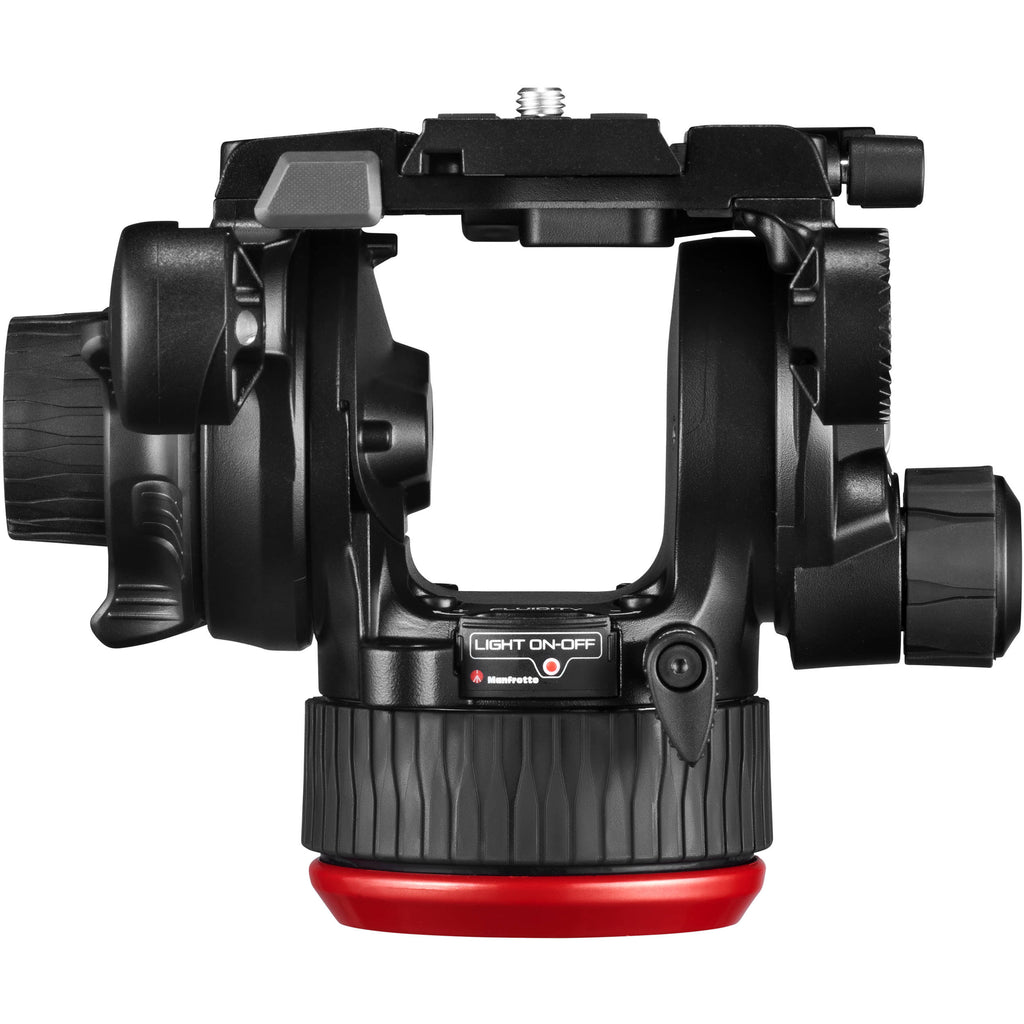

The 504X Fluid Video Head with Flat Base from Manfrotto features an open bridge design that provides a stable, smooth performance while reducing weight. The head's patented bridge technology allows for a wider top surface and longer sliding plate that add stability and balance. The head features a flat base with a 3/8"-16 female mounting thread that allows compatibility with a wide range of tripods, monopods, sliders, jibs, and dollies, and a variety of rigs.

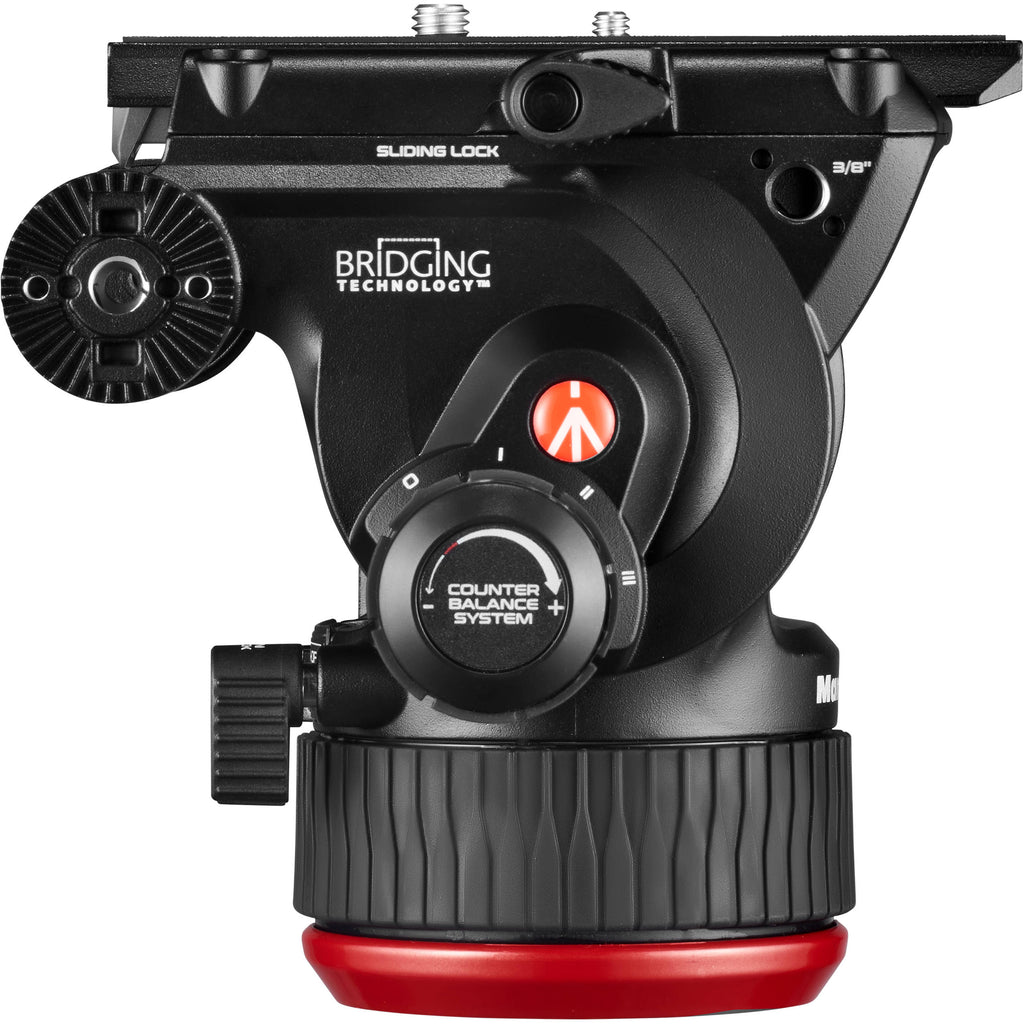

With its ability to support up to 26.5 lb, the 504X can be used with a variety of video and photo cameras and rigs. The pan and tilt counterbalance system includes four presets from 0 to 4.8 to 9.7 to 14.3 lb, enabling proper balance no matter what the camera's size or weight.

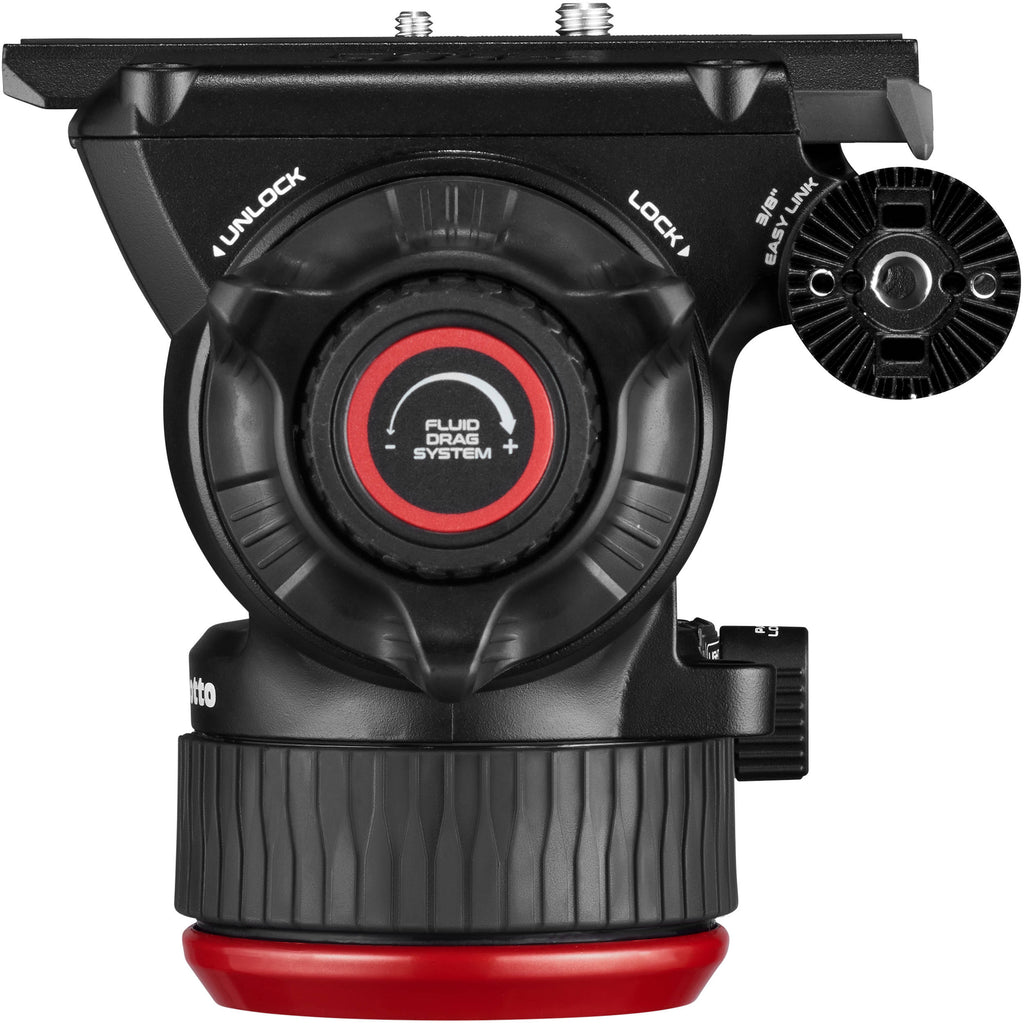

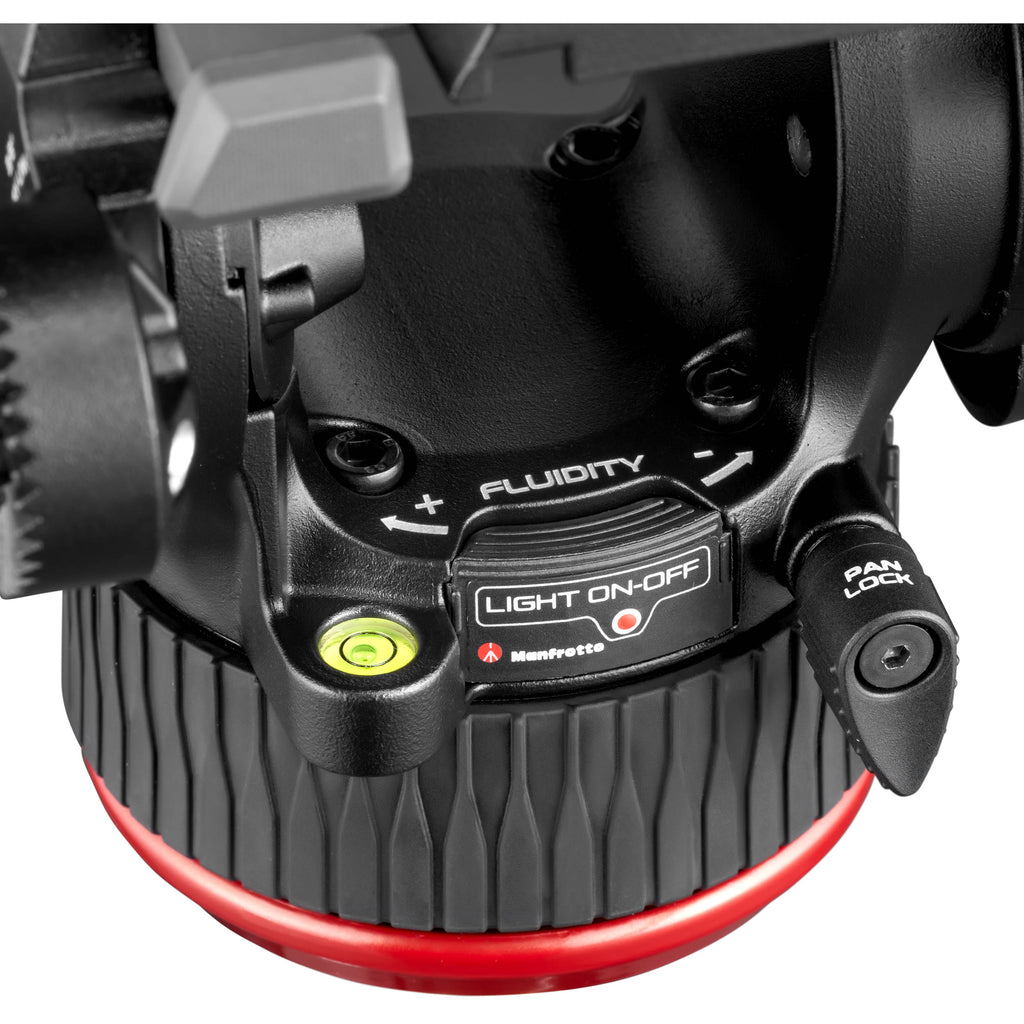

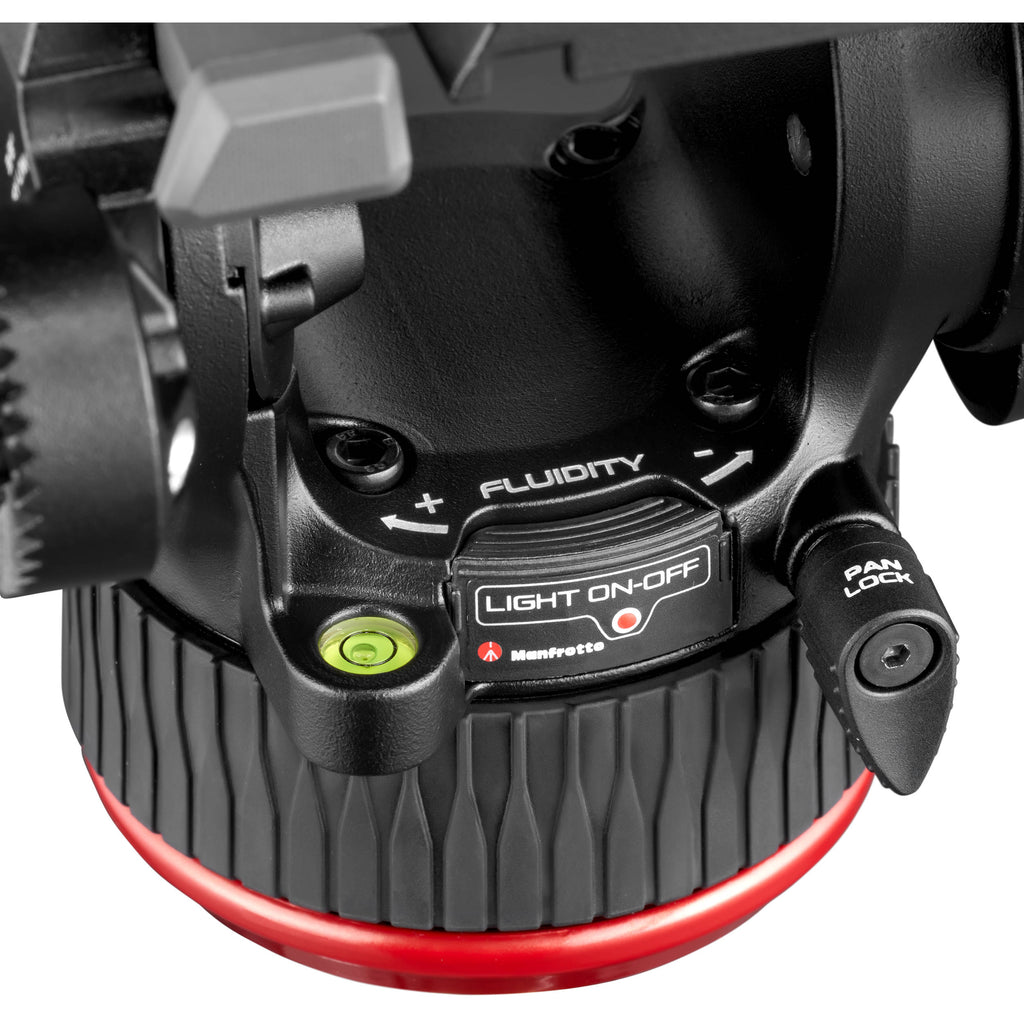

At the same time, variable friction components with clearly marked degree scales and vibration-free movement bring new levels of fine-tuning to your tilts and pans. A leveling bubble keeps horizons from tilting, even in the dark, while independent disc-brake locks make sure the head stays secure when at rest.

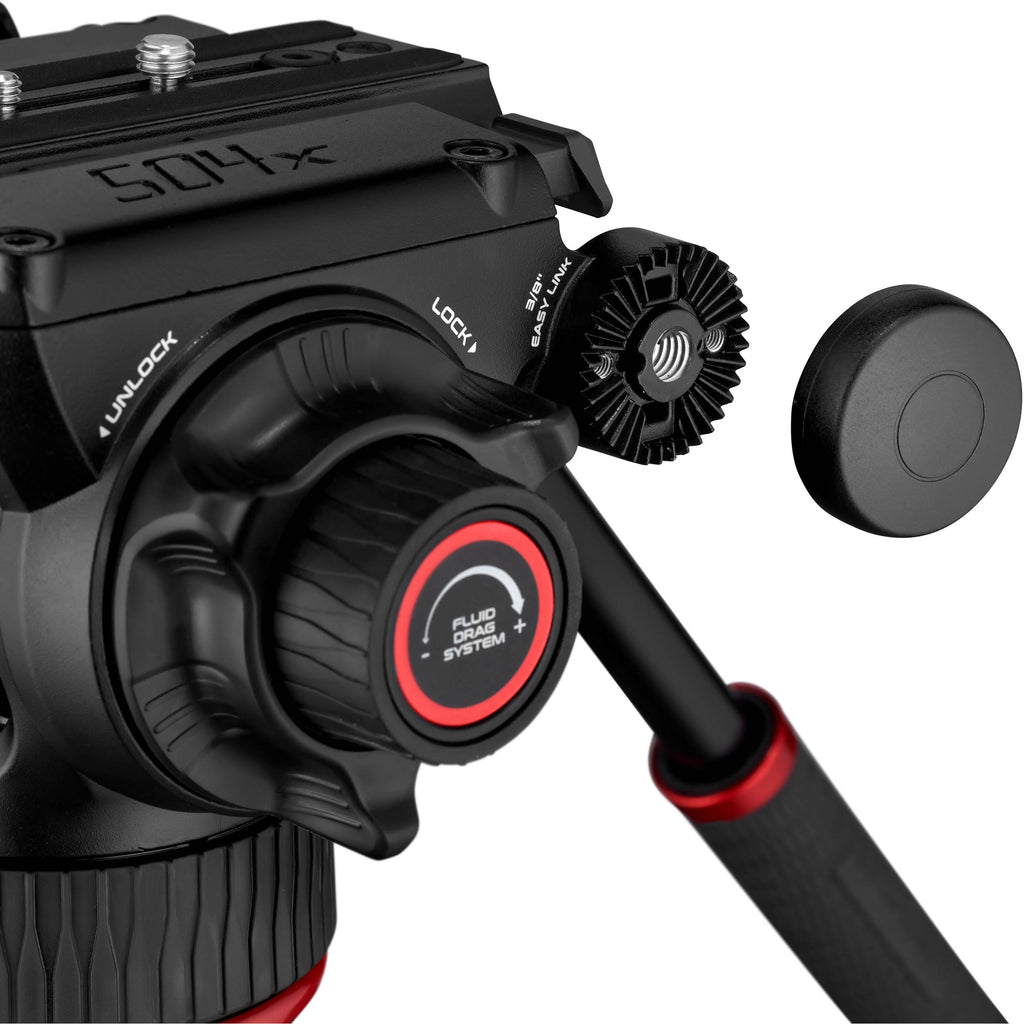

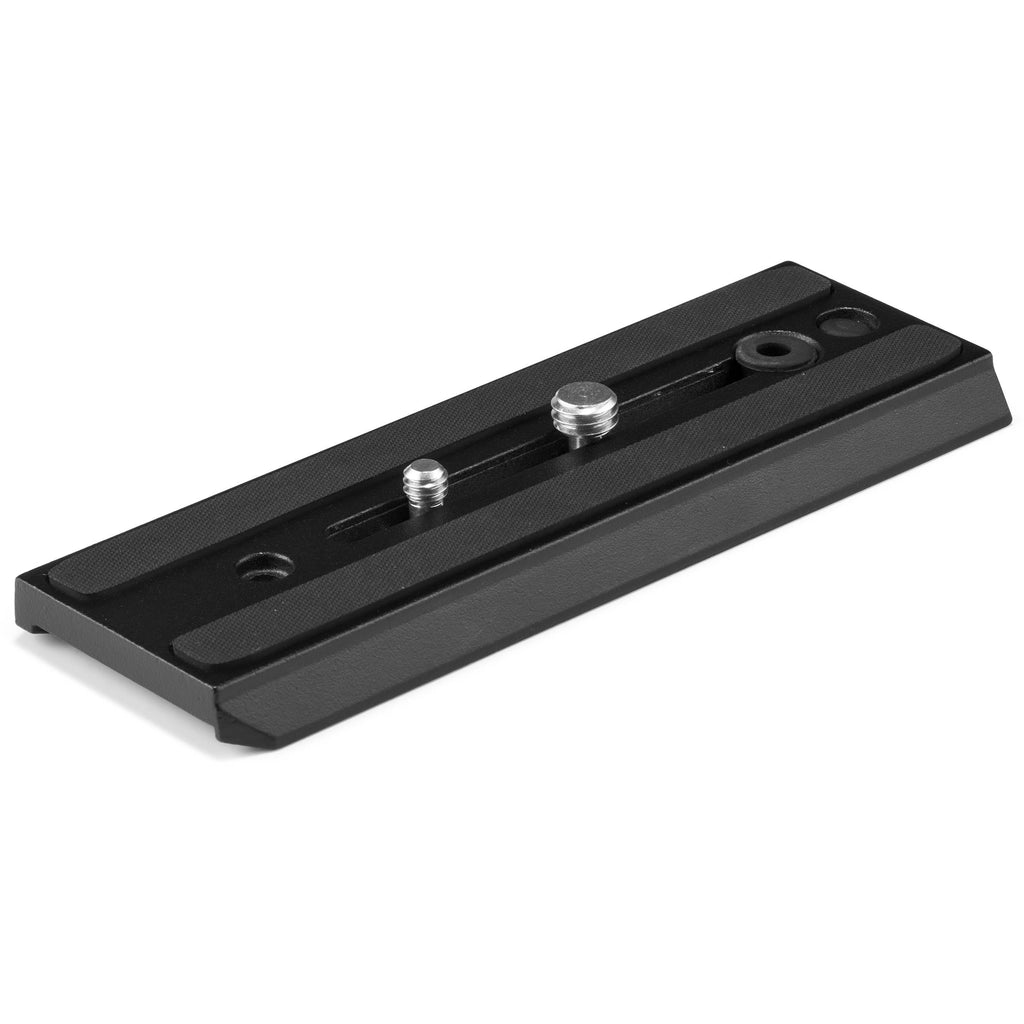

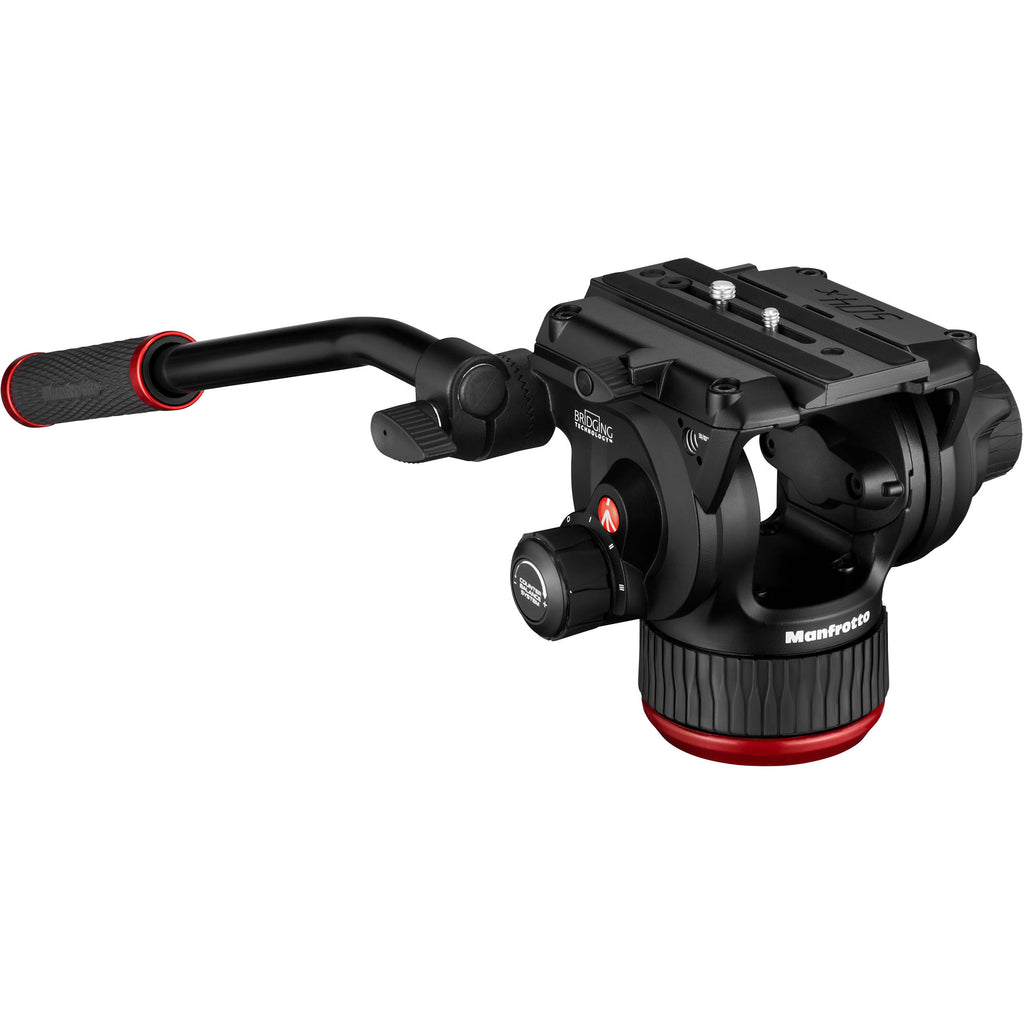

Whether you're using a pro camcorder or an accessorized DSLR, the 504X provides a 504PLONGR-1 sliding quick release plate with 1/4"-20 and 3/8"-16 threads to balance the camera properly on your rig. The head is made from durable aluminum and includes a pan bar that can be attached via rosettes on either the right or left side to help create smooth pan-and-tilt movements.

Quick Features Fluid drag system for precise, smooth movements Wide top surface and long sliding plate for extra stability and balance while using video or photo equipment Four-step counterbalance system ensures quick setup and optimal performance Rigid structure for maximum precision and improved responsiveness Lightweight aluminum for optimum balance of strength and size UPC: 719821444824 Manfrotto 645 FAST Twin Leg Video Tripod with Ultra L-Lock Mechanism (Aluminum)

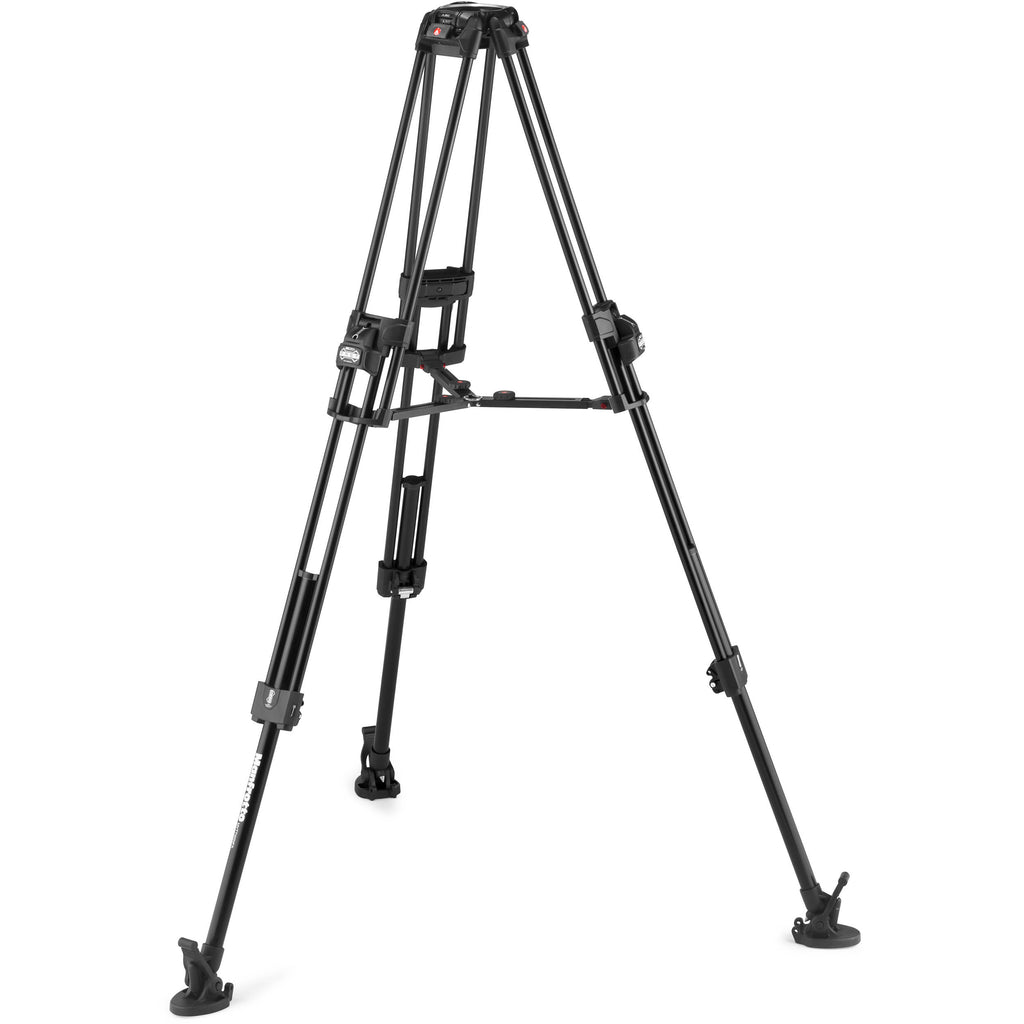

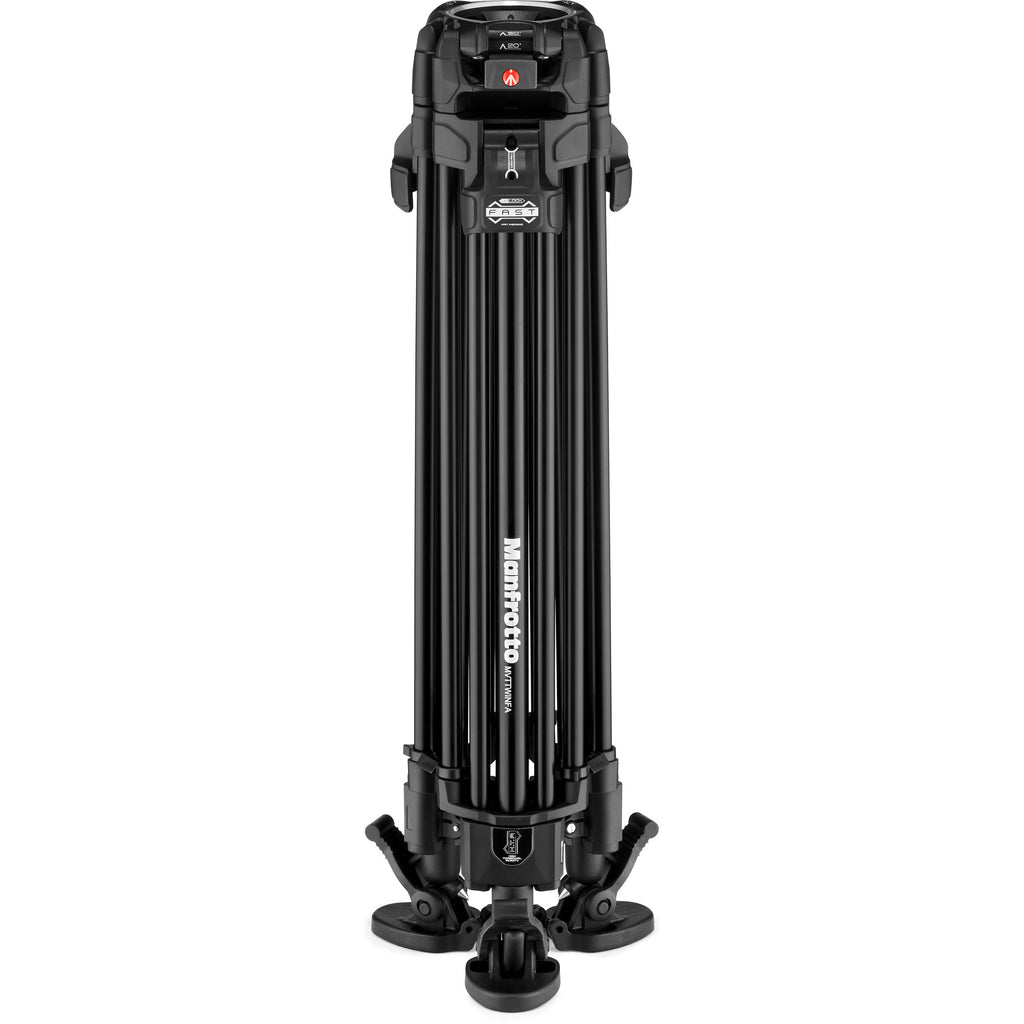

The Manfrotto 645 FAST Twin Leg Video Tripod with Ultra L-Lock Mechanism is a two-stage aluminum tripod with a 100mm bowl and a single leg lock mechanism for each leg. A 100 to 75mm bowl adapter is included, so you get the flexibility to use 100 or 75mm video heads. The tripod features twin spiked feet with removable rubber overshoes, allowing for use on various terrain as well as on flat, smooth surfaces. It supports up to 55 pounds and has a maximum working height of 61.8", a minimum height of 10.6", and a folded length of 28.7".

The tripod legs are selectable between free movement or having three locking leg positions so you can use the legs without a spreader. The optional Manfrotto MVASPR2N1 2-in-1 spreader can be attached if desired.

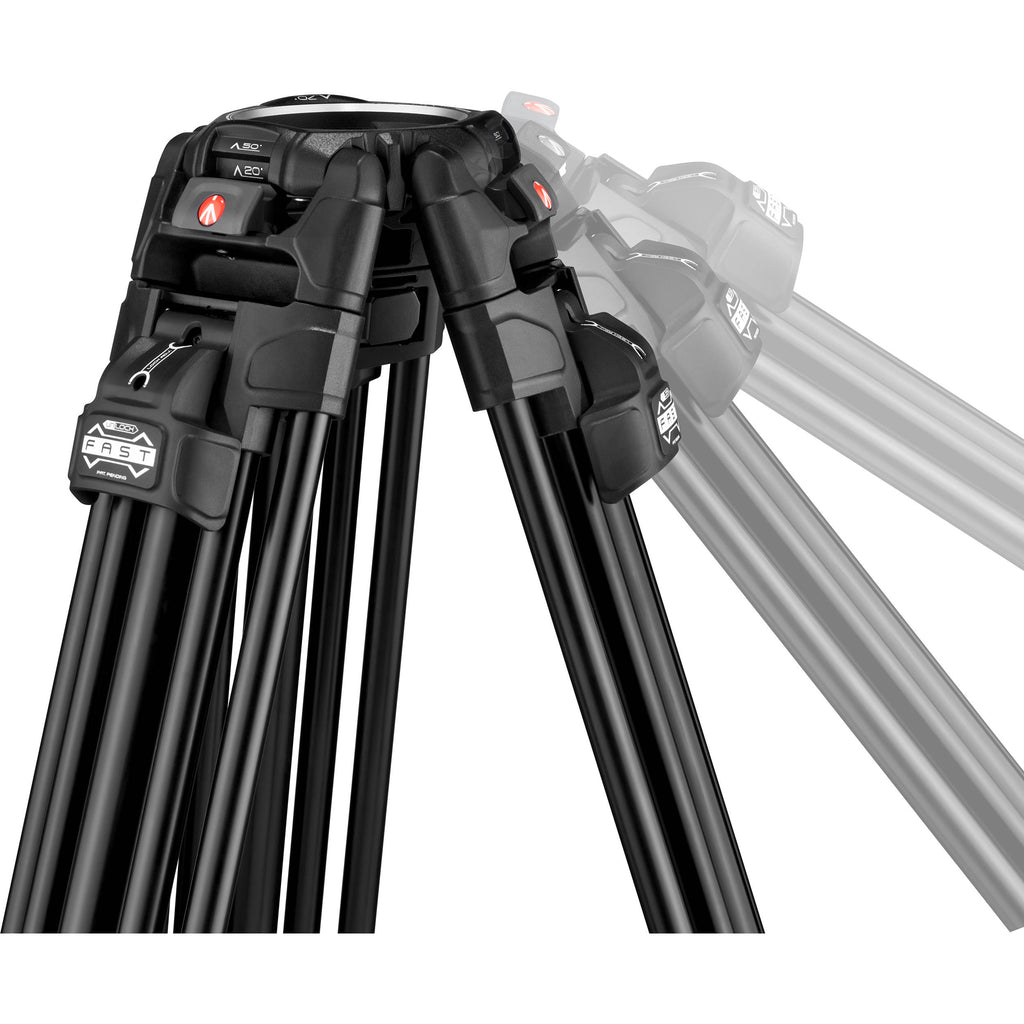

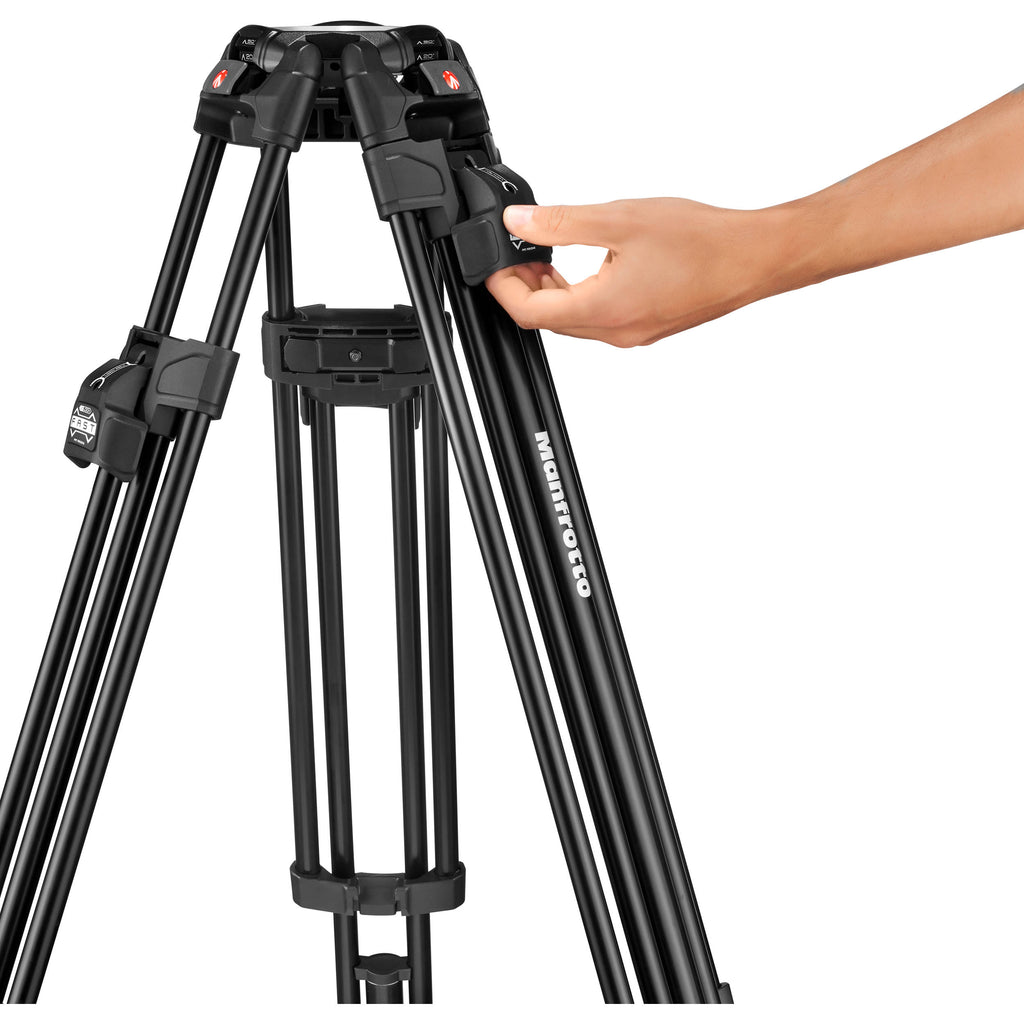

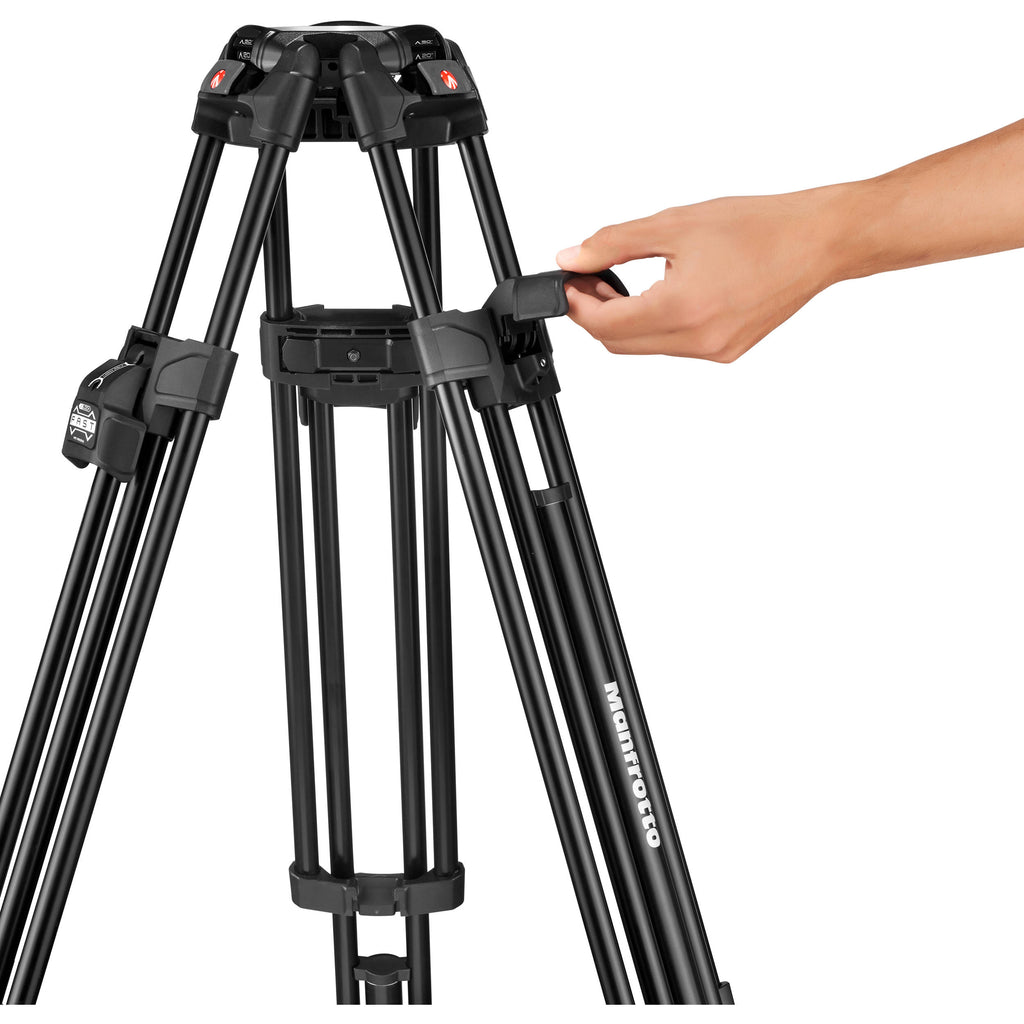

Leg Locks The legs feature Manfrotto's Ultra-L Lock for the Twin FAST tripod legs. This allows you to lock and unlock both leg stages using only one locking lever located at the top of each leg, so you don't have to bend down to unlock the legs. Spreader or Spreaderless The legs incorporate a locking mechanism that enables the legs to move completely freely, suitable when working with a spreader, or to lock at one of three angles, 70, 50, and 20°, which is suitable for use when working without a spreader. Rubber Feet You can use the included rubber feet to protect delicate surfaces from the tripod's foot spikes. 100 to 75mm Bowl Adapter The legs feature a 100mm bowl and include a 100 to 75mm bowl adapter. This provides the flexibility to use a video head with either a 100 or 75mm leveling ball. UPC: 719821446460

Camera Plate Features	Quick Release, Sliding Balance Plate
Camera Plate Type	504PLONG
Camera Mounting Screw	1 x 1/4"-20 Male 1 x 3/8"-16 Male

Base Mount

3/8"-16 Female

Drag Control	Tilt: Continuous Pan: Continuous
Drag Type	Fluid
Vertical Tilt	None
Panning Range	360°
Independent Pan Lock	Yes
Independent Tilt Lock	Yes

Material	Aluminum
Load Capacity	26.46 lb / 12 kg
Counter Balance	Incremental 4-Step Plus 0 (0 to 14.3 lb / )
Bubble Level	1
Dimensions	5.86" / 14.88 cm
Weight	4.41 lb / 2 kg

Package Weight	6.085 lb
Box Dimensions (LxWxH)	14.5 x 9.8 x 8"

Head Mount Type	100 mm Bowl
Load Capacity	55 lb / 24.95 kg
Maximum Working Height	61.8" / 156.97 cm
Minimum Working Height	10.6" / 26.92 cm
Folded Length	28.7" / 72.90 cm
Materials	Aluminum
Weight	8.6 lb / 3.90 kg

Leg Lock Type	Lever Lock
Leg Positions	Locking 3 Positions and Continuously Adjustable
Independent Leg Spread	Yes
Leg Sections	3
Leg Diameter	0.63" / 16 mm 0.98" / 25 mm
Feet Features	Rubber, Dual Spiked
Spreader	Mid-Level, Ground (Not Included)

Package Weight	10.925 lb
Box Dimensions (LxWxH)	31.2 x 8.9 x 7.9"
