Magnus FBVH-500 Overview
-
1Description
-
2Flat Base
-
3Fluid Head
-
4Spring-Loaded Counterbalance
-
5Sliding Balance Plate with Snap-In Feature
-
6Balance System
-
7Extendable Pan Bar
-
8Auxiliary Sockets

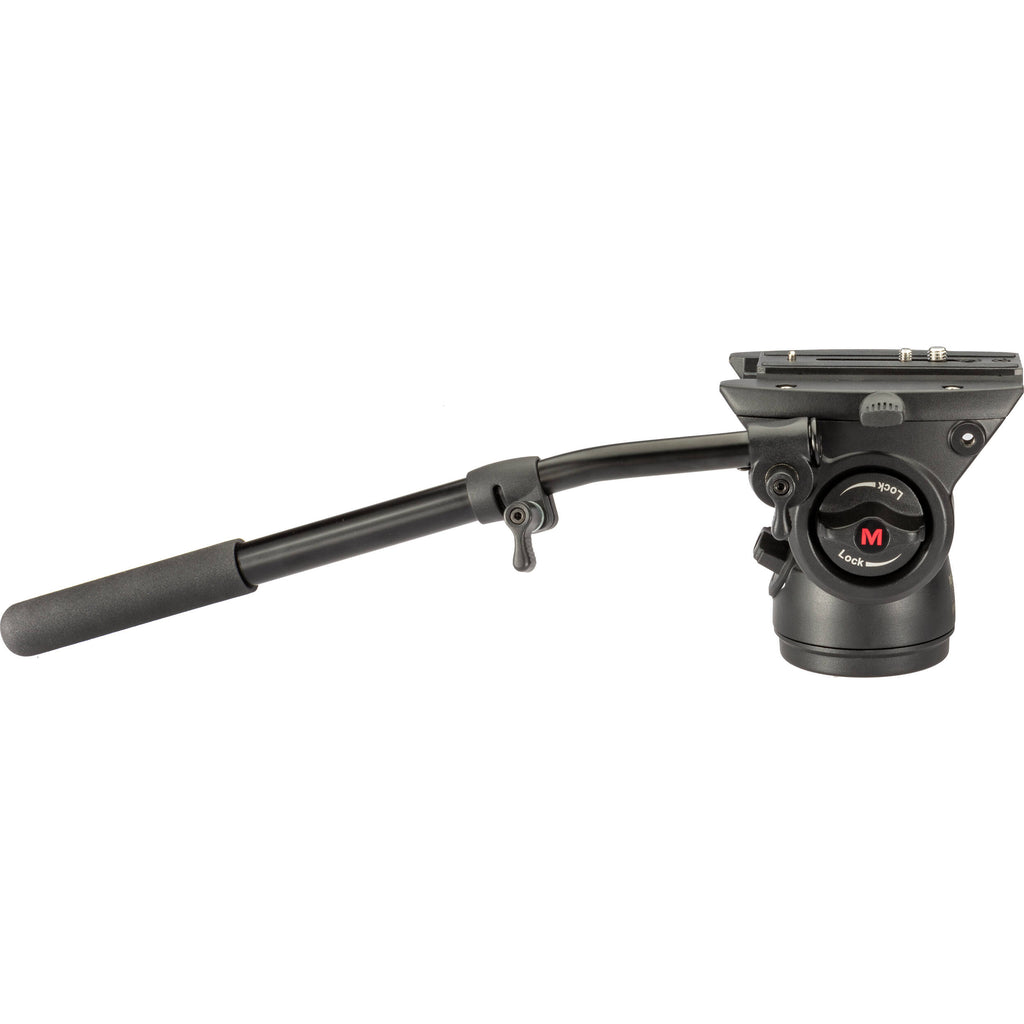

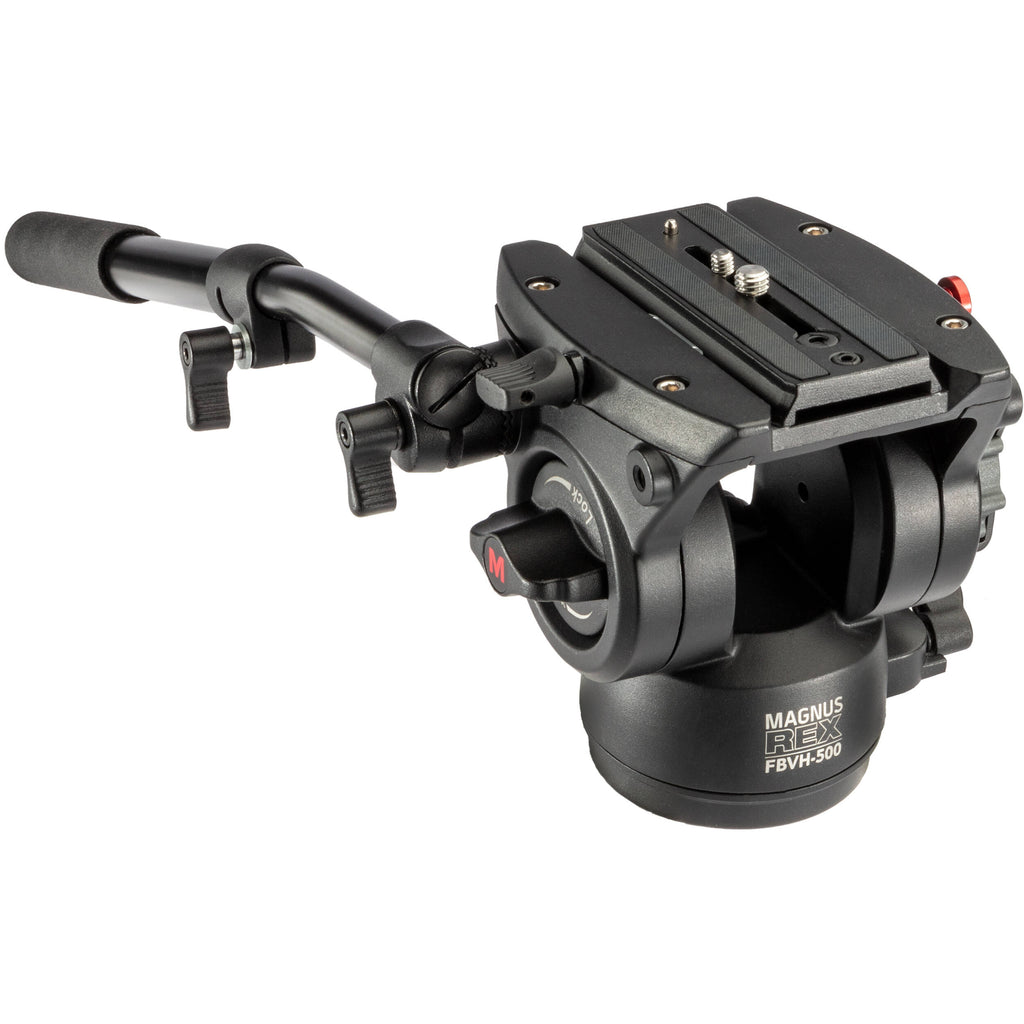

The Magnus FBVH-500 Video Head with Flat Base is designed for shooters using cameras weighing up to 15 lb. It has a flat base that screws onto any standard 3/8"-16 tripod screw and gives you all the features of an advanced video head for performing professional cinematic moves. You can mount the included pan handle to either side of the head so you can create smooth and precise camera motion with either hand. The FBVH-500 head features a spring-loaded counterbalance with a tilt range of 170° (+90 to -80°), and it provides 360° panning rotation with adjustable fluid drag on both the pan and tilt axes.
The sliding QR plate features a snap-in function that allows you to quickly insert it into the head from above for effortless mounting and dismounting of large camera/lens combinations. And the plate's locking feature prevents it from accidentally slipping out of the clamp. The head attaches to a tripod via a 3/8"-16 thread. It also provides both 3/8"16 and 1/4"-20 auxiliary threads to attach accessories such as an articulating arm, LED, or microphone.
The FBVH-500 turns any tripod with a 3/8"-16 mounting screw into a full-featured video head, complete with adjustable pan and tilt drag controls and mounting options for camcorders and DSLR cameras. The head's flat base is compatible with most photo tripods, so you don't have to carry a special video tripod with you to switch from shooting still photography to video.
With pan and tilt drag control, you can dial in the exact amount of resistance for your shot. The FBVH-500's fluid pan and drag adjustment controls deliver uniform and even panning and tilting for smooth camera motion, so your videos will look steady and professional.
Spring-Loaded Counterbalance
The spring-loaded counterbalance produces tension for ultrasmooth tilts with cameras up to 15 lb and helps prevent your camera from tipping over.

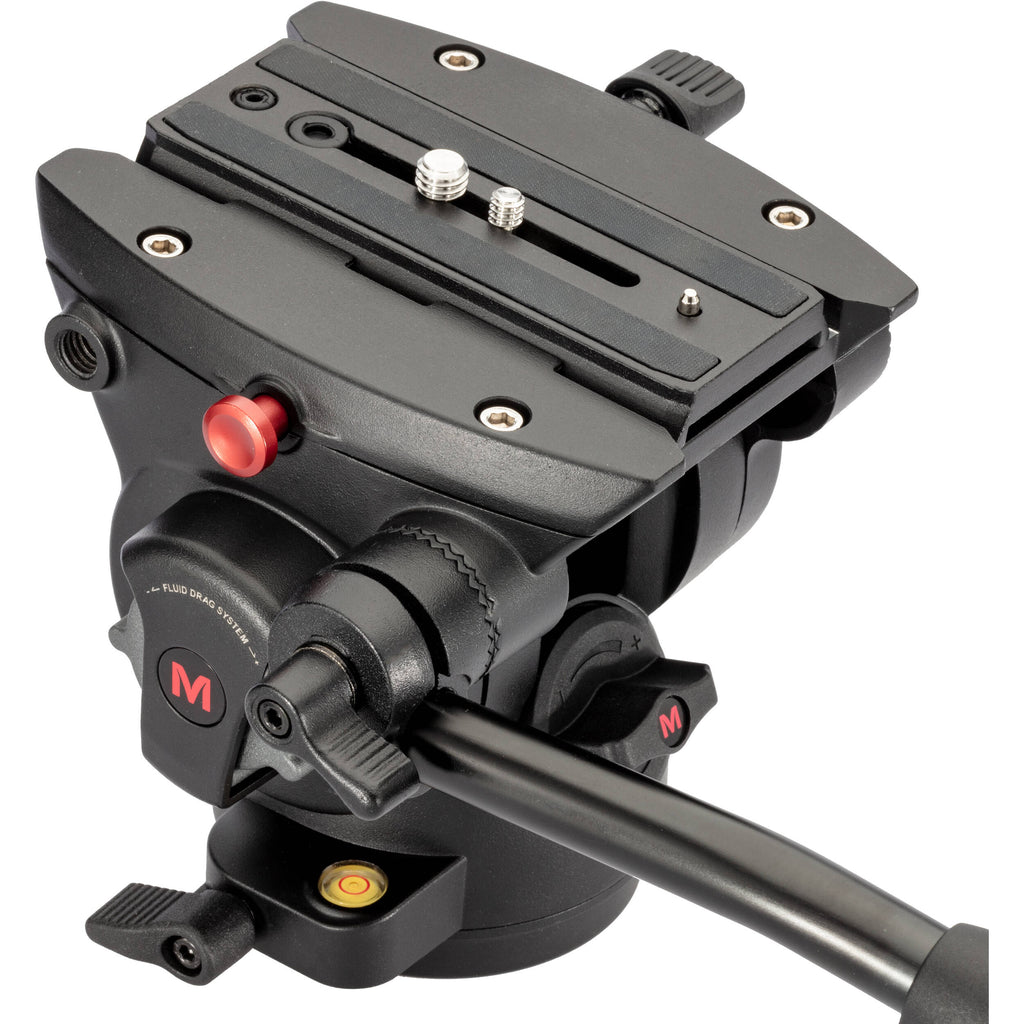

Sliding Balance Plate with Snap-In Feature
The balance plate slides into the clamp and locks in once inserted. This locking feature prevents the plate from accidentally slipping out of the clamp. It's also easier to mount larger camera and lens combinations on the head, thanks to the snap-in feature that lets you snap the plate into the top of the head.
The sliding plate lets you find the perfect balance for your camera. Mark the balance point on the plate so you can remount your camera and instantly find the balance point.

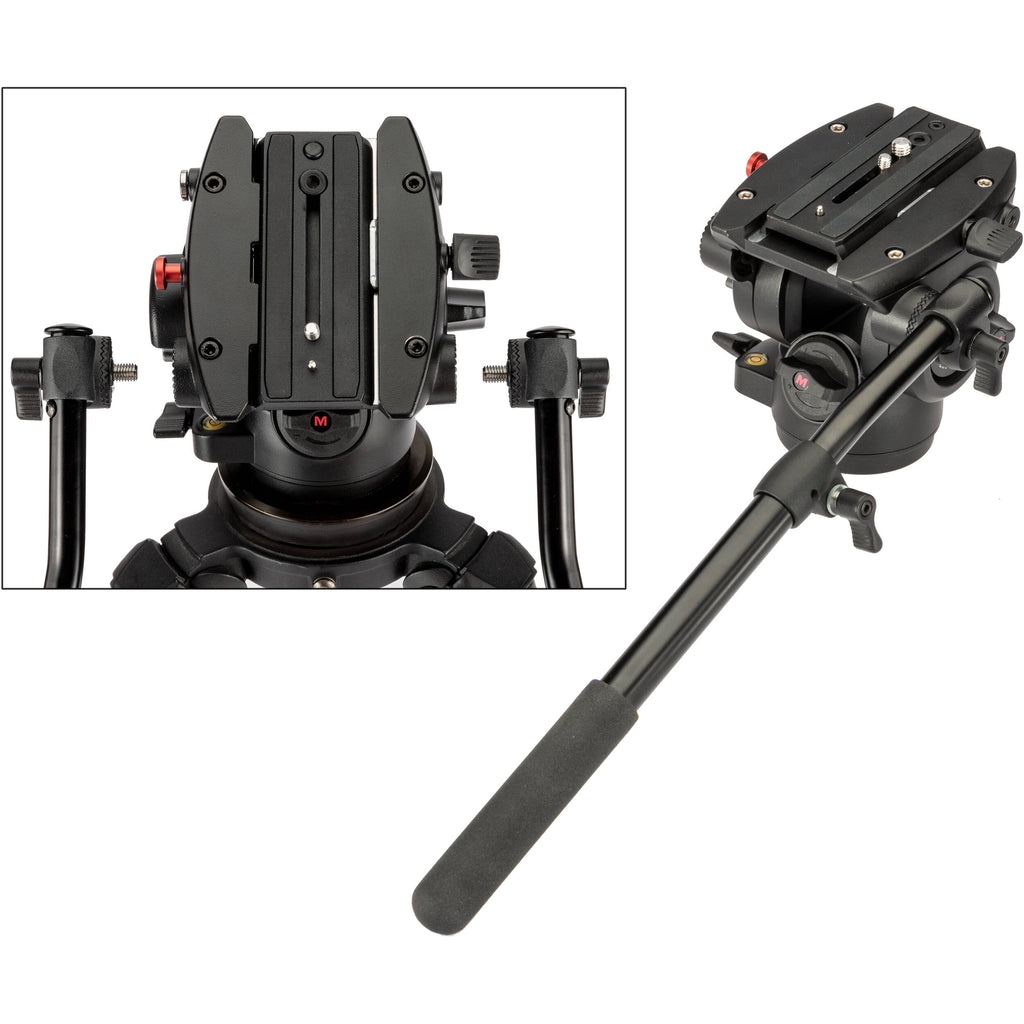

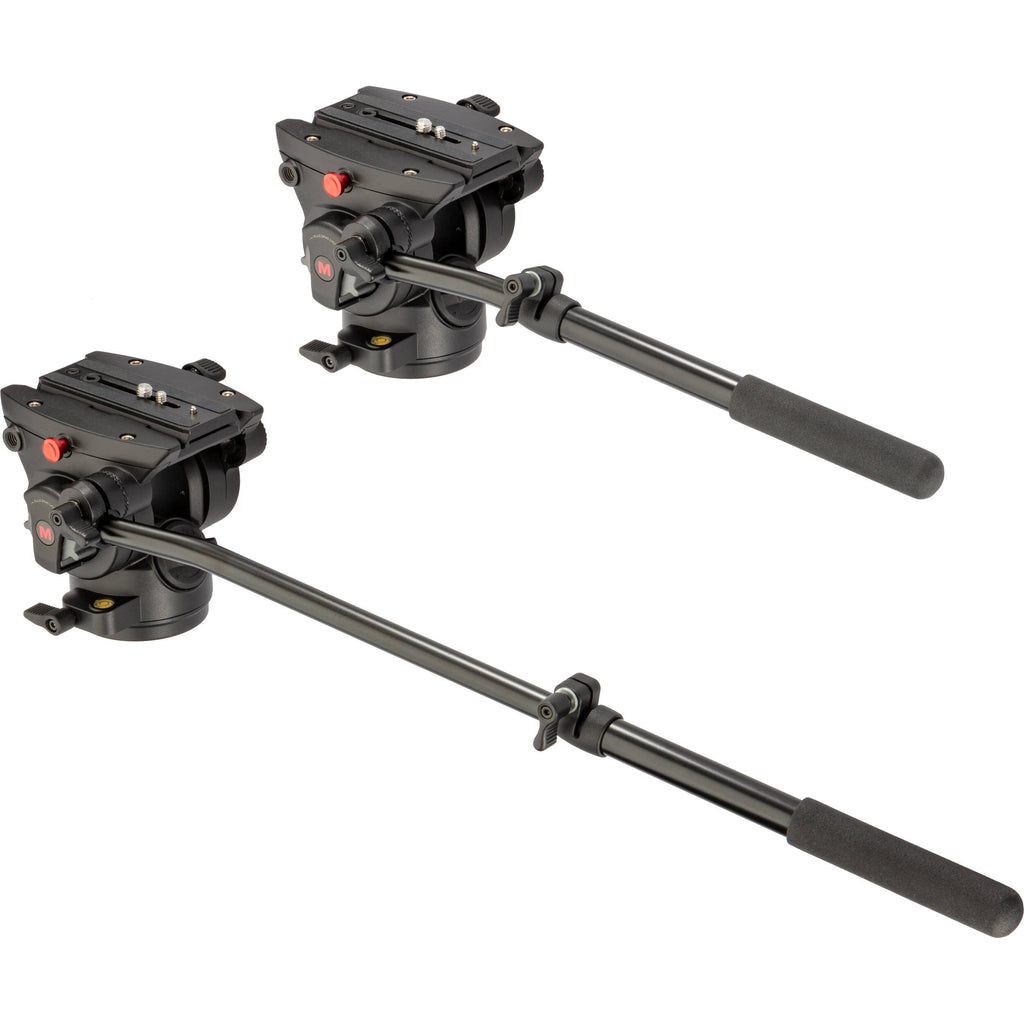

The pan bar lets you accurately and precisely control your video moves without the shaking that comes along with handheld operation. The bar extends from 13.5 to 22 inches for the perfect length for your setup. The head comes with dual rosettes for pan bar control from either side of the camera.
The 1/4"-20 and 3/8"-16 auxiliary sockets are built into the head so you can add accessories like an articulating arm, LED, or microphone to improve the product value of your shoot. They're also good for safekeeping the mounting screws that aren't in use.
In the Box
- Magnus FBVH-500 Video Head with Flat Base
- QR Balance Plate
- Magnus Telescoping Pan Handle for VT-5000/6000 and FBVH-500
- 1/4"-20 Camera Tie-Down Screw
- 3/8"-16 Camera Tie-Down Screw
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- Flat Base
- Fluid Head
- Spring-Loaded Counterbalance
- Sliding Balance Plate with Snap-In Feature
- Balance System
- Extendable Pan Bar
- Auxiliary Sockets
Magnus FBVH-500 Specs
Camera Plate
| Camera Plate Features |
Quick Release, Sliding Balance Plate |
| Camera Mounting Screw |
1 x 1/4"-20 Male
1 x 3/8"-16 Male |
| Balance Plate Sliding Range |
3.2" / 8.2 cm |
| Safety Lock |
Yes |
| Plate Dimensions |
4.7 x 2 x 0.5" / 11.9 x 5.1 x 1.3 cm |
Head
| Base Mount |
3/8"-16 Female |
| Counter Balance |
Fixed |
| Pan Handle Fittings |
2 x Rosette |
| Included Pan Handle Length |
13.5 to 22" / 34.3 to 55.9 cm |
| Bubble Level |
1 |
| Accessory Mounting |
1 x 1/4"-20 Female Thread
1 x 3/8"-16 Female Thread |
Pan & Tilt
| Drag Control |
Continuous |
| Drag Type |
Fluid |
| Vertical Tilt |
+90° to -80° |
| Panning Range |
360° |
| Independent Pan Lock |
Yes |
| Independent Tilt Lock |
Yes |
General
| Load Capacity |
15 lb / 6.8 kg |
| Weight |
4.56 lb / 2.07 kg |
Packaging Info
| Package Weight |
5.215 lb |
| Box Dimensions (LxWxH) |
15.3 x 7.7 x 7.3" |
