Description

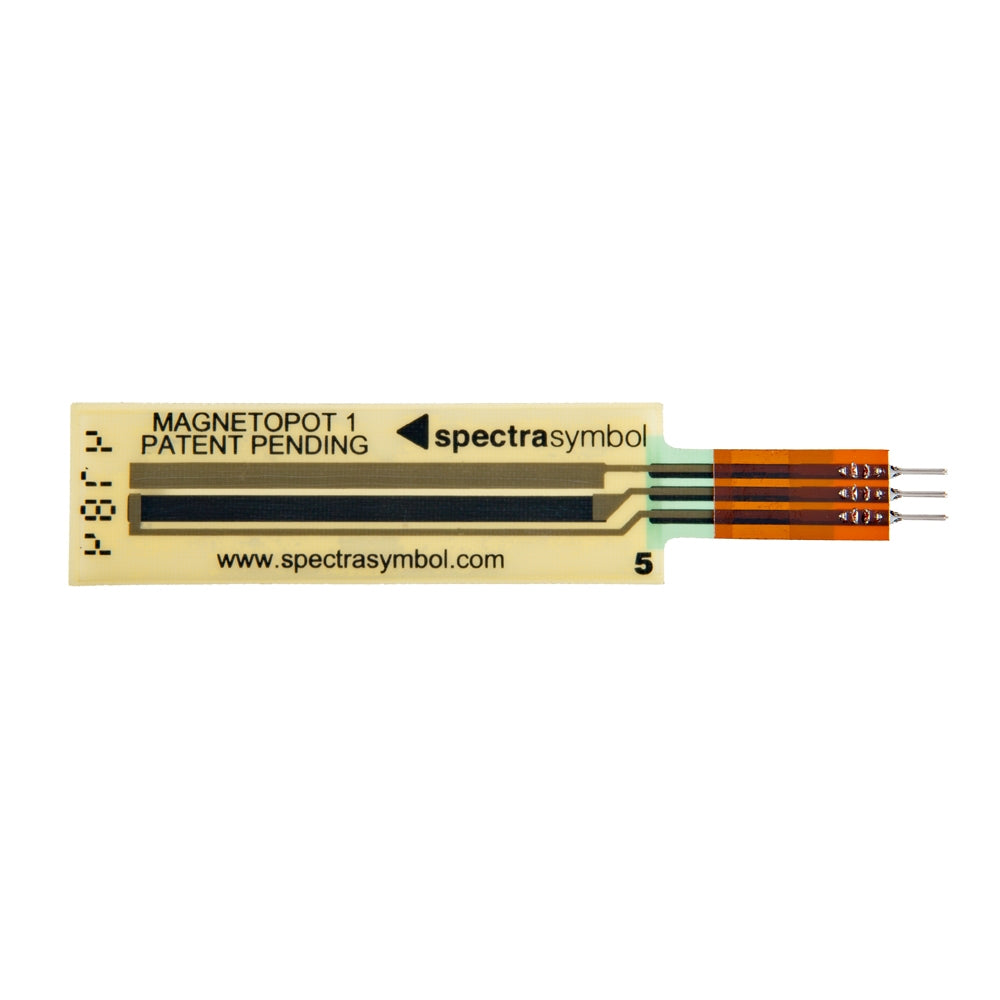

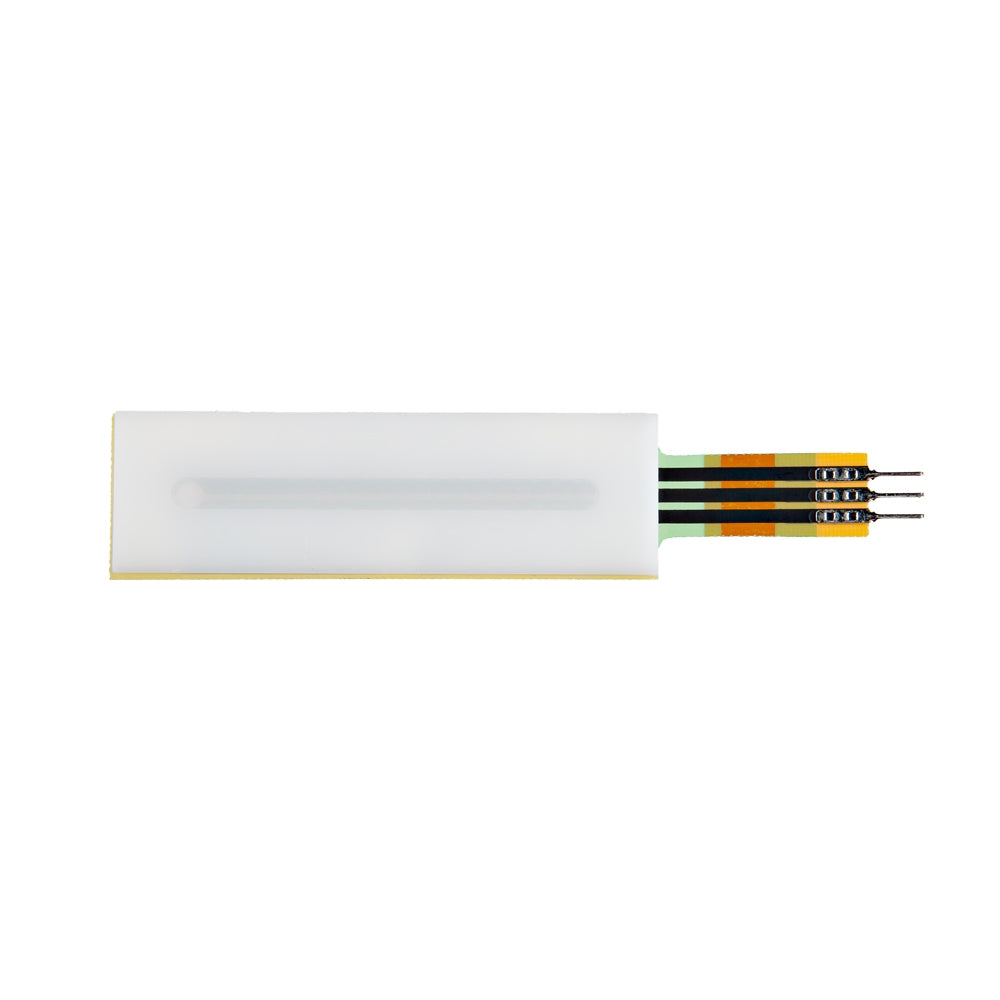

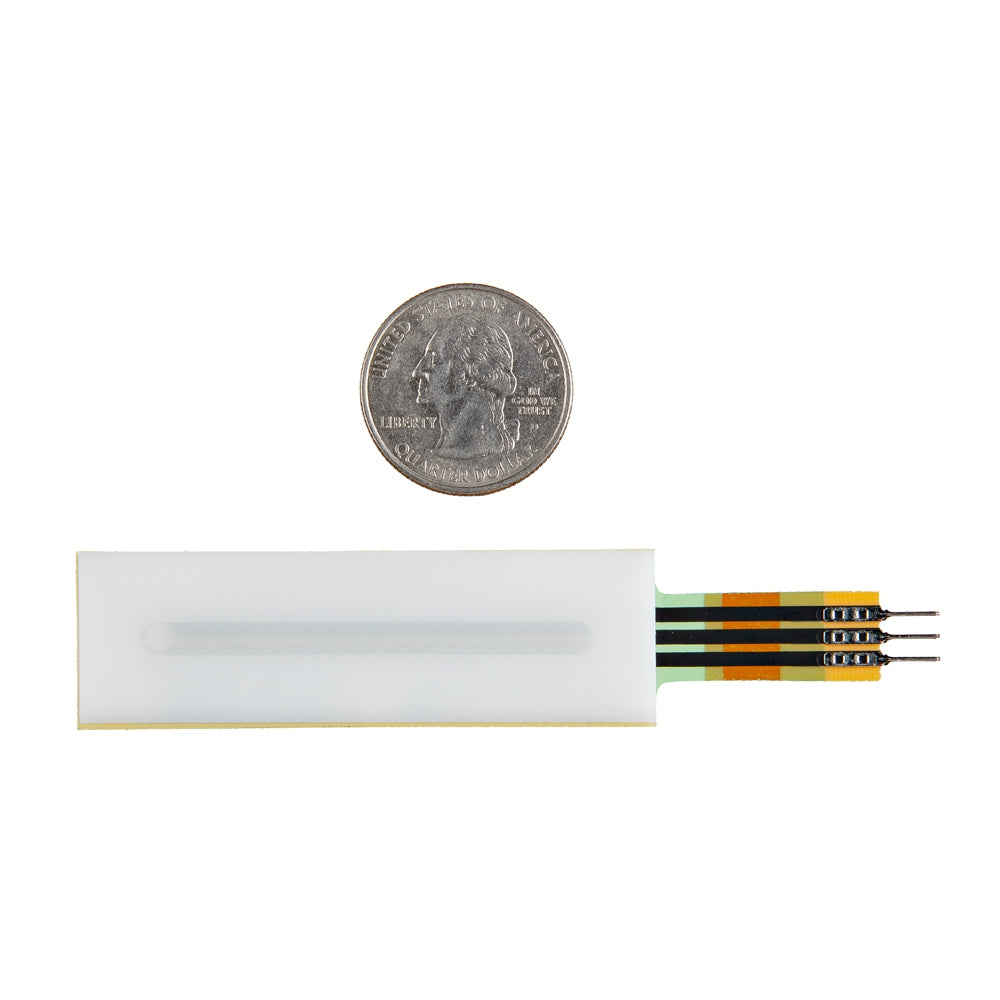

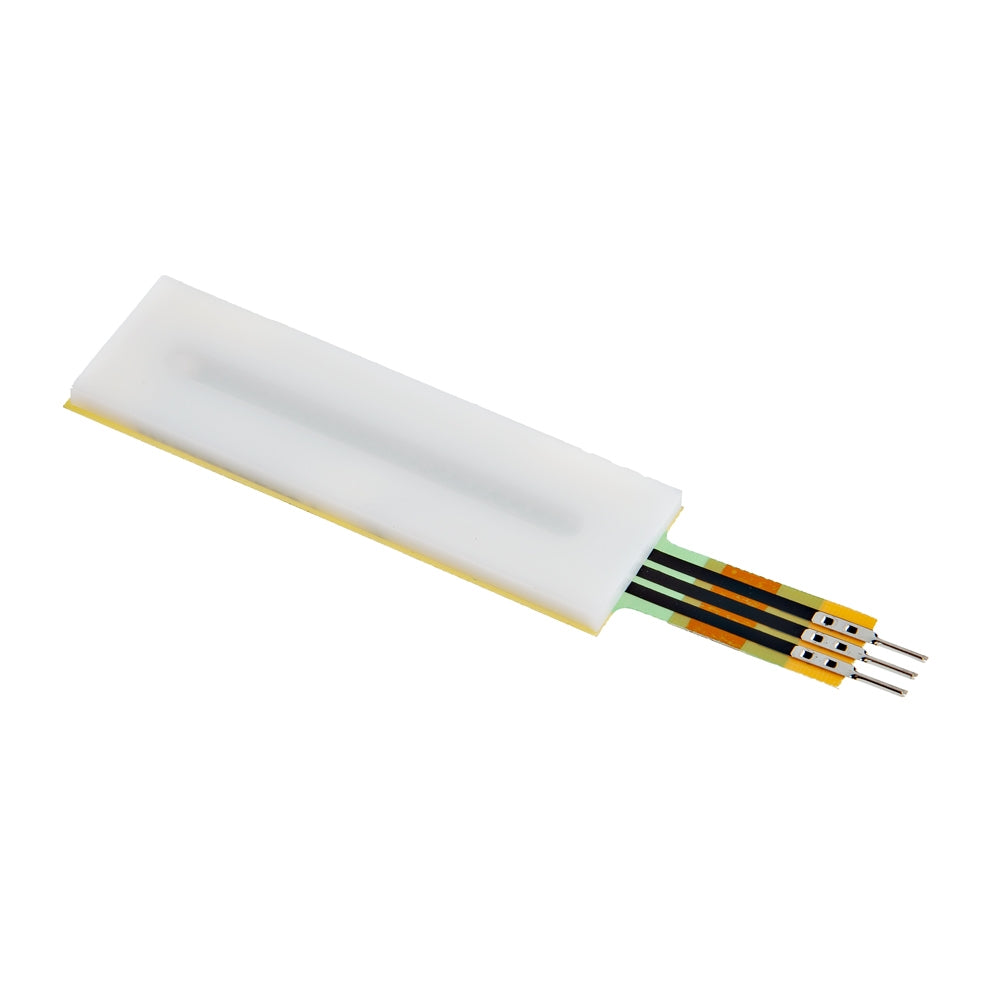

The MagnetoPot is simple, yet elegant in its ability to track motion in a contactless manner.
Features & Specs
- Resistance - Standard: 10k Ohms (lengths >300mm = 20k Ohms)
- Resistance - Custom: 5k to 500k Ohms
- Resistance Tolerance: ±20%
- Effective Electrical Travel: 8 to 1200mm
- Resolution: Depends on the exterior magnet strength and distance to the MagnetoPot
- Power Rating: 0.50 Watt continuous, 1 Watt Peak
- Dielectric Value: No affect @ 500VAC for 1 minute
- Independant Linearity: ±5% (±1% available)
- Hysteresis: 3mm*
- Life Cycle: >1 million
- Height: 3.50mm (0.138")
- Actuation Force: 0.09 to 0.11 lbs pull force at desired distance (pull force rating is for the exterior magnet using a test plate of cold rolled steel).
*Please note that the hysteresis is directly affected by the drive magnet size, strength, and distance from the internal magnet.
Features & Specs
- Resistance - Standard: 10k Ohms (lengths >300mm = 20k Ohms)
- Resistance - Custom: 5k to 500k Ohms
- Resistance Tolerance: ±20%
- Effective Electrical Travel: 8 to 1200mm
- Resolution: Depends on the exterior magnet strength and distance to the MagnetoPot
- Power Rating: 0.50 Watt continuous, 1 Watt Peak
- Dielectric Value: No affect @ 500VAC for 1 minute
- Independant Linearity: ±5% (±1% available)
- Hysteresis: 3mm*
- Life Cycle: >1 million
- Height: 3.50mm (0.138")
- Actuation Force: 0.09 to 0.11 lbs pull force at desired distance (pull force rating is for the exterior magnet using a test plate of cold rolled steel).
*Please note that the hysteresis is directly affected by the drive magnet size, strength, and distance from the internal magnet.
