Description
- Converts VGA to RGB Sync
- H & V Syncs on Green Channel
- Supports 1600 x 1280 Resolutions
- VGA Cable Included

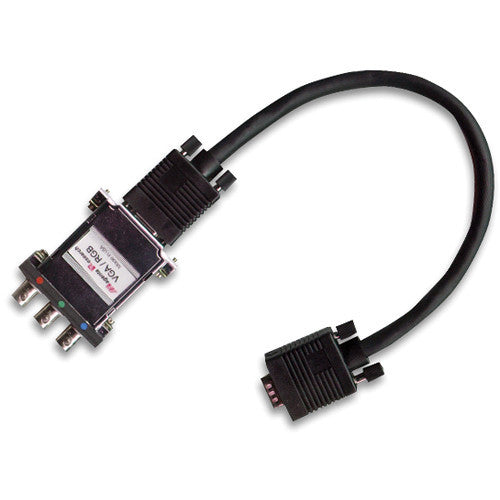

The Magenta Voyager 15-Pin Female VGA to RGB Passive Video Converter lets you connect a VGA source to RGB displays. The converter is a sync combiner that will output the original resolution and scan rates. The horizontal and vertical syncs from the VGA signal are placed on the green channel. This converter comes built with a standard 15-pin VGA connector on one end, and three BNC coaxial connectors on the other. Furthermore, a VGA cable is included.
| Connectors | Input: HDD 15-Pin VGA, male Output: 3 x BNC Electrical: RGB with synchronization on green |
| Bandwidth | 145 MHz (1600 x 1280 pixels, 75 Hz vertical refresh) |
| Signal Level | Input: VESA 1 Vpp video, TTL syncs Output: RGB 1 Vpp composite synchronization on green (235 mV) |
| MTBF | 100,000 Hours |
| Temperature | Operating: 32 to 104°F (0 to 40°C) Non-Operating: -4 to 140°F (-20 to 60°C) |
| Humidity | Operating: 80% Non-condensing Non-Operating: 5 to 95% Non-condensing |
| Dimensions | 2.9 x 2.1 x 0.7" (74 x 54 x 16 mm) |
| Weight | 1.8 oz (51 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.4 lb |
| Box Dimensions (LxWxH) | 15.0 x 2.7 x 0.8" |
In the Box
Magenta Voyager 15-Pin Female VGA to RGB Passive Video Converter
- VGA Cable
- Limited 3-Year Warranty
