Description
Magenta Research 4Y-1Y Overview
- 1Description
- 2Up to DCI 4K60 HDMI Input
- 3Up to 4K30 HDMI Output
- 4Classic & Dynamic Modes
- 5Front-Panel Controls
- 6Transitions & Labeling
- 7Audio De-Embedding
- 8Secure Communication
- 9Versatile Control Options
- 10EDID Management
- 11Horizontal & Portrait Displays
The CORIOview MWP-4Y-1Y 4 x 4K HDMI Input Multiviewer from Magenta Research is a fast, plug-and-play video processor featuring front-panel button control, presets in both horizontal and vertical configurations, format conversion, and scaling. It has one HDMI input supporting up to DCI 4K60, three HDMI inputs supporting up to UHD 4K30, and one HDMI output supporting up to 4K30 to your video display. This multiviewer processor offers Classic operating mode for traditional multiview window controls and Dynamic mode for automated preset windows and panel control suitable for huddle spaces and conferences.
Up to DCI 4K60 HDMI Input
- 1 x DCI 4K60 HDMI input
- 3 x UHD 4K30 HDMI inputs
Up to 4K30 HDMI Output
1 x UHD 4K30 HDMI output
Classic & Dynamic Modes
- Choose Classic mode for versatile window controls and traditional multiview switching
- Choose Dynamic mode for easy preset window toggling suitable for huddle rooms and conferences

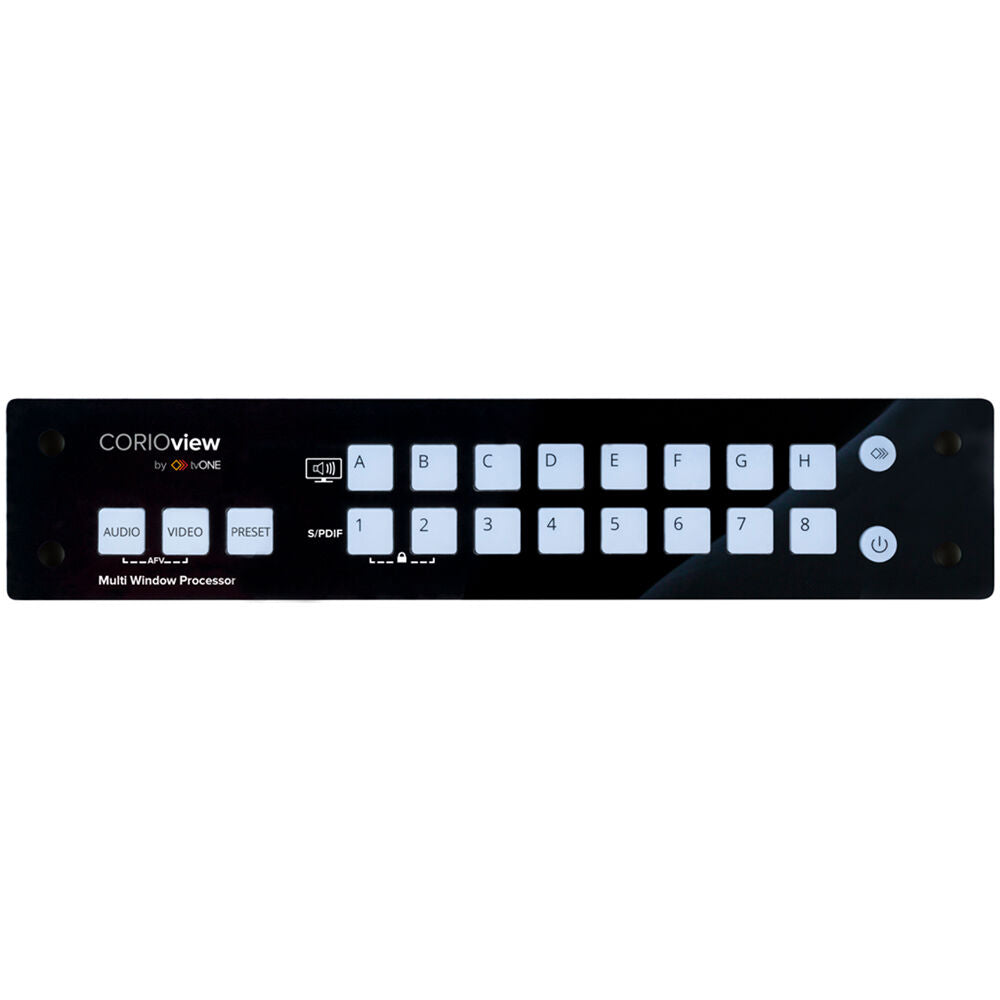

Front-Panel Controls
Front-panel buttons offer switching, preset selection, and info source display
Transitions & Labeling
- Apply transitions and FTB (fade to black)
- Source labeling and border application
Audio De-Embedding
De-embeds audio via an S/PDIF port or your display
Secure Communication
Secure mode uses AES128 encryption to ensure private network-based communications
Versatile Control Options
- Up to four-person control via CORIOgrapher and REST API
- Third-party control via real-time API
EDID Management
Enables custom EDID uploads when paired with CORIOgrapher
Horizontal & Portrait Displays
Use with CORIOgrapher to choose between horizontal and 0, 90, 180, or 270° vertical displays
In the Box
- Magenta Research CORIOview MWP-4Y-1Y 4 x 4K HDMI Input Multiviewer with 4K30 Output
- Power Supply
- USB Stick
- Limited 5-Year Warranty
Table of Contents
- Description
- Up to DCI 4K60 HDMI Input
- Up to 4K30 HDMI Output
- Classic & Dynamic Modes
- Front-Panel Controls
- Transitions & Labeling
- Audio De-Embedding
- Secure Communication
- Versatile Control Options
- EDID Management
- Horizontal & Portrait Displays
Magenta Research 4Y-1Y Specs

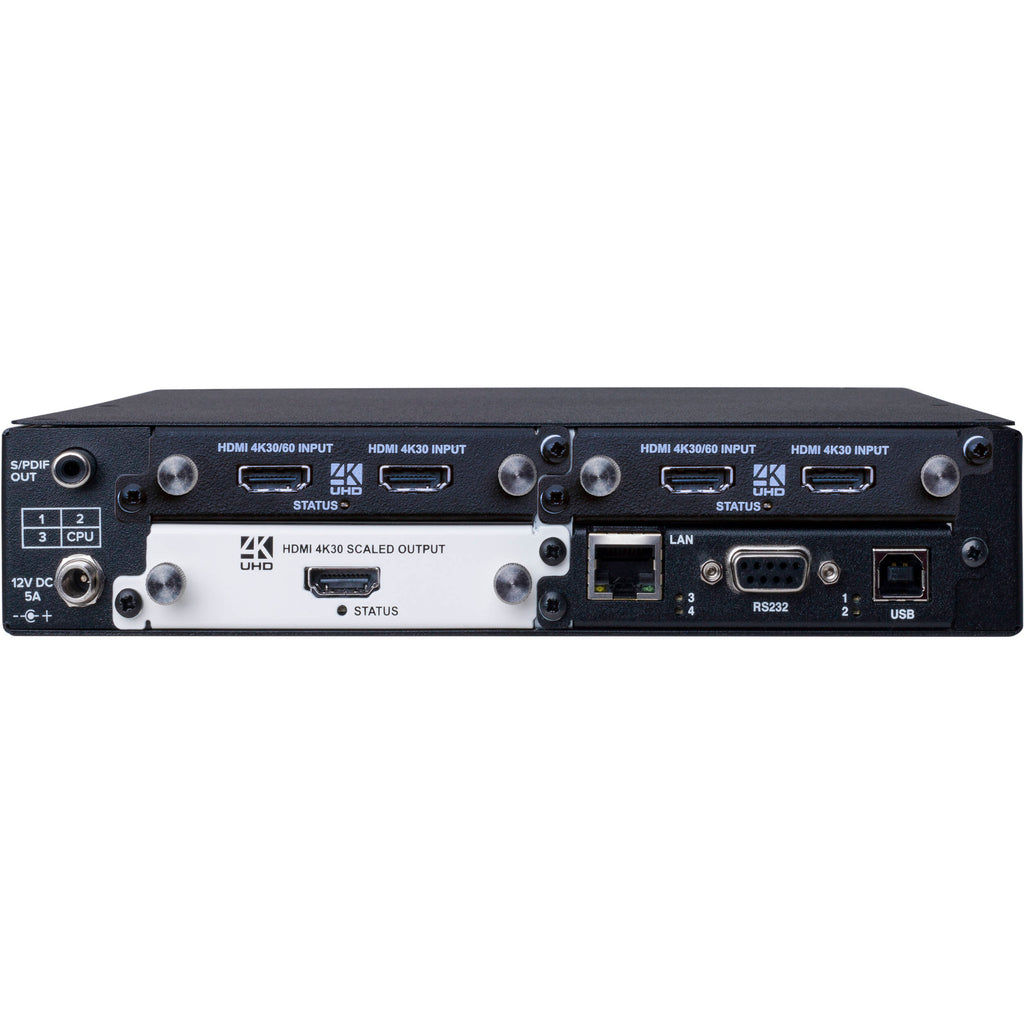

Interfaces
| Input Connectors | 4 x HDMI (HDMI 1.4) |
| Embedded Audio Input | HDMI: 2-Channel |
| Output Connectors | 1 x HDMI (HDMI 1.4) 1 x RCA (S/PDIF) |
| Other I/O | 1 x RJ45 10/100 Ethernet 1 x DE-9/DB-9 RS-232 1 x USB Type-B |
Standards
| HDR Compatibility | None |
| HDCP Support | Version 1.4 |
| EDID Support | Yes |
Transmission
| Video Format | HDMI Input (8-Bit 4:4:4 RGB, YCC) DCI 4K: 50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 23.98/24/25/29.97/30/50/59.94/60 fps PAL: 23.98/24/25/29.97/30/50/59.94/60 fps HDMI Input (8-Bit 4:2:0 RGB, YCC) UHD 4K: 50/59.94/60 fps HDMI Output (8-Bit 4:4:4 RGB, YCC) UHD 4K: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 23.98/24/25/29.97/30/50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps |
| PC Resolutions | HDMI: 1920 x 1035 |
| Audio Format | S/PDIF: 48 kHz / 24-Bit |
Power
| Power Connector | 1 x Barrel (110 to 240 VDC) Input |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 14 to 158°F / -10 to 70°C |
| Operating Humidity | 10 to 80% |
General
| Rack Form Factor | 1 RU |
| Certifications | CE, FCC, RoHS, UL, as per Manufacturer |
| LED Indicators | Yes |
| Dimensions | 9.6 x 8.5 x 1.7" / 244.0 x 217.0 x 44.0 mm |
| Weight | 3.7 lb / 1.7 kg |
