Description

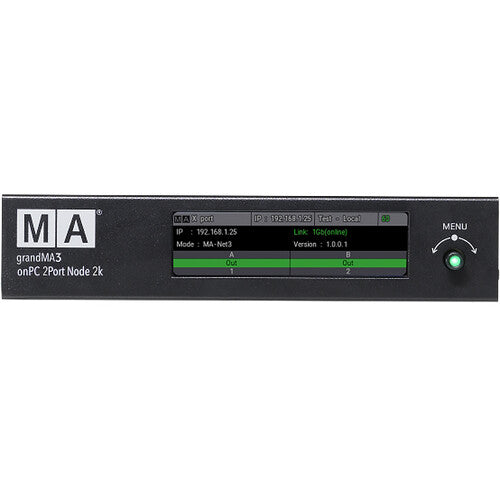

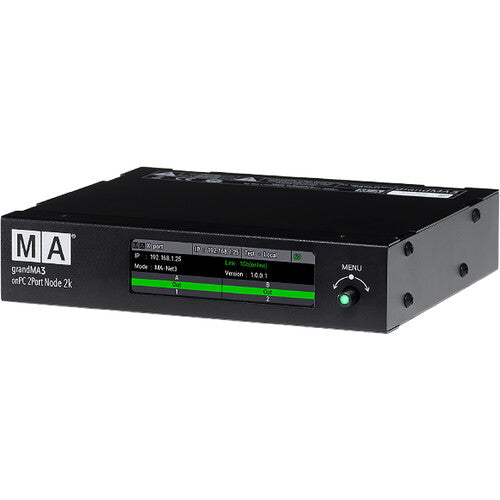

MA Lighting grandMA3 Overview
Designed as an all-inclusive lighting solution for MA Lighting nodes, the grandMA3 onPC 2Port Node 2k PoE from MA Lighting is an entry-level node that directly connects to a PC to control lighting fixtures. Ideal for theater, TV production, and live events, this fixture controls moving lights and LEDs with a PC or two DMX universes. Encased in a 9.5" 1RU housing, the compact fixture is designed to simultaneously output to two DMX universes in any grandMA3 system. To ensure a optical performance, the fixture is integrated with a high-performance processor and a 1 GB/s Ethernet connection for reliable power. This device can also be powered with PoE for reduced and consolidated cabling. This fixture enables 4 096 HTP and LTP parameters to complete a compact control system. For greater compatibility, the fixture handles MA-Net 2, MA-Net 3, sACN, and Art-Net data for remote configurations, as well as RDM-compatibility. The grandMA3 on PC software offers the same features as larger MA Lighting consoles to offer greater compatibility and a seamless workflow. Easily configure the fixture with its 3.9" color display to get a quick status overview and adjust settings.
- Recipe Workflow: The grandMA3 features a recipe workflow for better and faster workflows for users creating and editing recipes.
- Tags: This feature allows for organizing, linking, and cross-referencing objects throughout the software.
- Timing Masters: This can set playback timings instead of a numeric value.
- Supported File Formats: Expanded file format options are supported in videos and 3D meshes within the software.
- Fixture Sheet: Includes subtopics that describe the fixture sheet settings and fixture sheet modes.
Items Included
- MA Lighting grandMA3 onPC 2Port Node 2k PoE
- Limited 2-Year Manufacturer Warranty
Additional Resources
MA Lighting grandMA3 Specs

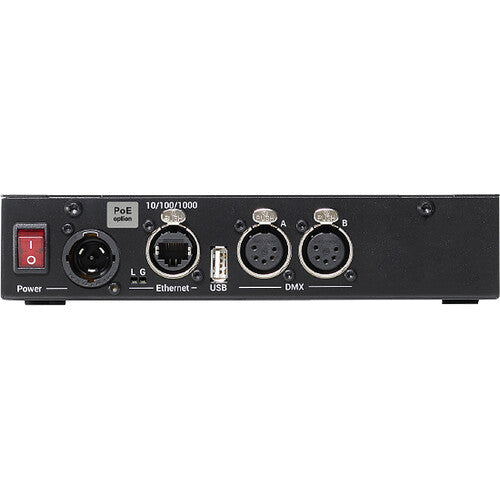

| Inputs/Outputs |
2x XLR 5-Pin (DMX) Female Output
1x RJ14 (Gigabit Ethernet) Input/Output 1x USB-A |
| Channels |
4096 (DMX)
|
| Power Source |
AC Power
|
| Protocol |
DMX512
|
| Inputs/Outputs |
2x XLR 5-Pin (DMX) Female Output
1x RJ14 (Gigabit Ethernet) Input/Output 1x USB-A |
| Channels |
4096 (DMX)
|
| Dimming |
Optional
|
| Cooling System |
No
|
| Power Source |
AC Power
|
| Power Consumption |
12 W
|
| Input Power |
48 VDC
100 to 240 VAC, 50 / 60 Hz |
| PoE Port Power |
48 V12 W
|
| Protocol |
DMX512
|
| Operating Conditions |
32 to 104?F / 0 to 40?C
|
| Environmental Resistance |
No
|
| Dimensions |
9.0 x 8.0 x 2.0" / 22.9 x 20.3 x 5.1 cm
|
| Weight |
5 lb / 2.3 kg
|
| Package Weight |
4.305 lb
|
| Box Dimensions (LxWxH) |
13.1 x 10.2 x 2.7"
|
