Description

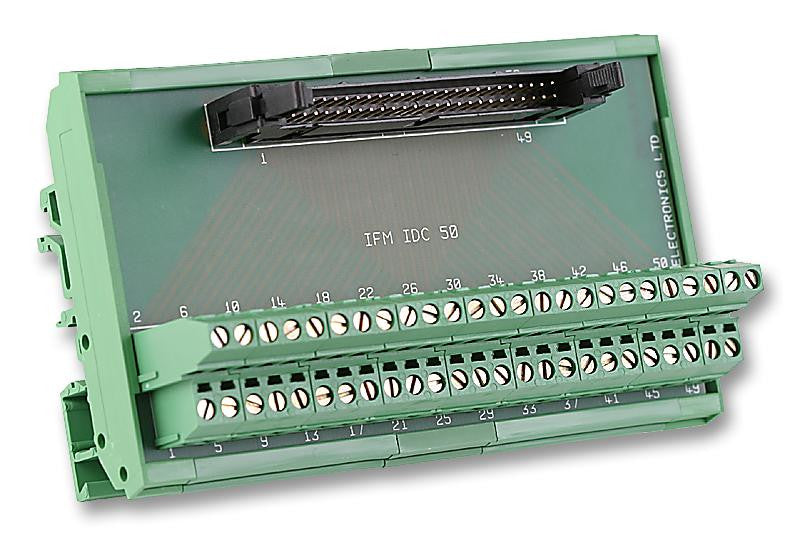

The IFM IDC 50 is a 50-position IDC Interface Module with DIN rail mount, housing made of self extinguishing polyamide 6.6 (UL94V-0). The 72mm wide standard DIN rail mounting interface module to connect discrete wiring to a standard 0.127mm (0.050-inch) pitch ribbon cable connector. Especially useful for the connection of low voltage logic and control equipment in control panels. The module features a quality IDC male connector and screw terminals connectors which will accept cables up to 4.0mm�.
- 15mR Resistance
- 10?R Insulation resistance
Applications
Automation & Process Control
Product details
| Convert To | Screw Type 50 Position Terminal Block |
| Rated Current | 1A |
| Product Range | - |
| Convert From | IDC 50 Position Plug |
| Rated Voltage | 250V |
Other details
| Brand | M JAY |
| Part Number | IFM IDC 50 |
| Quantity | Each |
| Technical Data Sheet EN |  |
