Description
Lynx Studio Technology Aurora(n) Overview
- 1Description
- 2Two Preinstalled LM-PRE4 Preamp Modules
- 3Preinstalled Lynx LT-DANTE Dante LSlot Interface Card
- 4Discrete Converter Array
- 5SynchroLock 2 Sample-Clock Technology
- 6Future-Proof LSlot Design
- 7Features at a Glance
By Photo's
Eric Calvi

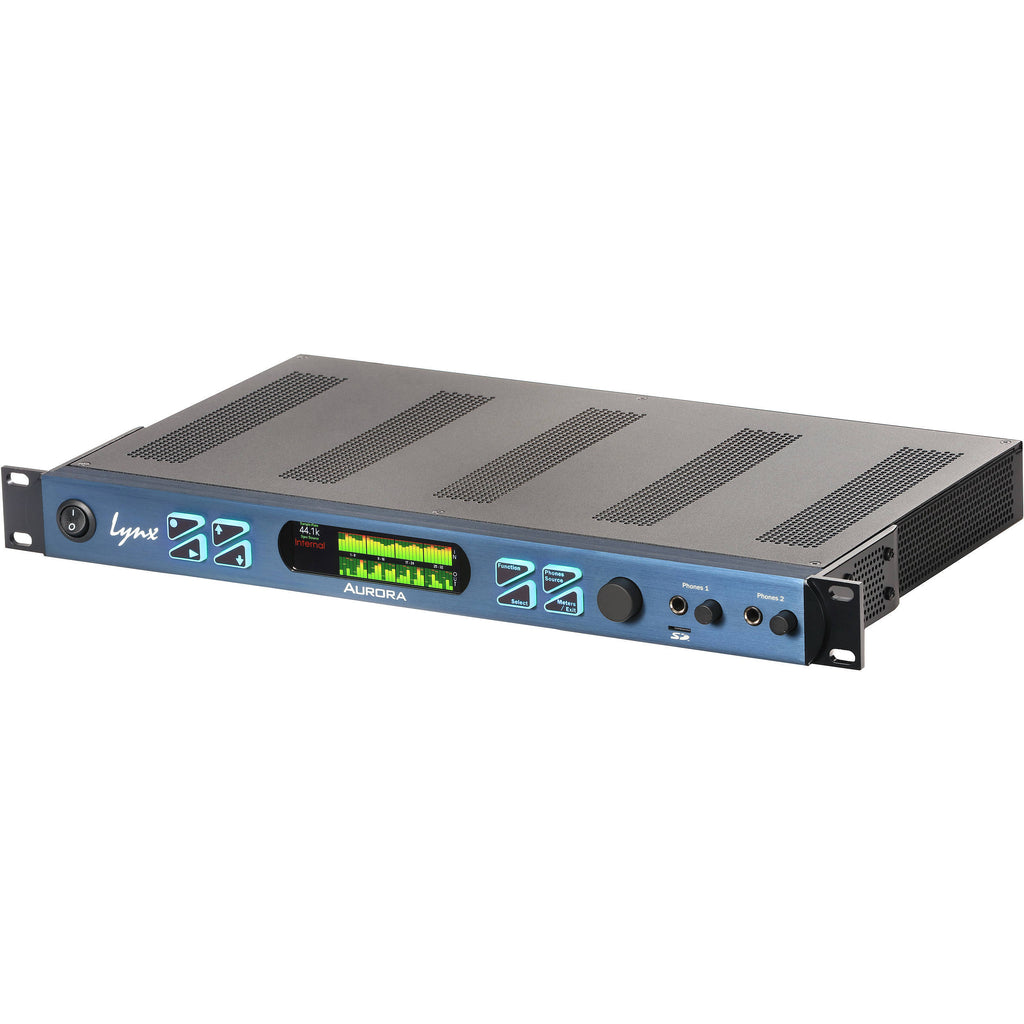

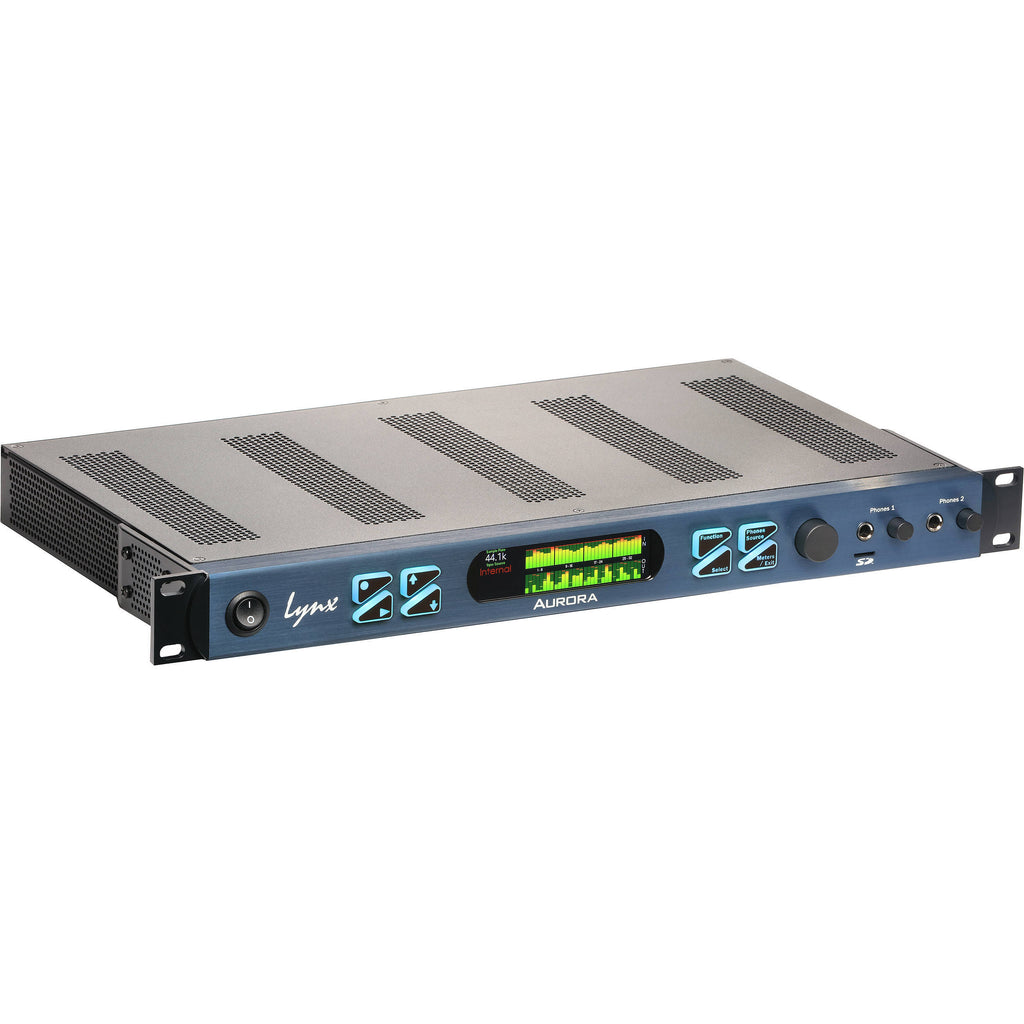

This Lynx Studio Technology Aurora(n) is preconfigured with 8 analog ins and 8 analog outs on two DB-25 connectors, plus two LM-PRE4 preamp modules, which not only add the flexibility of eight channels of mic / line / Hi-Z inputs, but also bring an additional eight channels of A/D conversion. It is also equipped with a two-port, Lynx LT-DANTE LSlot interface card that allows for easy connectivity to a Dante audio network.
This Aurora(n) is a mastering-grade 16-in / 8-out AD/DA converter, which supports up to 24-bit / 192 kHz conversion. Design and technology borrowed from the development of Hilo converters is used to significantly improve specifications and transparency over previous models, while attaining stunning Hilo-like performance. Ideal for audio engineers and producers who demand the most pristine recordings and mixes, the Aurora(n) delivers coloration- and degradation-free signal for mission-critical audio applications in studios, mastering facilities, remote recordings, broadcast and live performance facilities.
The unit features an onboard microSD player/recorder capable of up to 32 channels of direct recording and playback, ideal when working in the field. Two headphone outputs with independent volume control let you monitor your sound with audiophile-grade precision, while a bright TFT LCD display gives you immediate access to all levels and functions, right from the front panel.
Two Preinstalled LM-PRE4 Preamp Modules
- The two LM-PRE4 modules feature four high-performance mic/line/Hi-Z preamps each.
- They are sonically matched for the Aurora(n) with all the transparency, detail and flexibility you've come to expect from Lynx.
- When combined with the built-in microSD recorder, the LM-PRE4 preamps transform the Aurora(n) into a standalone mobile recording device.
Preinstalled Lynx LT-DANTE Dante LSlot Interface Card
- The LT-DANTE card provides digital input and output to a Dante audio network.
- The two-port card supports up to 32 channels at 96 kHz and 16 channels at 192 kHz.
- Use standard Cat 5 or Cat 6 cables.
Discrete Converter Array
- The analog signal path for each channel has been designed as a self-contained and shielded circuit. Each channel pair has its own dedicated conversion device. This offers many sonic advantages like significantly reducing crosstalk and distortion while increasing dynamic range and performance.
SynchroLock 2 Sample-Clock Technology
- Proprietary SynchroLock 2 high-performance sample-clock technology provides a whopping 300,000:1 reduction in jitter, 5-second lock time, and absolute accuracy.
- Wordclock I/O provides one input and one output on BNC connectors.
Future-Proof LSlot Design
Add Channels:
- Start with eight, sixteen, or twenty-four channels and later add additional groups of eight channels for up to thirty two total.
Add Modules:
- Digital I/Os, mic preamps; more are being designed now for future release.
Add Connectivity Options:
- Thunderbolt 3, ProTools|HD, or USB via LSlot cards (available separately).
Features at a Glance
- Mastering-quality, 16-in / 8-out AD/DA conversion at up to 24-bit / 192 kHz.
- 8 analog ins and 8 analog outs on two DB-25 connectors.
- Two preinstalled LM-PRE4 4-channel preamp modules (8 channels total).
- Preinstalled Lynx LT-DANTE, two-port Dante LSlot interface card.
- Wordclock I/O: one input and one output on BNC connectors.
- Onboard microSD player/recorder capable of up to 32 channels of direct recording and playback.
- Two audiophile-grade headphone outputs with independent volume control.
- 480 X 128 TFT LCD display provides immediate access to all levels and functions and ensures that you see every piece of critical data, from just about any viewing angle.
- Universal power supply built in, no wall warts.
- 1 RU rack-space design with no fan provides silent operation so you can keep unit in the recording room, with no need for isolation from distracting fan noise.
- Full Windows and OSX compatibility.
- Designed and built in Southern California, USA.
In the Box
- Lynx Studio Technology Aurora(?) AD/DA Converter with Two Preamp Modules and Dante Interface
- IEC Power Cord
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Two Preinstalled LM-PRE4 Preamp Modules
- Preinstalled Lynx LT-DANTE Dante LSlot Interface Card
- Discrete Converter Array
- SynchroLock 2 Sample-Clock Technology
- Future-Proof LSlot Design
- Features at a Glance
Lynx Studio Technology Aurora(n) Specs
Key Specs
| Form Factor |
Rackmount (Rack-Mountable with Included Hardware)
|
| Converter Type |
AD/DA Converter
|
| Number of Channels |
16x A/D
8x D/A |
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
8 Preamps
|
| Analog Audio I/O |
8x Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input
1x DB-25 25-Pin Balanced Line/8-Channel Input 1x DB-25 25-Pin Balanced Line/8-Channel Output 2x 1/4" TRS Balanced Headphone Output |
| Converter Type |
AD/DA Converter
|
| Number of Channels |
16x A/D
8x D/A |
| Display |
1x Color TFT
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
8 Preamps
|
| Expansion Slots |
No
|
| Gain/Trim Range |
XLR Mic Inputs:
5.6 dB (No Pad, Fixed) 13.6 dB Up to 68.6 dB (in 1 dB Steps, No Pad) -8 dB (With Pad, Fixed) 0 dB Up to 55 dB (in 1 dB Steps, With Pad) XLR Line Inputs: 20 dBu (Fixed) 1/4" Hi-Z Inputs: 5.6 dB (Fixed) 13.6 dB Up to 68.6 dB (in 1 dB Steps) DB-25 Line Inputs: 20 dBu |
Connectivity
| Analog Audio I/O |
8x Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input
1x DB-25 25-Pin Balanced Line/8-Channel Input 1x DB-25 25-Pin Balanced Line/8-Channel Output 2x 1/4" TRS Balanced Headphone Output |
| Phantom Power |
48 V, Selectable On/Off
|
| Digital Audio I/O |
No
|
| Host Connection / USB |
No
|
| USB (Non-Host) |
No
|
| Sync I/O |
1x BNC Clock Input
1x BNC Clock Output |
| Network I/O |
2x RJ45 Dante
|
| MIDI I/O |
No
|
| Wireless |
No
|
Performance
| Frequency Response |
XLR Mic Inputs:
20 Hz to 20 kHz ±0.01/-0.08 dB XLR Line Inputs: 20 Hz to 20 kHz ±0.01 dB 1/4" Hi-Z Inputs: 20 Hz to 20 kHz ±0.01/-0.05 dB DB-25 Line Inputs: 20 Hz to 20 kHz ±0.01 dB XLR Line Outputs: 20 Hz to 20 kHz ±0.025 dB DB-25 Line Outputs: 20 Hz to 20 kHz ±0.025 dB 1/4" Headphone Outputs: 20 Hz to 20 kHz ±0.025 dB |
| Maximum Input Level |
XLR Mic Inputs:
28.7 dBu (at 5.6 dB Gain, with PAd) XLR Line Inputs: 20 dBu 1/4" Hi-Z Inputs: 14.9 dBu (at 5.6 dB Gain) DB-25 Mic Inputs: 20 dBu |
| Maximum Output Level |
Headphone Outputs:
18.4 dBu |
| Impedance |
XLR Mic Inputs:
2.1 Kilohm XLR Line Inputs: 200 Kilohms (Balanced) 100 Kilohm (Unbalanced) 1/4" Hi-Z Inputs: 1 Megohm (Unbalanced) 2 Megohms (Balanced) |
| Dynamic Range |
XLR Mic Inputs:
116 dB XLR Line Inputs: 119 dB 1/4" Hi-Z Inputs: 114 dB XLR Line Outputs: 120 dB 1/4" Headphone Outputs: 120 dB |
| THD+N |
XLR Mic Inputs:
-111 dB (at 21.6 dB Gain) -99 dB (at 41.6 dB Gain) -80 dB (at 61.6 dB Gain) XLR Line Inputs: -113 dB 1/4" Hi-Z Inputs: -109 dB (at 21.6 dB Gain) DB-25 Line Inputs: -113 dB 1/4" Headphone Outputs: -107 dB |
| Crosstalk |
XLR Mic Inputs:
-127 dB (at 41.6 dB Gain, 1 kHz) -117 dB (at 41.6 dB Gain, 10 kHz) XLR Line Inputs: -130 dB 1/4" Hi-Z Inputs: -132 dB (at 21.6 dB Gain, 1 kHz) -125 dB (at 21.6 dB Gain, 10 kHz) DB-25 Line Inputs: -130 dB 1/4" Headphone Outputs: -120 dB |
| EIN |
XLR Mic Inputs:
-127 dBu (at 61.6 dB Gain, 20 kHz Filter) -129 dBu A-Weighted (at 61.6 dB Gain) 1/4" Hi-Z Inputs: -113 dBu (at 21.6 dB Gain, 20 kHz Filter) -115 dBu A-Weighted (at 21.6 dB Gain) |
| CMRR |
XLR Mic Inputs:
75 dB XLR Line Inputs: 75 dB |
Digital Audio
| Sample Rates |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
|
| Bit Depths |
24 / 32-Bit
|
| Sync Sources |
AES3, Dante, Internal, Word Clock
|
| Clocking |
Word Clock:
Input Termination: 75 Ohms |
Compatibility
| OS Compatibility |
macOS 10.6.4 or Later
Windows 7 to 10 |
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Mobile Device Compatibility |
No
|
| Internet Connection |
Required for Software/Driver Download
|
Power
| Power Requirements |
AC Input
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
70 W (Maximum)
|
Physical
| Rackmount Size |
1 RU
|
| Dimensions |
19 x 10 x 1.7" / 48.3 x 25.4 x 4.3 cm
|
| Weight |
7.3 lb / 3.3 kg
|
Packaging Info
| Package Weight |
9.335 lb
|
| Box Dimensions (LxWxH) |
23 x 16 x 4"
|
