Description

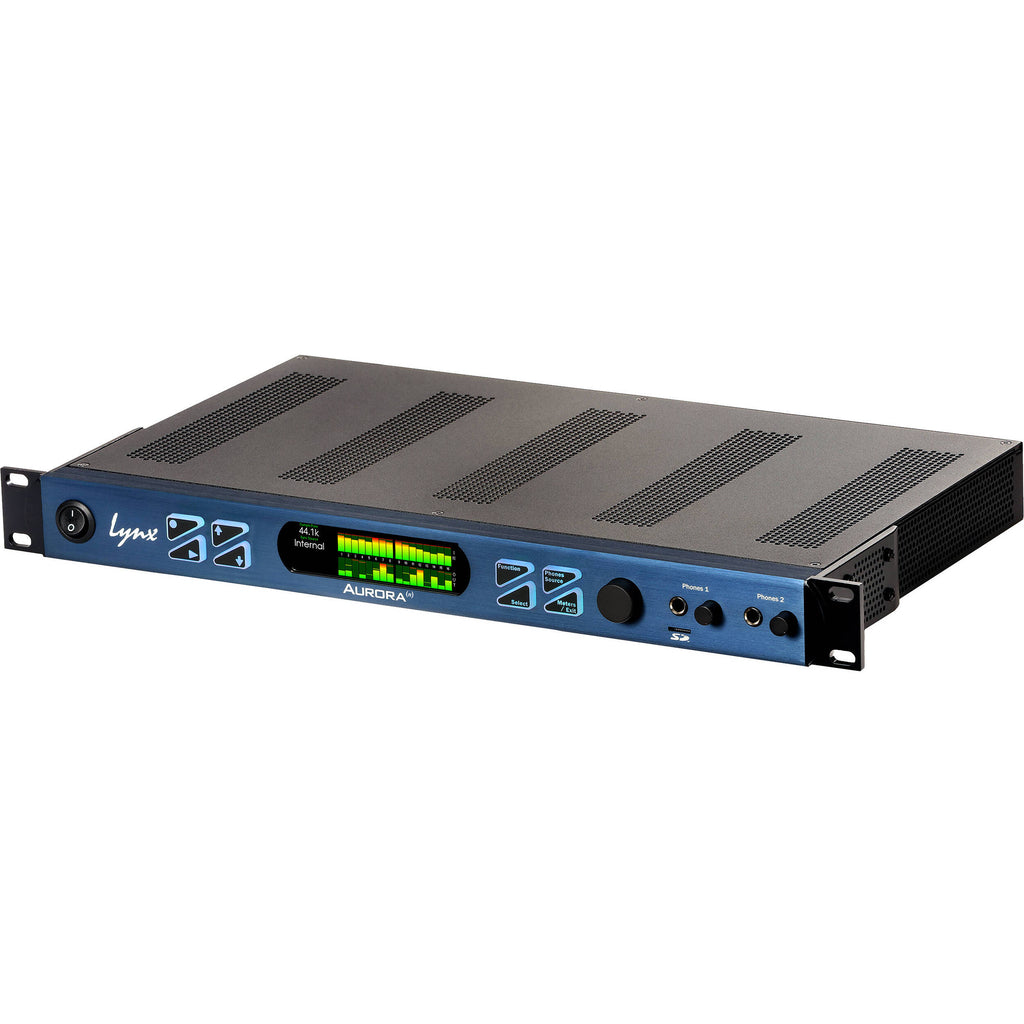

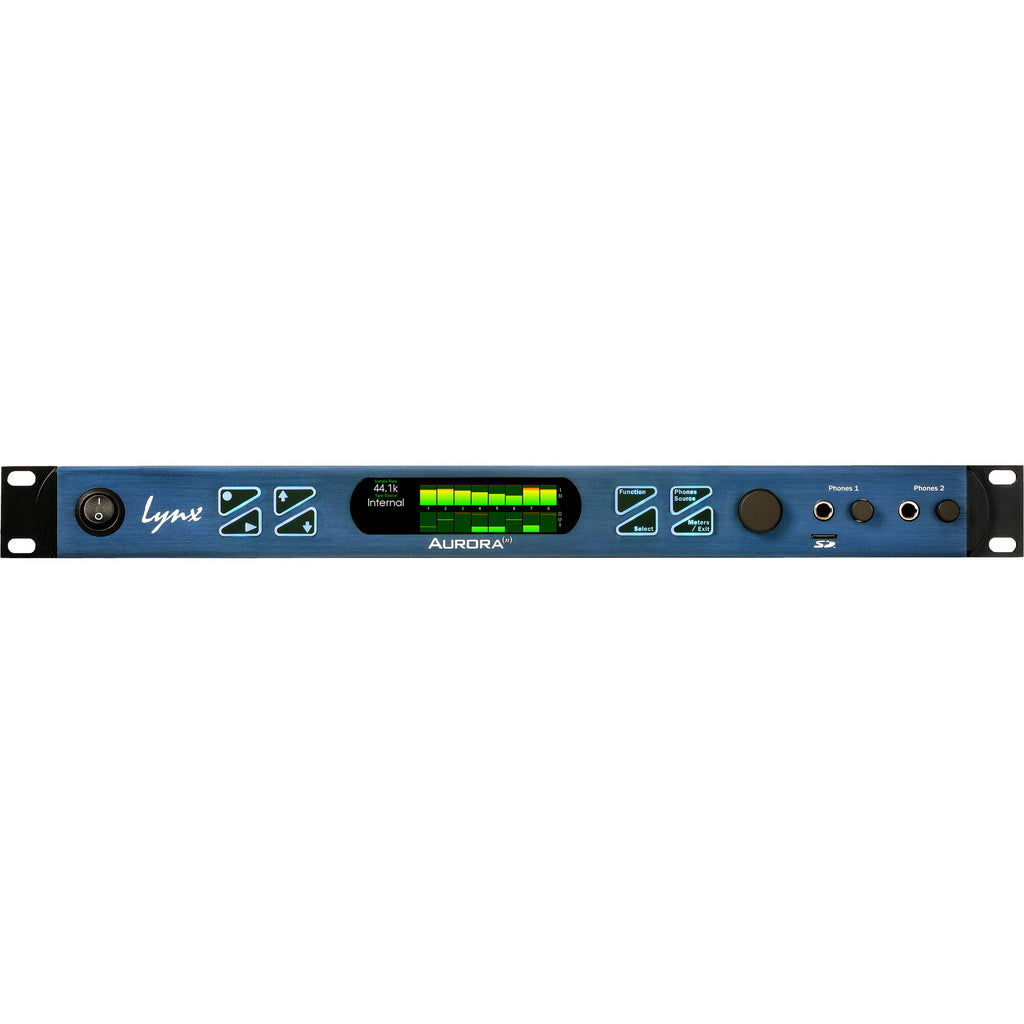

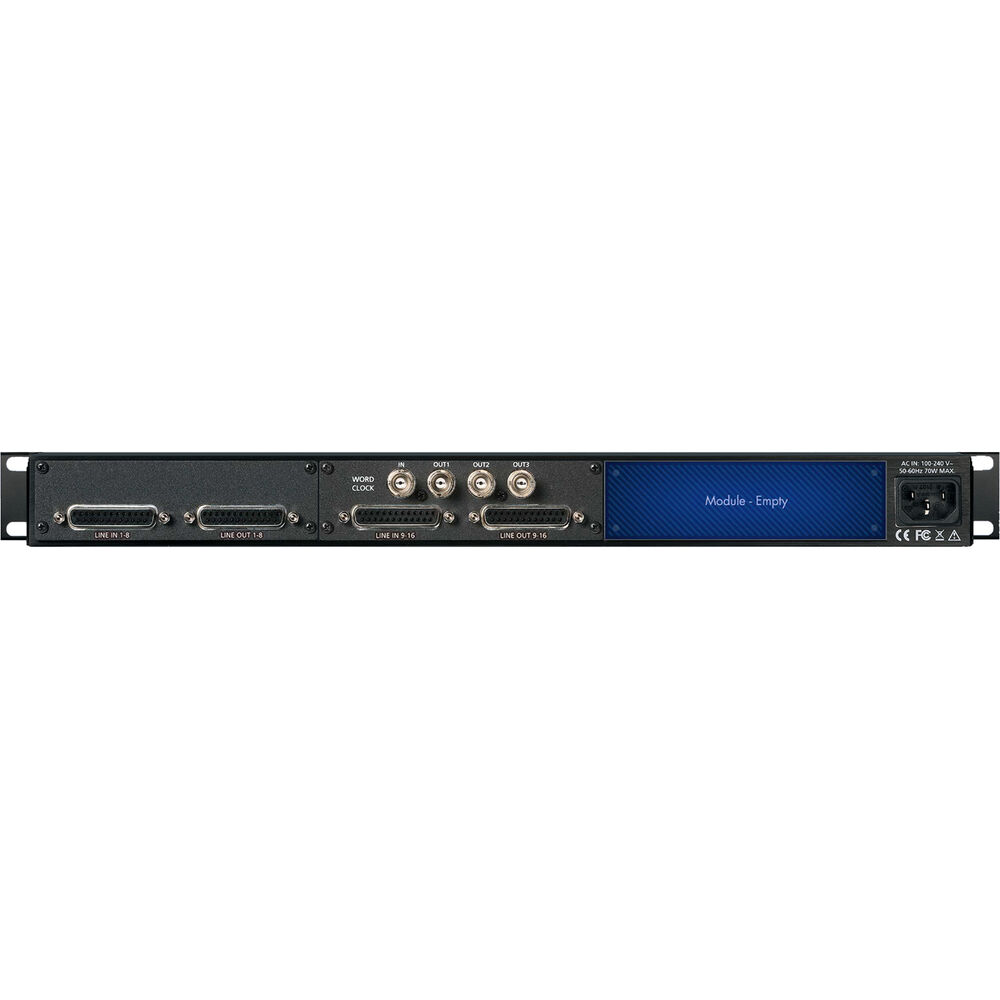

Lynx Studio Technology Aurora(n) Overview
Lynx Studio Technology Aurora(n) Specs
Key Specs
| Form Factor |
Rackmount (Rack-Mountable with Included Hardware)
|
| Converter Type |
AD/DA Converter
|
| Number of Channels |
16x A/D
16x D/A |
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
16
|
| Analog Audio I/O |
2x 1/4" TRS Headphone Output (Front Panel)
1x DB-25 25-Pin Line Input 1x DB-25 25-Pin Line Output |
| Digital Audio I/O |
1x DB-25 AES3 Input
1x DB-25 AES3 Output |
| Converter Type |
AD/DA Converter
|
| Number of Channels |
16x A/D
16x D/A |
| Conversion Formats |
AES3
|
| Display |
Color LCD
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
16
|
| Expansion Slots |
3x Lynx LSlot
|
| Gain/Trim Range |
-10 dBV Up to +4 dBu
|
Connectivity
| Analog Audio I/O |
2x 1/4" TRS Headphone Output (Front Panel)
1x DB-25 25-Pin Line Input 1x DB-25 25-Pin Line Output |
| Phantom Power |
48 V
|
| Digital Audio I/O |
1x DB-25 AES3 Input
1x DB-25 AES3 Output |
| Host Connection |
No
|
| Sync I/O |
1x BNC Word Clock Input
3x BNC Word Clock Output |
| Network I/O |
No
|
| MIDI I/O |
No
|
| Wireless |
No
|
Performance
| Frequency Response |
1/4" Headphone Outputs:
20 Hz to 20 kHz ±0.025 dB 1/4" Line Inputs: 20 Hz to 20 kHz ±0.01 dB 1/4" Line Outputs: 20 Hz to 20 kHz ±0.025 dB (-1dBFS) |
| Maximum Output Level |
1/4" Headphone Outputs:
+18.4 dBu (Front Panel) |
| Impedance |
1/4" Line Inputs:
200 Ohm (Balanced) 100 Ohm (Unbalanced) |
| Dynamic Range |
1/4" Headphone Outputs:
120 dB DB-25 Line Inputs: 119 dB (A Weighted, -60 dBFS method) DB-25 Line Outputs: 120 dB (A Weighted, -60 dBFS Method) |
| THD+N |
1/4" Headphone Outputs:
-108 dB DB-25 Line Inputs: -113 dB DB-25 Line Outputs: -108 dB / 0.0004% (1kHz,-1dBFS, 20kHz filter, +20dBu trim) |
| Crosstalk |
1/4" Headphone Outputs:
-120 dB (Maximum) DB-25 Line Inputs: -130 dB (Adjacent Channel, -1dBFS, 1kHz) DB-25 Line Outputs: -130 dB (Adjacent, -1dBFS, 1kHz) |
Digital Audio
| Sample Rates |
AES3 Input:
Up to 192 kHz (AD/DA Conversion) AES3 Output: Up to 192 kHz (AD/DA Conversion) |
| Sample Rate Conversion |
No
|
| Bit Depths |
24-Bit
|
| Sync Sources |
Word Clock
|
| Clocking |
Word Clock:
Input Termination: 75 Ohms Input Voltage: 2 to 3.3 V p-p Output Voltage: 4.5 V p-p |
Compatibility
| OS Compatibility |
Windows 10
macOS 10.15 |
| Mobile App Compatible |
No
|
| Mobile Device Compatibility |
iPad 2
|
Power
| Power Requirements |
AC/DC Power Adapter (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| AC/DC Power Adapter |
Included
|
| Power Consumption |
70 W (Maximum)
|
Physical
| Rackmount Size |
1 RU (with Included Hardware)
|
| Certifications |
FCC, CE
|
| Dimensions |
19 x 10 x 1.8" / 483 x 254 x 44.5 mm
|
| Weight |
8.6 lb / 3.9 kg
|
