Description
Luminys N5B-4CA2 Overview

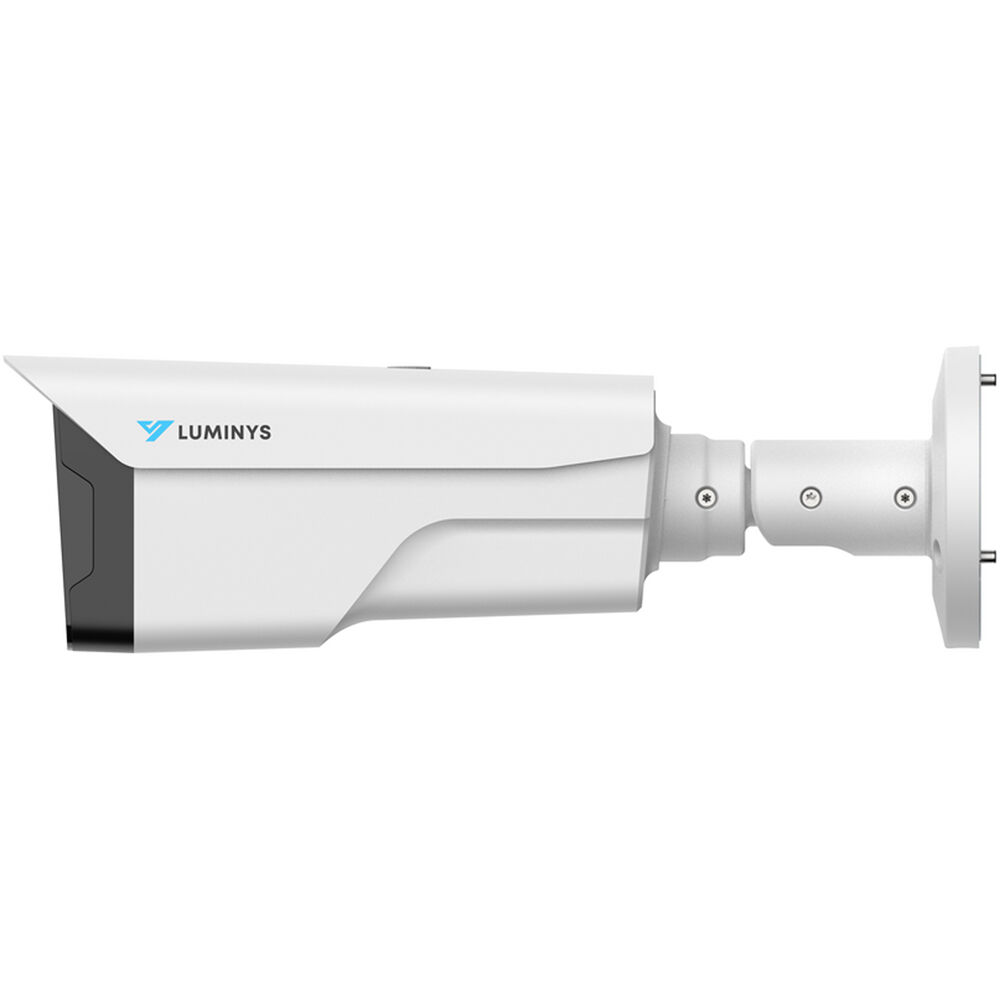

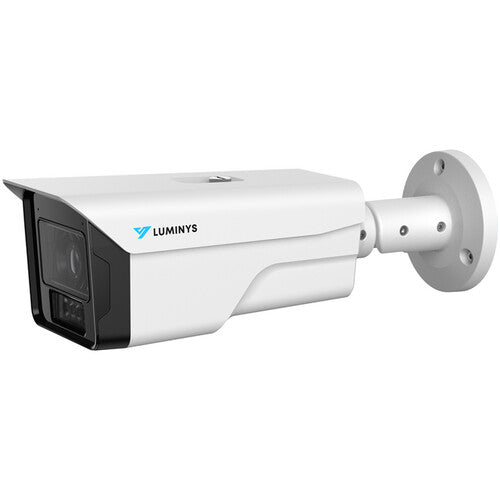

Securely monitor your surroundings with the N5B-4CA2 LumiColor 4MP Outdoor Network Bullet Camera from Luminys. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Four white light LEDs provide full-color illumination for up to 98' of visibility in complete darkness. The camera's 2.8mm fixed lens delivers a 112? horizontal angle of view. A built-in microphone enables the camera to pick up audio. An onboard card slot supports microSD cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
Additional Details
- LumiColor technology enables the camera to capture full-color video day and night via white LEDs
- LumiPower technology enables long-distance PoE transmission by up to 3000'
- LumiSearch technology enables users to find, track, and identify targets in security footage using a reference image (supported when used with LumiSearch-enabled NVRs)
- LumiAnalytics technology utilizes metadata and advanced AI algorithms to track important metrics
- Analytics include line crossing, intrusion, loitering detection, parking detection, intelligent motion detection (supported with alarms for vehicles and humans), face detection, heat map, people counting (tripwire and in-area people counting, queue management with report), and object monitoring
- Day and night switching
- CBR and VBR
- 5.3' close focus range
- Additional features include 130 dB WDR, 3D-DNR, rotation (0 to 270?), mirroring, region of interest for up to 4 zones, and privacy masking for up to 4 zones
- Supported browsers include Chrome and Firefox
- LumiViewer for desktop and Android/iOS
UPC: 810161160792

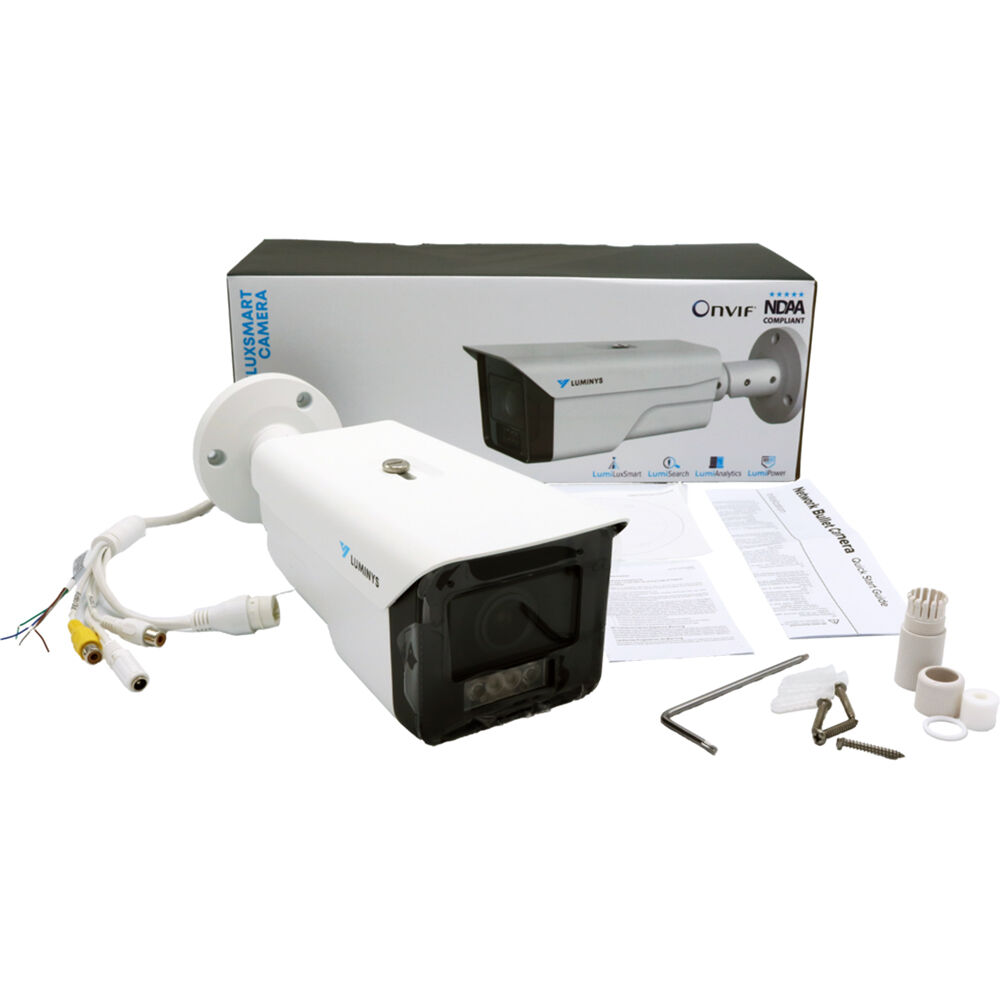

Items Included
- Luminys N5B-4CA2 LumiColor 4MP Outdoor Network Bullet Camera
- L-Shaped Allen Wrench
- Mounting Plate
- Package of Mounting Components
- Package of Screws
- Limited 7-Year Manufacturer Warranty
Additional Resources
Luminys N5B-4CA2 Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Focal Length |
2.8mm
|
| Field of View |
Horizontal: 112?
Vertical: 60? Diagonal: 135? |
| Built-In Microphone |
Yes
|
| Power I/O |
1x RJ45 (12VDC)
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 4 Megapixel
|
| Day/Night |
Yes
|
| DORI Coverage |
With 2.8mm Lens:
Detect: At 190.9' / 58.2 m Observe: At 76.4' / 23.3 m Recognize: At 38.1' / 11.6 m Identify: At 19.0' / 5.8 m |
Exposure Control
| Shutter Speed |
1/100000 to 1/3 Second
|
| Signal-to-Noise Ratio |
56 dB
|
| Minimum Illumination |
0.0005 Lux
0 Lux |
Lens
| Focal Length |
2.8mm
|
| Field of View |
Horizontal: 112?
Vertical: 60? Diagonal: 135? |
| Maximum Aperture |
f/1
|
Video
| Supported Protocols |
Video Streaming Protocol
API/ARP/DDNS/DHCP/DNS/FTP/HTTP/ICMP/IGMP/IPv4/v6/NFS/NTP/ONVIF Profile G/ONVIF Profile S/ONVIF Profile T/PPPoE/QoS Layer 3 DiffServ/RTCP/RTMP/RTP/RTSP/SDK/SFTP/SMTP/TCP/UDP/UPnP |
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2688 x 1520 up to 30.00 fps |
| Multi-View Streaming |
Yes: 3 Streams
|
Control
| Camera Angle Adjustment |
Rotation: 0 to 360?
Vertical: 0 to 90? Rotation: 0 to 360? |
Networking
| Security |
HTTPS, IEEE 802.1X
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD (Unspecified Type) [512 GB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
One-Way
|
| Audio Formats |
AAC, G.711, PCM
|
| Built-In Microphone |
Yes
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Abandoned Object, Face Detection, Heat Mapping, Intrusion Detection, Loitering, Motion Detection, Object Counting, Object Detection, Object Removal, Parking Detection, People Counting, People Detection, Queue Management, Vehicle Detection, Virtual-Line Crossing Detection
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x RJ45 (12VDC)
|
| Power Consumption |
12 VDC 2.7 to 8.9 W
PoE: 4.2 to 11.6 W |
Environmental
| Operating Conditions |
-40 to 140?F / -40 to 60?C up to 95% Humidity
|
| Storage Conditions |
-40 to 140?F / -40 to 60?C
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP67)
|
General
| Materials |
Metal
|
| Certifications |
FCC, IC, NDAA
|
| Illumination |
4x White LEDs up to 98.4' / 30 m
|
| OS Compatibility |
Android/iOS
|
| Dimensions (W x H x D) |
3.9 x 3.5 x 11.4" / 98.6 x 88.2 x 290.6 mm
|
| Weight |
2.4 lb / 1.1 kg (Body Only)
|
