Description
Luminys K56-8L1A2 Overview
Monitor your property with the NDAA-compliant K56-8L1A2 8-Channel UHD 4K NVR with 2TB HDD & Six 5MP LumiLuxLite Turret Cameras Kit from Luminys. The 8-channel NVR can manage and record from up to eight cameras. It is equipped with an HDD slot preinstalled with 2TB of storage (10TB HDD capacity). The H.265/H.264 encoding and MJPEG video compression ensure high-quality recording and playback. Remote management is possible via the LumiViewer app for iOS and Android.
The included 5MP turret cameras capture 2880 x 2560 resolution video from 2.8mm fixed lenses that have a 108.3? horizontal angle of view. The cameras have a night vision range of up to 98' and a white light illumination range of 66'. They are rated IP66 for outdoor use.
Additional Details for NVR
- Supports intelligent motion detection
- Smart search via target classification and time
- RCA audio input and output
- ONVIF compliant
- 802.3af/at PoE standard
Additional Details for Turret Cameras
- IR cut filter for day and night switching
- Built-in microphone and speaker for 2-way talk
- Dual streaming
- CBR and VBR
- Privacy masking for up to four zones
- Intelligent motion detection with alarms for vehicles and humans
- Supports microSD cards up to 128GB (available separately)
- Complies with ONVIF profile S
- IP66-rated metal housing for safe outdoor use
- Supported browsers include Chrome, Firefox, and Edge
UPC: 810161160983
Items Included

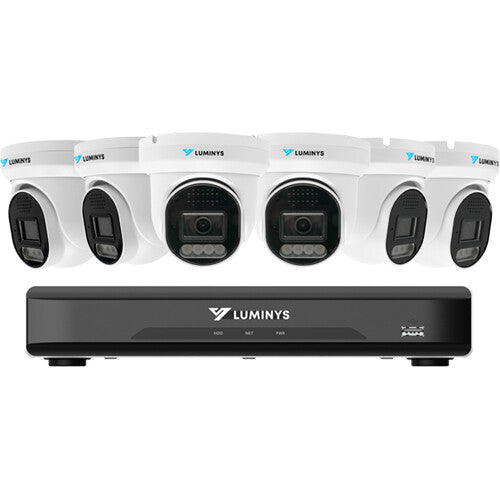

- Luminys K56-8L1A2 8-Channel UHD 4K NVR with 2TB HDD & Six 5MP LumiLuxLite Turret Cameras Kit
- R31-8PA2 8-Channel NVR
- 6 x N3T-5KA2 5MP Turret Camera
- Limited 7-Year Manufacturer Warranty
Additional Resources
Luminys K56-8L1A2 Specs
NVR
| Video Inputs |
8
|
| Recording Resolutions |
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1, VGA, CIF
|
| Output Resolutions |
HDMI: UHD 4K (3840 x 2160), 1920 x 1080, 1280 x 1024, 1280 x 720
VGA: 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Live View / Playback |
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1, VGA, CIF
|
| Video Codecs |
H.265, H.264, H.264H, H.264B, MJPEG
|
| Decoding Capability |
Two-Channel: 8 MP at 30 fps
Eight-Channel: 1080p at 30 fps |
| Synchronous Playback |
1, 4, 8 Views
|
| Analytics |
Supported Analytics by Camera
Intelligent Motion Detection for Eight Channels Smart Search by Target Classification and Time |
| Number of SATA Ports |
1
|
| Installed HDD |
2 TB
|
| HDD Capacity |
10 TB
|
| Network |
1 x Self-Adaptive RJ45 Port (1000M)
|
| PoE Ports |
8 x Self-Adaptive RJ45 Port (100M)
|
| USB |
Front Panel: 1 x USB 2.0
Rear Panel: 1 x USB 2.0 |
| Audio |
Input: 1 x RCA Channel
Output: 1 x RCA Channel |
| Network Bandwidth |
Incoming/Recording: 80 Mb/s
Outgoing: 60 Mb/s |
| Network Protocols |
HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
|
| Interoperability |
ONVIF, RTSP
|
| PoE Standard |
802.3af/at
|
| Client |
LumiViewer, LumiViewer Mobile App, LumiCloud (Cloud Subscription Available Separately)
|
| Certifications |
FCC, NDAA
|
| Power Supply |
48/53 VDC, 2/1.8 A
|
| Power Consumption |
<10 W (without HDD)
PoE: 72 W (Maximum Output for Single Port: 25.5 W) |
| Operating Conditions |
10 to 131?F / -10 to 55?C at 10 to 93% Humidity
|
| Dimensions (W x L x H) |
10.2 x 9.2 x 1.8" / 260 x 233.2 x 43.7 mm
|
| Weight |
4.6 lb / 2.1 kg (without HDD)
|
Camera
| Series |
N3 Series (Starter)
|
| Image Sensor |
1/2.7" 5 MP Progressive Scan CMOS
|
| Maximum Resolution |
2880 x 1620
|
| Minimum Illumination |
Color: 0.01 Lux at f/1.6 (with AGC On)
B&W: 0 Lux with IR Light On |
| Illuminator |
4 x White Light LEDs, 4 x IR LEDs, Supports LumiLuxLite
Auto/Manual Illuminator Control |
| Illumination Distance |
IR: 98.4' / 30 m
White Light: 65.6' / 20 m |
| Electronic Shutter Speed |
Auto/Manual
1/20,000 to 1/5 |
| Angle Adjustment |
Horizontal: 0 to 355?
Vertical: 0 to 80? Rotation: 0 to 360? |
| S/N Ratio |
>38 dB
|
| Iris Type |
Fixed
|
| Lens Type |
Fixed
|
| Focal Length |
2.8mm
|
| Maximum Aperture |
f/1.6
|
| Angle of View |
Horizontal: 108.3?
Vertical: 59.9? Diagonal: 126.8? |
| Video Codecs |
H.265, H.264 (Standard)
|
| Streams |
2
|
| Resolution |
2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, D1 (704 x 576), VGA (640 x 480), CIF (352 x 288)
|
| Maximum Frame Rate |
Main Stream: 2880 x 1620 at 25 fps
Sub Stream: D1 at 25 fps |
| Video Bit Rate |
H.265: 128 to 6144 kb/s
H.264: 64 to 1024 kb/s |
| Bit Rate Control |
CBR/VBR
|
| Day/Night |
Automatic (ICR), Color, Black and White
|
| Light Compensation |
Digital Wide Dynamic Range (DWDR), BLC, HLC
|
| Image Angle |
0/180?
|
| Mirror |
Mirror Rotation Supported
|
| Privacy Masking |
4 Zones
|
| Intelligent Motion Detection |
Supported With Alarms for Vehicles and Humans
|
| Audio Codec |
G.711U
|
| Audio Interface |
Input: Built-In Microphone
Output: Built-In Speaker |
| Alarm Event Detection |
Motion Detection, iMD
|
| Network Interface |
RJ45 100M
|
| Network Protocols |
HTTP, TCP/IP, IPv4, DHCP, NTP
|
| Interoperability |
ONVIF Profile S, SDK
|
| Supported Browsers |
Chrome, Firefox, Edge
|
| Storage |
FTP, SFTP, microSD Card (Maximum 128 GB)
|
| Power Supply |
12 VDC (-15% to +25%), PoE (802.3af)
|
| Power Consumption |
Maximum (White Light On): 8.5 W
Normal (IR Off): 2.0 W |
| Operating Temperature |
-22 to 140?F / -30 to 60?C
|
| Operating Humidity |
<90% RH
|
| IP Rating |
IP66
|
| Housing Material |
Metal
|
| Certifications |
FCC, IC, NDAA
|
| Dimensions (Diameter x Height) |
4.4 x 4" / 111 x 100.8 mm
|
| Weight |
1 lb / 0.5 kg
|
Packaging Info
| Package Weight |
14.055 lb
|
| Box Dimensions (LxWxH) |
15.3 x 12.7 x 11.7"
|
