Lumens DC132U HD/2K USB Document Camera

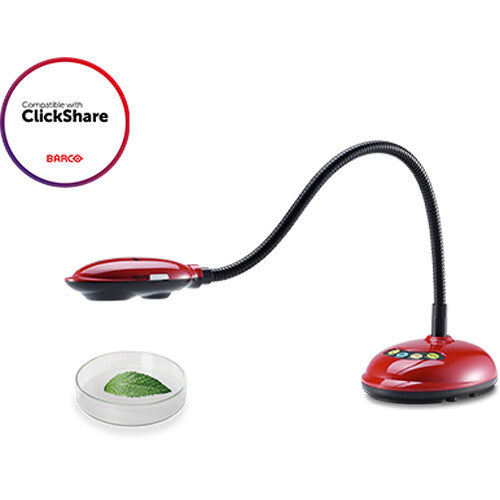

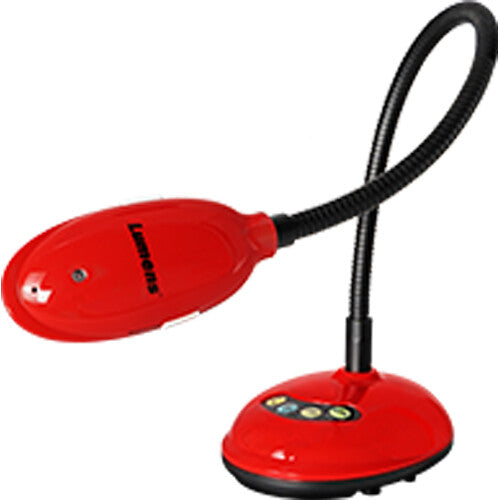

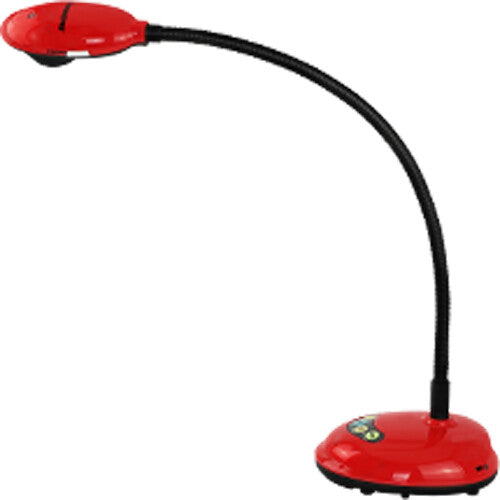

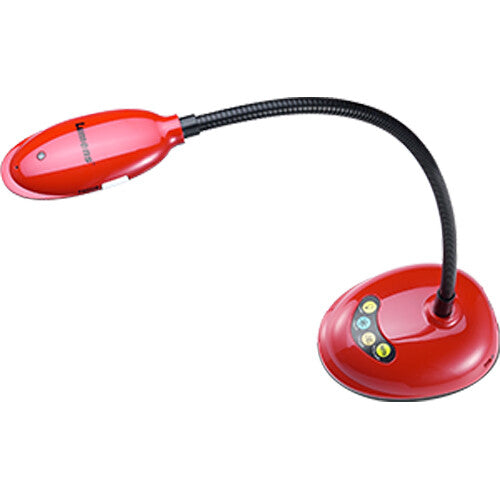

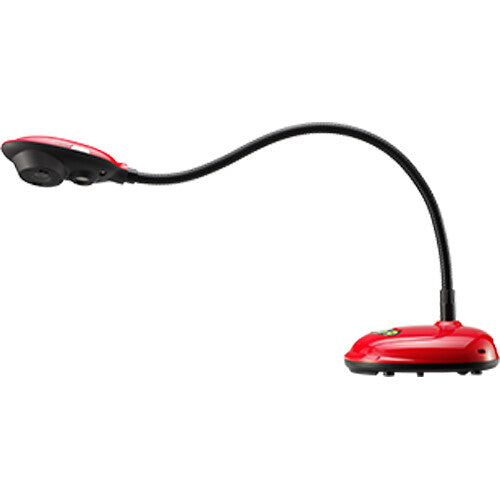

The ultra-compact DC132U HD/2K USB Document Camera from Lumens features a gooseneck design for 1-on-1, classroom, and distance learning, allowing you free range to adjust the position of the camera to provide a wide view of your subject. The camera head has an integrated LED for providing illumination and a sharp image no matter the ambient light conditions and plugs into your computer with a USB-B cable for use with Lumens' Ladibug software. The camera head captures images and video at up to QXGA 2048 x 1536 resolution, and it has a maximum shooting area of 18.8 x 14.1" when used as a document camera.

Twist the gooseneck to any angle to view a document, face the presenter, or angle towards the class for a live video conference.

The DC132U produces professional-quality images with vivid colors. It outputs 1080p or 2K video with image and video recording up-to 30 frames per second. The DC132U is ideal for use in education and training.

At the touch of a button, the camera quickly achieves accurate focus, color balance, and image exposure.

The camera can capture documents and objects larger than A3. Adjust the position of the camera for close-up or wide-angle imaging. Zoom into the image using the provided Ladibug software.

Take extreme close-ups (1.6" minimum distance) and capture detailed images of small objects such as insects.

Lumens DC132U HD/2K USB Document Camera Specs

Sensor	1/3" CMOS
Sensor Resolution	Effective: 3.3 Megapixel
Zoom	8x (Optical) 2x (Digital)
Capture Area	189 x 141.7" / 480 x 360 cm
Video I/O	No
Media Card Slots	No

Sensor	1/3" CMOS
Sensor Resolution	Effective: 3.3 Megapixel
Zoom	8x (Optical) 2x (Digital)
Frame Rate	2048 x 1536 @ 30 fps 1920 x 1080 @ 30 fps 1280 x 720 @ 30 fps
Output Resolution	2048 x 1536 1920 x 1080 1600 x 1200 1280 x 720 1024 x 768 800 x 600 640 x 480
Minimum Focus Distance	2.0" / 5.0 cm

Capture Area	189 x 141.7" / 480 x 360 cm
Video I/O	No

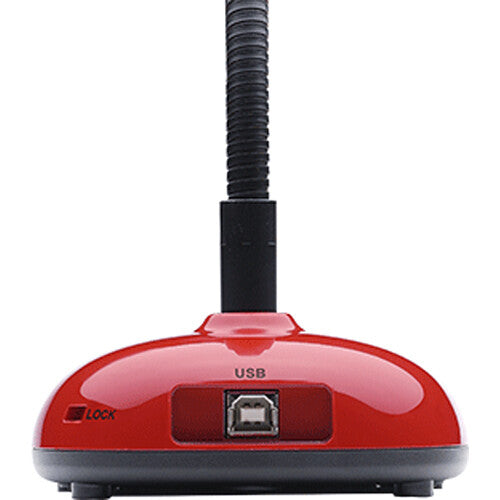

Other I/O	1x USB-B 2.0
Media Card Slots	No
Storage Capacity	No
Annotation	Yes

Aspect Ratio	16:9
Image Rotation	0°, 90°, 180°, 270°

Built-In LED Lighting	1 (Head)
Built-In Mic	Yes
Focus Modes	Auto, Manual
Image Capture Modes	Single, Continuous
Multi-Input Support (PIP/PBP)	Picture-in-Picture (PIP)
Whiteboard Compatibility	Yes

OS Compatibility	Chrome OS / Windows / macOS
OS Compatibility	Chrome OS Windows macOS

Power Source	Power Adapter
Power Consumption	2.2 W

Kensington Lock Slot	Yes
Dimensions	4.2 x 11.0 x 5.4" / 106.0 x 280.0 x 136.0 mm (Folded) 4.2 x 15.0 x 13.8" / 106.0 x 380.0 x 350.0 mm (In-Use)
Weight	2.65 lb / 1.2 kg

Package Weight	3.635 lb
Box Dimensions (LxWxH)	14.3 x 6.9 x 6"
