| ₹ 32350.0 includes GST and import duties. | |
| B2B customers can avail ₹ 4933.38 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Lumens F20 Overview
- 1Description
- 2Grab-and-Go Design
- 3Image Quality
- 4Dual Document Camera/Webcam Design
- 5Three-Level LED Lighting as Fill Light
- 6Collaboration Tool

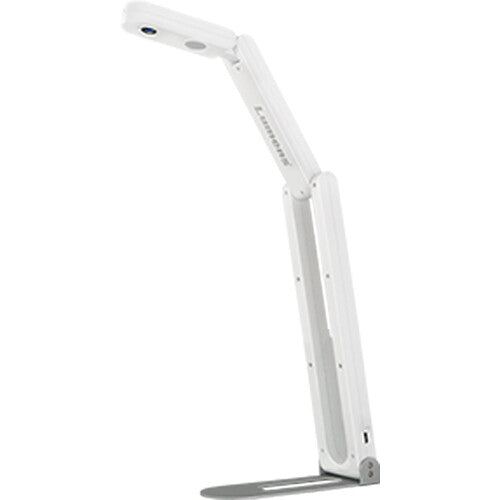

The DC-F20 HD/2K USB Document Camera from Lumens is a portable document camera that is powered using a USB port and can go with you from classroom to classroom or meeting to meeting so your students or colleagues can share work with each other. The camera head has an integrated LED for providing illumination and a sharp image no matter the ambient light conditions. A built-in mic allows you to use the DC-F20 as a webcam, or for your voice to be heard when giving remote lessons. The camera head outputs images and video at up to 2592 x 1944 resolution and it has a maximum shooting area of 17.8 x 13.4" when used as a document camera.
Downloadable software for Windows, macOS, and Chrome allows you to control the camera, and it supports UVC/UAC video drivers for USB 2.0 transmission of video and stills. It has a control base that features local control of its functions, and it supports image rotation of 180° as well as image flip and mirror functions. The unit supports on-board image annotation via downloadable software.
In the Box
- Lumens DC-F20 HD/2K USB Document Camera
- USB-A to USB-C 2.0 Cable (5.9")
- Limited 5-Year Manufacturer Warranty
- Description
- Grab-and-Go Design
- Image Quality
- Dual Document Camera/Webcam Design
- Three-Level LED Lighting as Fill Light
- Collaboration Tool
Lumens F20 Specs
| Sensor |
1/4" CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| Zoom |
6x (Optical)
16x (Digital) |
| Capture Area |
17.8 x 13.4" / 45.3 x 34 cm
|
| Sensor |
1/4" CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| Zoom |
6x (Optical)
16x (Digital) |
| Frame Rate |
1920 x 1080 @ 30 fps
1280 x 720 @ 30 fps |
| Output Resolution |
2592 x 1944
2560 x 1440 1600 x 1200 1920 x 1080 1280 x 720 1024 x 768 960 x 540 640 x 480 640 x 360 |
| Minimum Focus Distance |
2.4" / 6.0 cm
|
| Capture Area |
17.8 x 13.4" / 45.3 x 34 cm
|
| Video Connections |
No
|
| Audio Connections |
No
|
| Other I/O |
1 x USB-C 2.0
|
| Media Card Slots |
No
|
| Storage Capacity |
No
|
| Annotation |
Yes
|
| Aspect Ratio |
16:9
|
| Image Rotation |
0°, 180°
|
| Built-In LED Lighting |
Yes
|
| Built-In Mic |
Yes
|
| Focus Modes |
Auto, Manual
|
| Remote Control |
No
|
| Whiteboard Compatibility |
Yes
|
| OS Compatibility |
Chrome OS
Windows macOS *As of October, 2022: Check with manufacturer for the most up-to-date compatibility |
| Supported Video Compression |
MJPEG, YUV
|
| Power Source |
USB Bus-Powered Port
|
| Power Consumption |
2.2 W
|
| Kensington Lock Slot |
Yes
|
| Dimensions |
2.6 x 10.4 x 1.0" / 65.0 x 265.0 x 24.5 mm (Folded)
2.6 x 6.9 x 15.5" / 65.0 x 175.1 x 392.5 mm (In-Use) |
| Weight |
12.7 oz / 360 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 31703.0 |
| 3-5 | ₹ 31379.5 |
| 5-10 | ₹ 30732.5 |
| 10+ | ₹ 30085.5 |
Bulk discount will be automatically applied during checkout based on quantity.
