Description

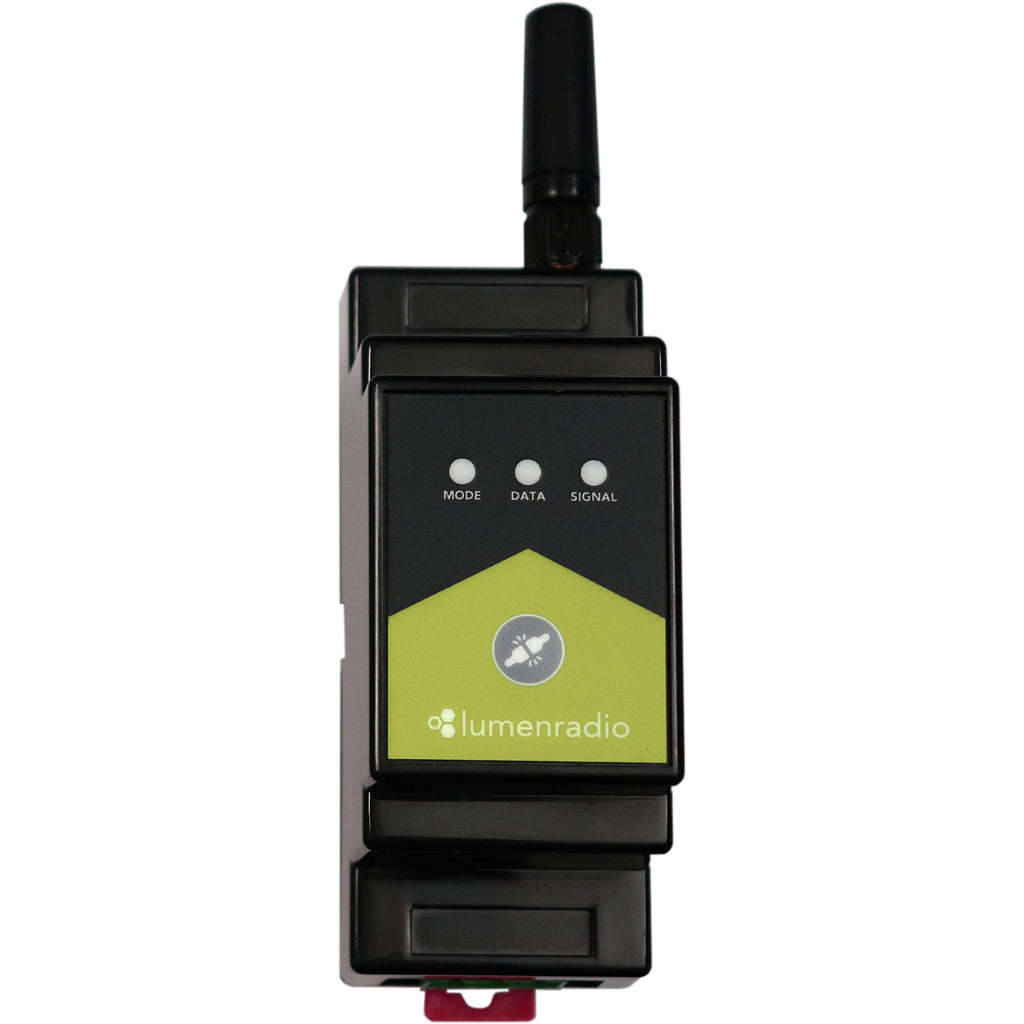

LumenRadio Galileo RX Overview
Take your CRMX lighting projects to the next level with the Galileo RX Receiver from LumenRadio. This receiver supports one full DMX/RDM universe of up to 512 channels, RDM, and W-DMX G3, G4, G4S, and G5 protocols. Based on advanced and reliable CRMX technology, the receiver brings you advanced features for the most demanding situations, both indoor and outdoor. Some of the features are cognitive coexistence, 5 ms latency, 128-bit encryption, error correction, and easy and quick configuration via the CRMX Toolbox app.
Supported Protocols
- DMX/RDM
- CRMX² and CRMX Classic
- W-DMX G3, G4, G4S, and G5
- Bluetooth 5.0 configuration via app
Other Features
- DIN-rail form factor
- 2402-2480 MHz frequency
- 7-280 mW output power
- 5 ms latency
- 128-bit encryption
- Forward-error correction
- Incudes RP-SMA antenna
- Three integrated LEDs display the device's status
- Accepts optional repeater function with in-app upgrade
- For outdoor use, this device must be installed in an IP65 enclosure
In the Box
- LumenRadio Galileo RX Receiver
- RP-SMA Antenna
- 2-Pin Terminal Plug for Power
- 3-Pin Terminal Plug for Data
- Limited 1-Year Manufacturer Warranty
LumenRadio Galileo RX Specs
Key Specs
| Inputs/Outputs |
2x Terminal 2-Pin (Power)
3x Terminal 3-Pin (DMX) 1x (Antenna) |
| Channels |
512 (DMX)
|
| Wireless |
Bluetooth 5.0 / Wireless DMX
|
| Power Source |
AC Adapter
|
| Protocol |
CRMX, DMX512, RDM, W-DMX
|
General
| Inputs/Outputs |
2x Terminal 2-Pin (Power)
3x Terminal 3-Pin (DMX) 1x (Antenna) |
| Channels |
512 (DMX)
|
| Dimming |
Optional
|
| Cooling System |
No
|
| Latency |
5 ms
|
| Wireless |
Bluetooth 5.0 / Wireless DMX
|
| Frequency |
2.4 GHz
|
Power
| Power Source |
AC Adapter
|
| Power Consumption |
2.5 W
|
| AC Input Power |
120 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 to 24 VDC
|
Compatibility
| Protocol |
CRMX, DMX512, RDM, W-DMX
|
Environmental
| Operating Temperature |
-4 to 131°F / -20 to 55°C
|
| Operating Humidity |
0 to 90%
|
| Storage Temperature |
-22 to 176°F / -30 to 80°C
|
| Certifications |
CE, FCC, IC, NRTL, KC, UKCA
|
| Environmental Protection |
No
|
Physical
| Rack Mount |
Yes
|
| Dimensions |
3.7 x 2.3 x 1.4" / 93.0 x 58.7 x 36.5 mm
|
| Weight |
3 oz / 85 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 108789.8 |
| 3-5 | ₹ 107679.7 |
| 5-10 | ₹ 105459.5 |
| 10+ | ₹ 103239.3 |
Bulk discount will be automatically applied during checkout based on quantity.
