Description

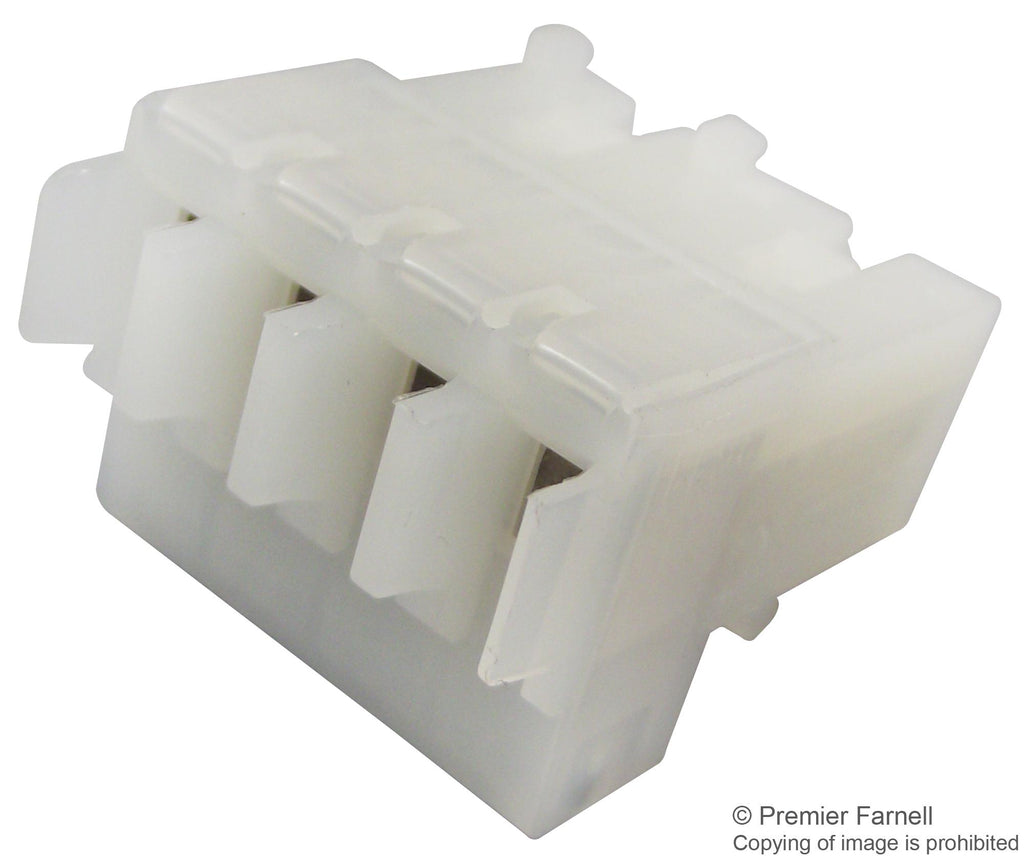

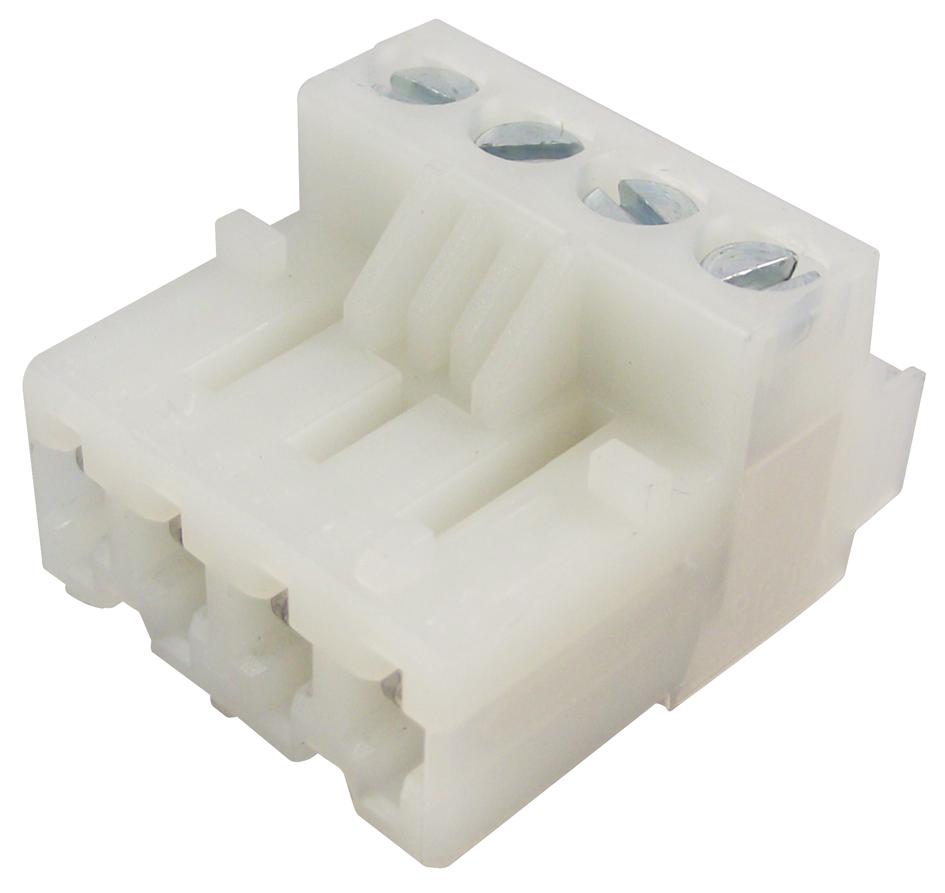

The 3611 04 K01 is a 4-pole Wire-to-board Connector, RAST 5 series, indirect mating with screw terminal. Lift clamp with protection against misplacing, interior locking and consecutive placement without loss of pitch. UL94V-2 rated polyamide insulating body, tin-plated contacts. Suitable for us with 3618, 361899, 361899-1, 361899-2, 361899-3, 3618-1, 3618-2, 3618-3, 3641, 364197, 3642, 3643, 3644, 3645, 3647, 3648, 3649, 3671, 367199, 3672, 367299, 3673, 367399, 3674, 367499, 3676, 3677, 3678, 3679, 3680, 3683 tab headers.
- 4.0mm² Solid wire
- 2.5mm² Stranded wire
- 2.5mm² Stranded wire with ferrule
- <=5mR Contact resistance
- 10A Current rating
- 250VAC Voltage rating
- >=2.6mm Creepage distance
- >=2.6mm Clearance
- >10GR Insulation resistance
Industrial, Building Automation
Other details
| Brand | LUMBERG |
| Part Number | 3611 04 K01 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Product Change Notice EN | |
