Description
Lumantek EZ-MD+ Overview

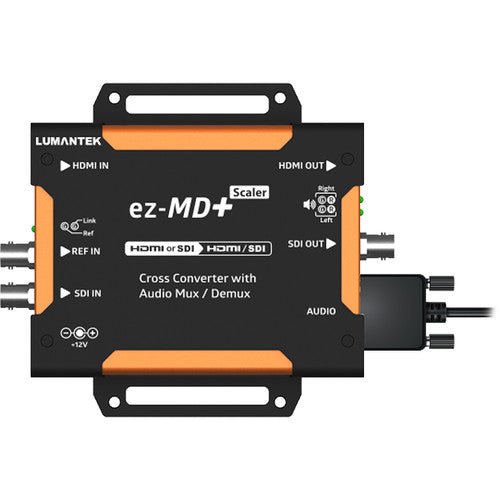

Lumantek ez-MD+ SDI and HDMI Cross Converter
The compact HDMI/SDI Cross Converter from Lumantek converts HDMI to SDI signals or SDI to HDMI signals. The converter can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60 and lets you choose between a 16:9 or 4:3 video displaying ratio. A 9-pin serial port allows embedding and de-embedding of audio with the included external 9-pin to XLR breakout cable. A 10-step rotary switch controls the audio delay of the video source at 50ms steps.
Frame Synchronization
There is a Free Running, Input Lock, and Genlock mode to synchronize your video signal. The Genlock system ensures proper synchronizing of the signals when aligning the source with an external signal.
UPC: 887367000283
In the Box
- Lumantek HDMI/SDI Cross Converter with Audio Mux/Demux and Scaler
- 9-Pin to XLR Breakout Cable
- 12 VDC, 1 A Power Adapter
- Limited 1-Year Warranty
Lumantek EZ-MD+ Specs
Input
| Video Input Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI |
| Input Video Format | SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94/60 fps PAL: 50 fps HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94/60 fps PAL: 50 fps |
Output
| Video Output Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI |
| Output Video Format | SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps |
Connectivity
| Other I/O | 1 x DE-9/DB-9 Input/Output 1 x BNC Reference Input 1 x USB Micro-B |
Power
| Power Connector | 1 x Barrel (11 to 13 VDC) Input |
| Power Consumption | Power Supply: 100 to 240 VAC at 1 A (8 W) |
Environmental
| Operating Temperature | 32 to 113°F / 0 to 45°C |
General
| Dimensions | 5.12 x 3.95 x 1.06" / 130 x 100.4 x 26.9 mm |
| Weight | 14.11 oz / 400 g |
Packaging Info
| Package Weight | 1.595 lb |
| Box Dimensions (LxWxH) | 8.1 x 6.1 x 3.5" |
