Description
Lumantek BAT-SD Overview

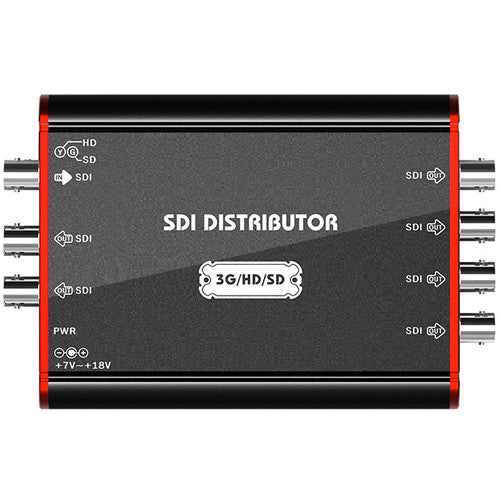

The 1x6 HD/SD-SDI Distributor from Lumantek distributes a single SDI signal to six SDI devices simultaneously. Each output is reclocked for long signal strength.
Supports 3G/HD/SD-SDI signal
Wide-range power input
Low power consumption
UPC: 887367000108
In the Box
- Lumantek 1x6 HD/SD-SDI Distributor
- Limited 1-Year Warranty
Lumantek BAT-SD Specs
| Input | 1 x BNC, SDI (75 Ohms) |
| Output | 6 x BNC, SDI (75 Ohms) |
| Input Cable Length | 3G-SDI: 509' / 155 m HD-SDI: 558' / 170 m SD-SDI: 820' / 250 m |
| Rise/Fall Time | 3G-SDI: 100 ps HD-SDI: 100 ps SD-SDI: 600 ps |
| Video Output Voltage | 720 to 880 mVpp Typical: 800 mVpp |
| Overshoot | -10 to 10% |
| Input Power | 7 to 18 VDC |
| Power Consumption | >2 W |
| Dimensions | 5.2 x 3.9 x 1.1" / 13.1 x 9.9 x 2.8 cm |
| Weight | 13 oz / 370 g |
Packaging Info
| Package Weight | 2.15 lb |
| Box Dimensions (LxWxH) | 8.3 x 5.9 x 3.85" |
