Description

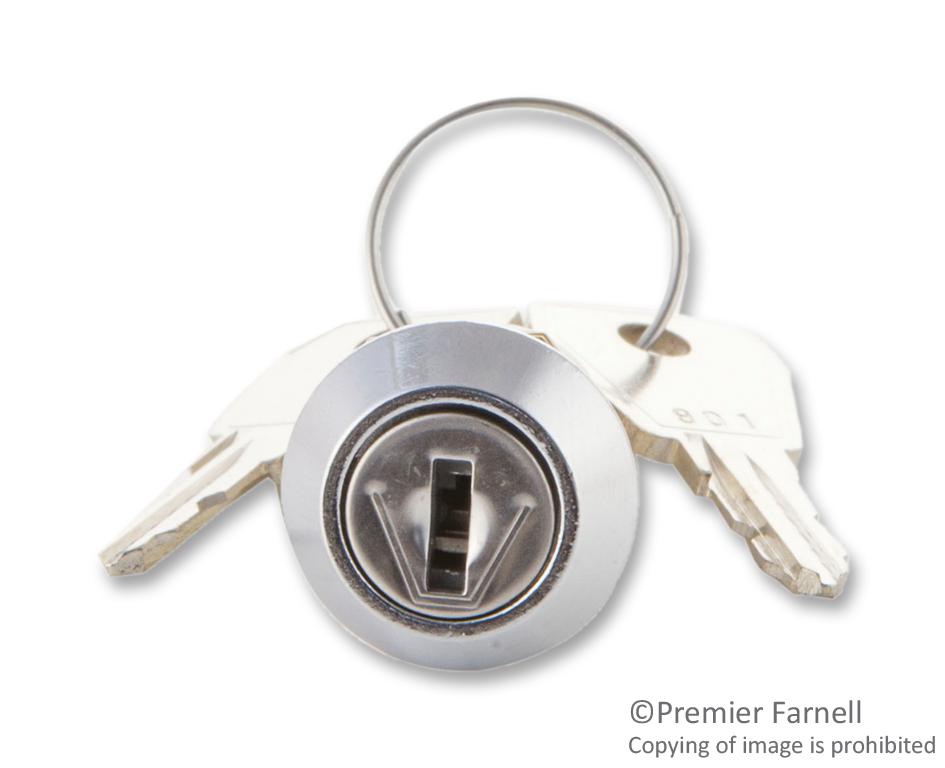

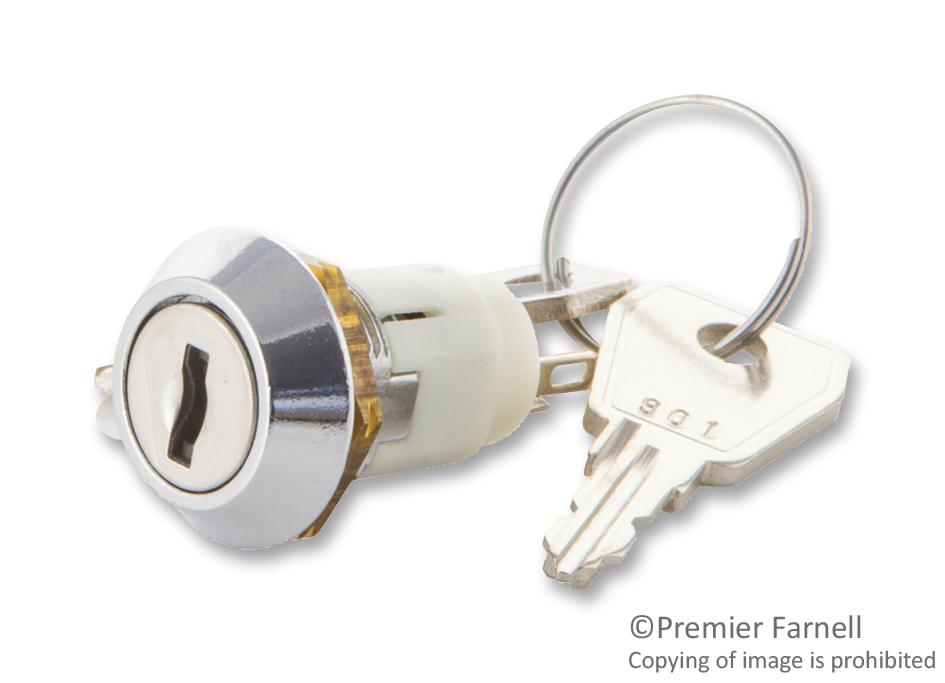

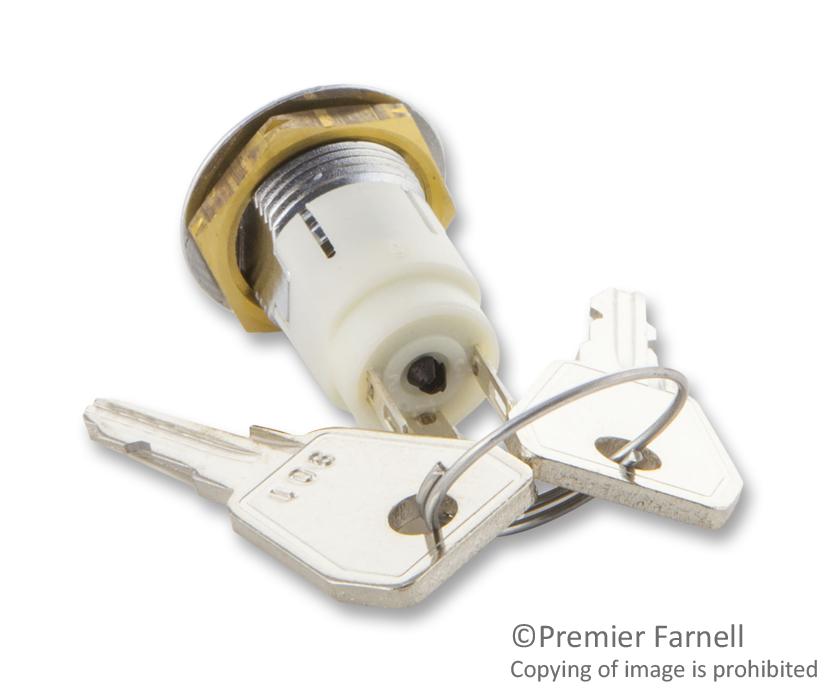

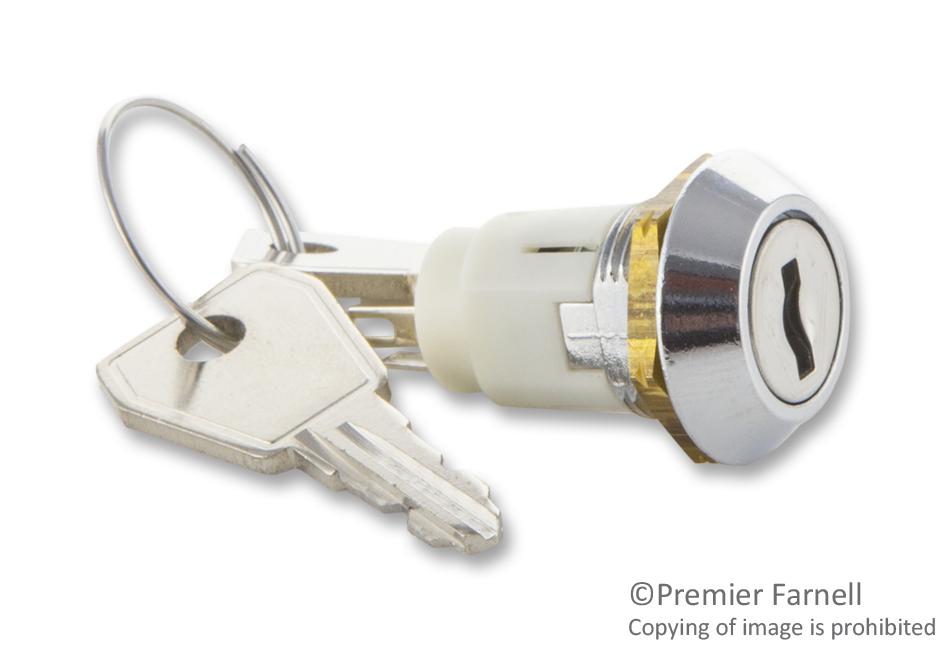

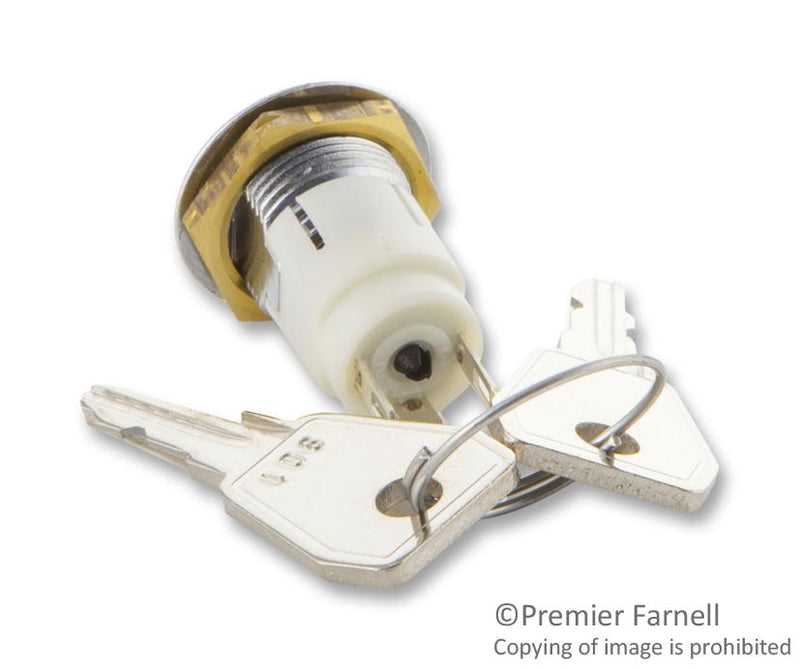

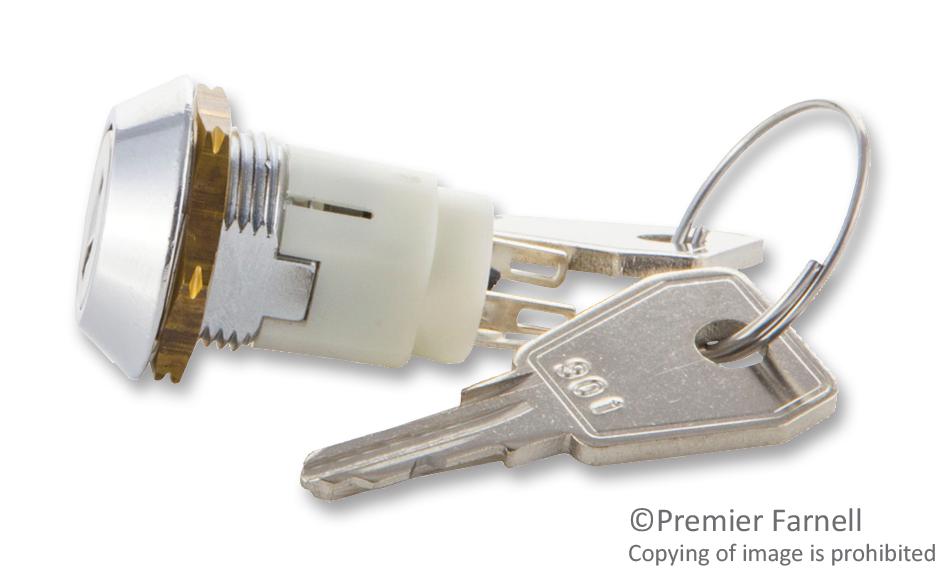

The SRL-5-E-S-2 is a single-pole double-throw 1-position Miniature Key Lock Switch with 1NO-1NC contact type, flat actuator style. Easily assembled through front of equipment panel. Rear projection less than 30mm from panel. Molded bezel for parallel lock headed versions.
- >10000 Cycles life
- 750VDC Initial proof voltage
- >999MR at 500VDC Initial insulation resistance
- <20mR Initial contact resistance
- Nickel-plated mild steel key
- Ag-plated brass CZ108 contact
- Polyamide 6.6 GF molding
- Bright Cr-plated zinc alloy lock housing
- UL94V-0 Flammability rating
Industrial
Other details
| Brand | LORLIN |
| Part Number | SRL-5-E-S-2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
