Description
The CK series high-quality multi-pole Rotary Switch for low power applications. It is not designed as a mains isolating switch, although capable of handling mains voltage. Gold plating is recommended for signal switching below 0.4VA.
- Single wafer switch
- Moulded 27.5mm diameter
- Standard 30° indexing
- Solder or printed circuit board terminals
- Up to 4 poles per switch
- Maximum 12 positions
- Shorting (make before break 30° indexing only) or non-shorting (break before make) contacts
- Adjustable stop to restrict number of positions
- Special options 60° or 90° indexing, continuous rotation
- Optional reinforcement ring
- Fixed stop, UL-V0 rated material
- No bush versions available
- Rear drive versions available
- Sealed PCB termination available
- Gold flashed or gold plated contacts and spindles with special flats, slots or knurls
Industrial
Other details
| Brand | LORLIN |
| Part Number | CKL6014 |
| Quantity | Each |
| Technical Data Sheet EN |  |

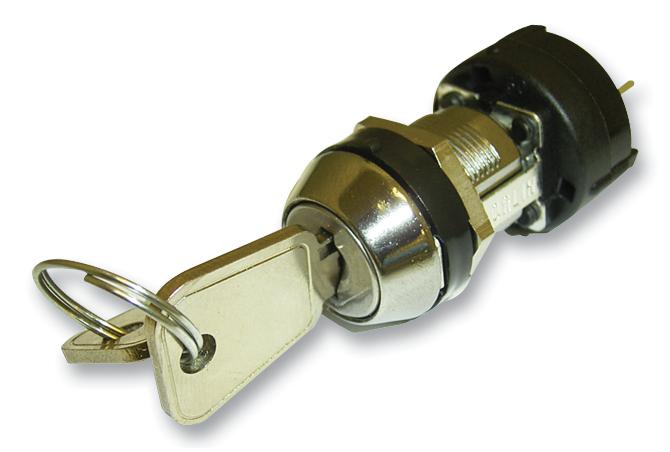

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2016.77 |
| 3-5 | ₹ 1996.19 |
| 5-10 | ₹ 1955.03 |
| 10+ | ₹ 1913.87 |
Bulk discount will be automatically applied during checkout based on quantity.
