Description

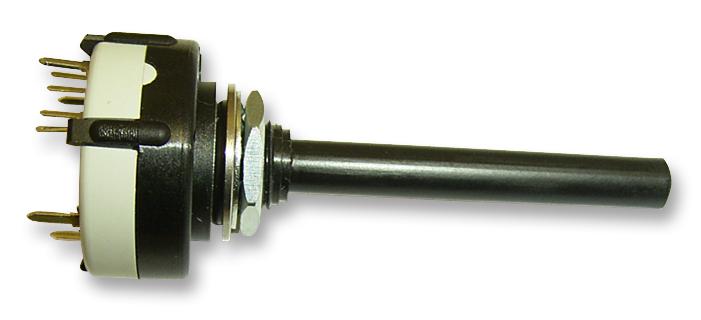

The BCKS1002 is a binary coded Rotary Switch with adjustable stop to restrict number of positions or continuous rotation. Brass alloy contacts with silver plated terminals. >10000 Cycles lifetime, >999M at 500VDC (initial) insulation resistance, <50m (initial) contact resistance, standard 4.7±0.5cNm nominal operating torque and 0.8Nm nominal end stop torque.
- Panel sealed IP65 rating
- Standard 22.5° indexing
- Binary coded Hexadecimal and complimentary versions
Industrial
Other details
| Brand | LORLIN |
| Part Number | BCKS1002 |
| Quantity | Each |
| Technical Data Sheet EN |  |
