Description
Lorex N864A64B-8CA8 Overview

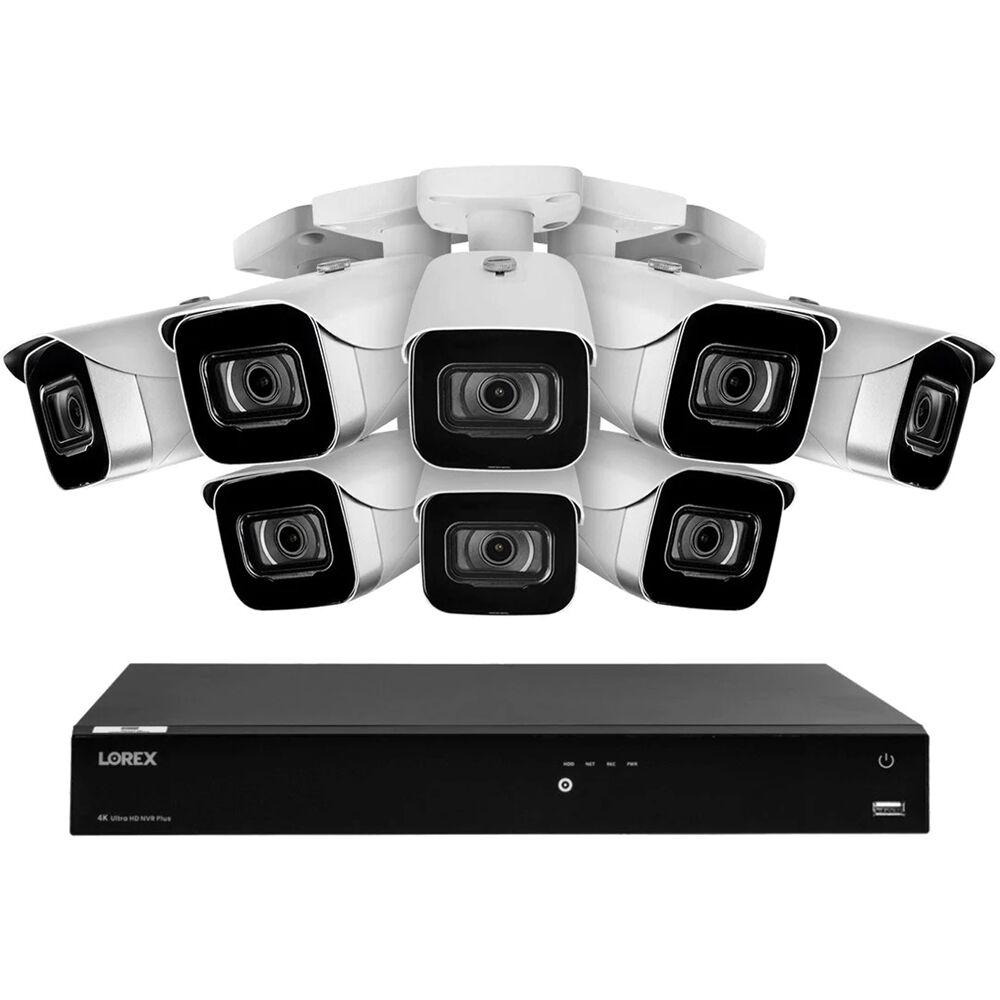

The Fusion Series N864A64B-8CA8 16-Channel 4K UHD NVR with 4TB HDD & 8 4K Bullet Cameras from Lorex includes an N864A64B NVR bundled with eight E841CA-E 4K bullet cameras for an indoor/outdoor video surveillance solution.

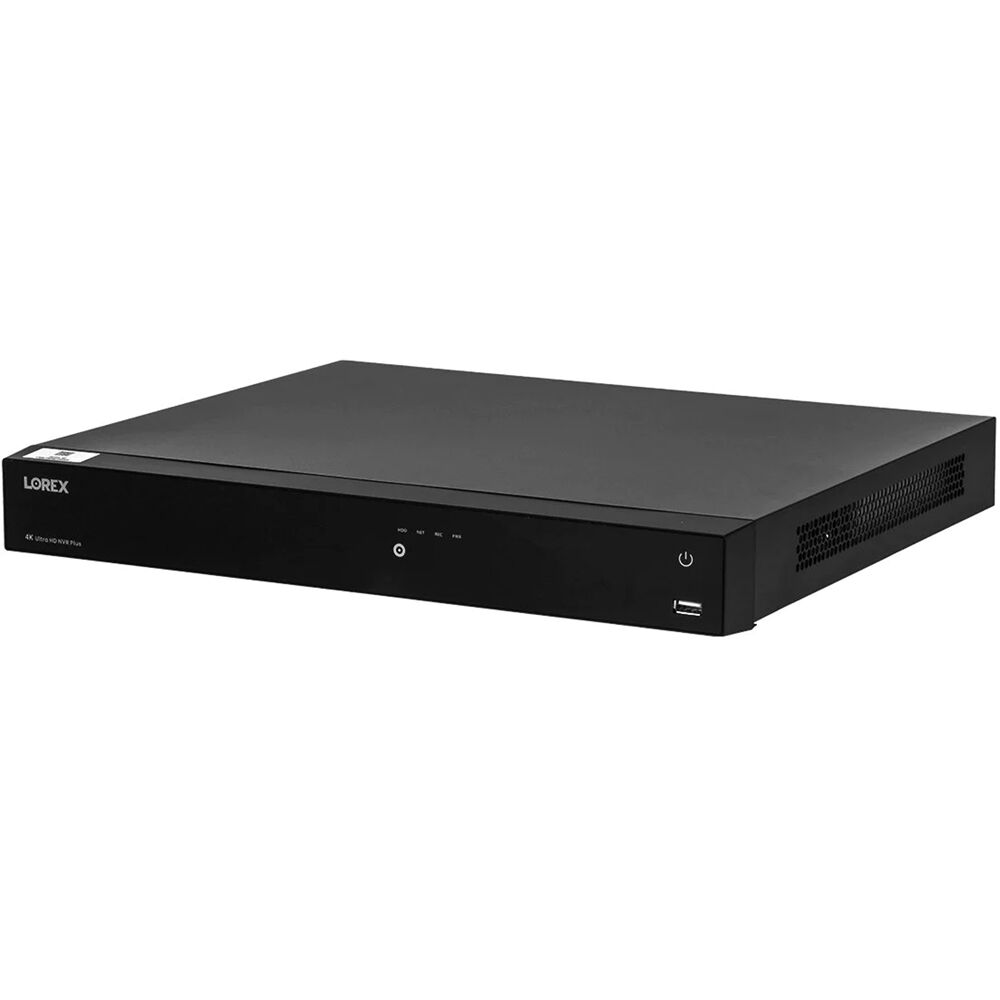

Record from and manage up to 16 cameras with the Fusion Series N864A64B 16-Channel 4K UHD NVR with 4TB HDD from Lorex at resolutions up to 3840 x 2160. The N864A64B is equipped with two SATA ports that each support an HDD up to 8TB, for a maximum capacity of 16TB (4TB preinstalled). H.265 and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.
This NVR supports two-way audio. An HDMI and a VGA port enable video output to an external monitor at up to 4K UHD resolution (HDMI output only). Lorex Home and Lorex Cloud provides remote management via your iOS or Android device and your Windows or macOS computers.

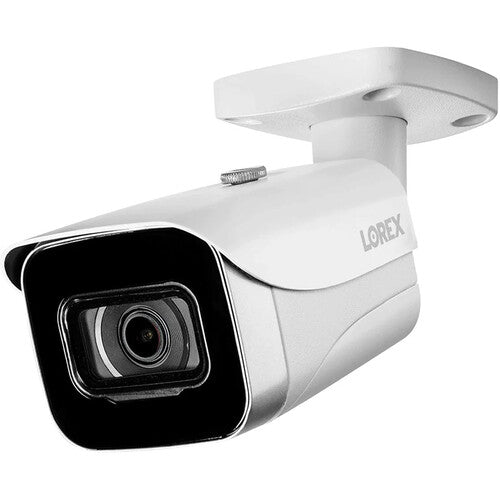

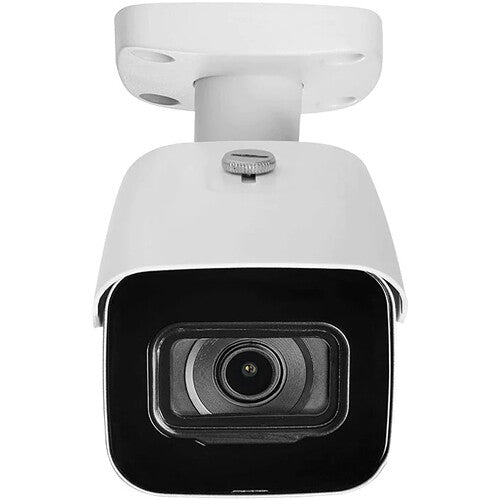

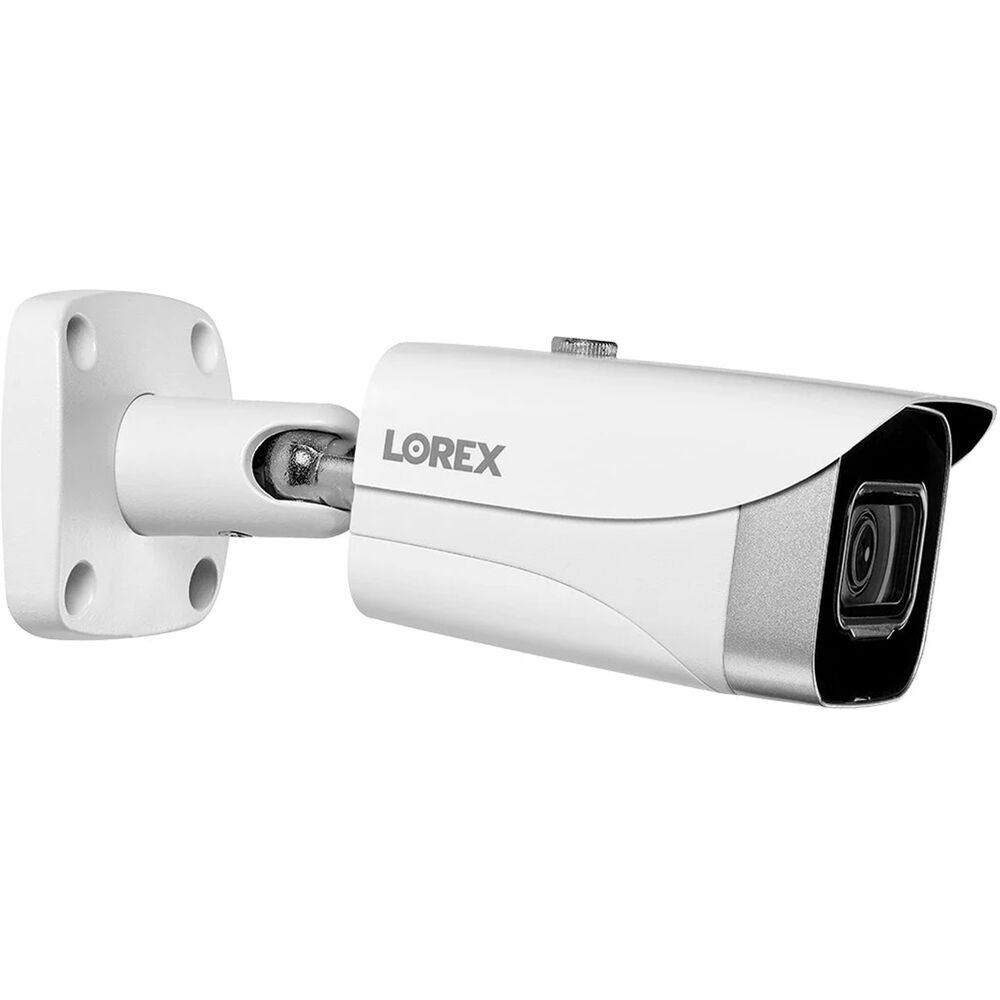

Monitor an indoor or outdoor area with the E841CA-E 4K UHD Network Bullet Camera from Lorex. This unit uses a 1/2.7" CMOS image sensor to capture 3840 x 2160 resolution video at 15 fps. IR LEDs provide a night vision range up to 90' in total darkness and 130' in ambient lighting. The camera features a 2.8mm fixed lens that delivers a 105° horizontal field of view. A memory card slot supports microSD cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera is housed in an IP67-rated aluminum alloy enclosure that is suitable for outdoor use.
In the Box
- Lorex Fusion Series N864A64B 16-Channel 4K UHD NVR with 4TB HDD
- Ethernet Cable
- Power Adapter
- HDMI Cable
- USB Mouse
- Limited 1-Year Manufacturer Warranty (For NVR)
- Limited 90-Day Manufacturer Warranty (For Accessories)
- 8 x Lorex E841CA-E 4K UHD Outdoor Network Bullet Camera with Night Vision
- Cat 5e Ethernet Cable
- Mounting Kit
- Limited 1-Year Manufacturer Warranty (For Camera)
- Limited 90-Day Manufacturer Warranty (For Accessories)
Lorex Fusion Series N864A64B 16-Channel 4K UHD NVR with 4TB HDD Specs
| Number of Channels |
16
|
| Playback Resolution |
HDMI:
3840 x 2160 (4K) VGA: 1920 x 1080 (1080p) |
| Recording Resolution |
4K at 15 fps
1080p, 720p, 3 MP, 5 MP at 30 fps |
| Throughput |
200 Mb/s (Networking)
|

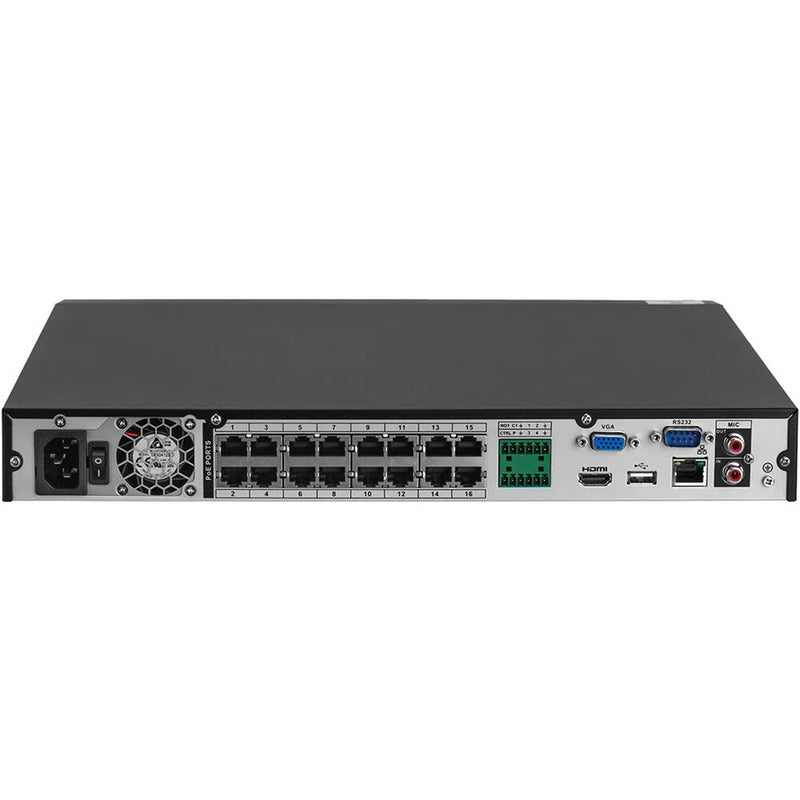

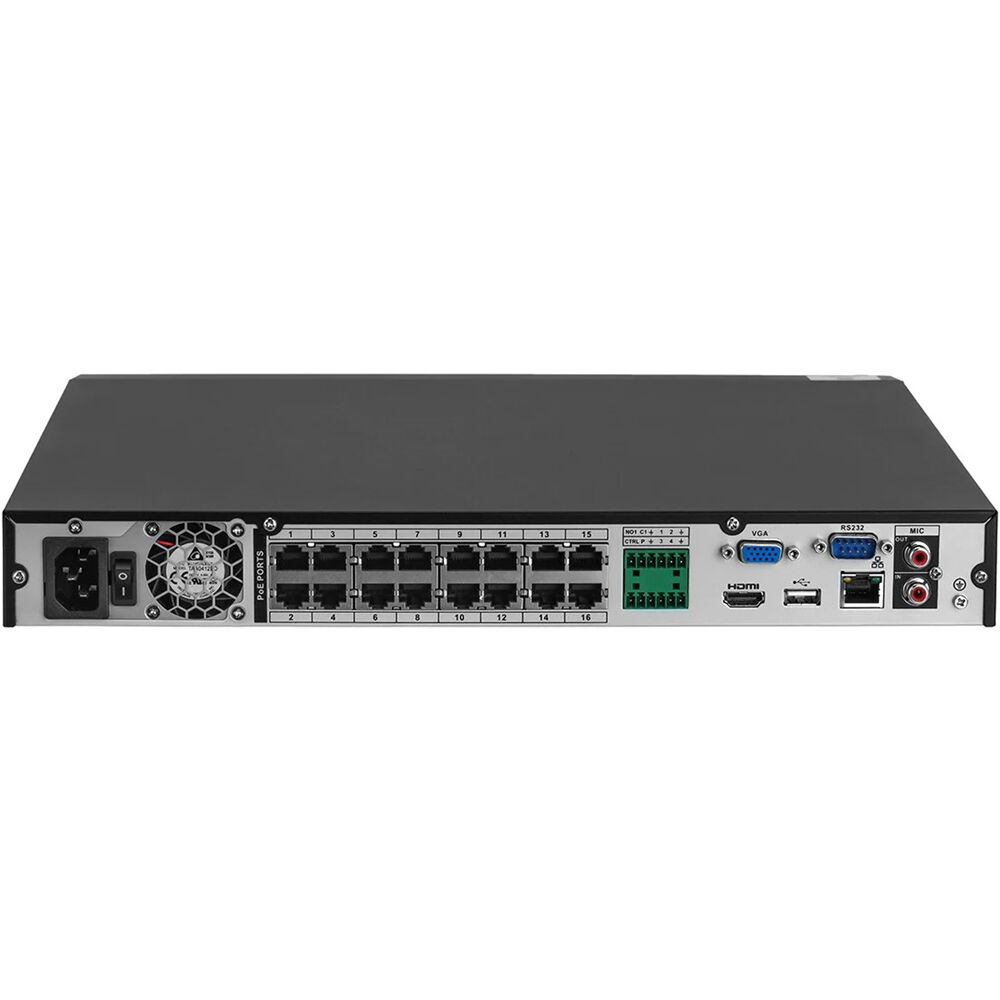

| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
16x RJ45 PoE
1x RJ45 Gigabit Ethernet 2x USB-A 2.0 |
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
| Installed Drive |
4 TB Hard Drive
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Lorex Home, Lorex Cloud |
| PoE Power Budget |
130 W
|
| Number of Channels |
16
|
| Playback Resolution |
HDMI:
3840 x 2160 (4K) VGA: 1920 x 1080 (1080p) |
| Recording Resolution |
4K at 15 fps
1080p, 720p, 3 MP, 5 MP at 30 fps |
| Playback Speeds |
8x
|
| Throughput |
200 Mb/s (Networking)
|
| IP Camera Support |
16
|
| 2-Way Audio |
Yes
|
| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
16x RJ45 PoE
1x RJ45 Gigabit Ethernet 2x USB-A 2.0 |
| Audio I/O |
1x Input
1x Output |
| System Connection |
2x SATA
|
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
| Supported Video Codecs |
H.264, H.265
|
| Backup Formats |
ASF, AVI, DAV, MP4
|
| Software Upgrade |
USB, Network
|
| Backup Method |
External HDD, USB Drive
|
| Optical Drive |
No
|
| Installed Drive |
4 TB Hard Drive
|
| Max Capacity Supported |
8 TB (Each Drive)
16 TB (Total) |
| Number of Bays |
2x Internal
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Lorex Home, Lorex Cloud |
| Alarm I/O |
4x Input
2x Output |
| Event Trigger |
Alarm, Alarm Out, Analytics, Email, Motion, Snapshot
|
| Notification Type |
Email
|
| Search Modes |
Date/Time, Event, Motion, Smart Search
|
| Recording Modes |
Alarm, Analytics, Continuous, Motion, Schedule
|
| Multi-Screen Configuration |
1, 4, 8, 9, 16
|
| Fisheye Dewarping |
No
|
| Power Consumption |
13.2 W (Without HDD)
|
| Power Supply Type |
External
|
| PoE Power Budget |
130 W
|
| PoE per Port |
25.5 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
48 VDC at 2 A
|
| Operating Temperature |
14 to 131°F / -10 to 55°C
|
| Operating Humidity |
10 to 90%
|
| Built-In Display |
No
|
| LED Indicators |
Yes
|
| Dimensions (W x D x H) |
14.8 x 12.9 x 2.1" / 375.0 x 327.0 x 53.0 mm
|
| Weight |
5.7 lb / 2.6 kg (Without HDD)
|
| Package Weight |
10.5 lb
|
| Box Dimensions (LxWxH) |
21.1 x 16.4 x 7.7"
|
Lorex E841CA-E 4K UHD Outdoor Network Bullet Camera with Night Vision Specs
| Sensor |
8 MP 1/2.7" CMOS
|
| Focal Length |
2.8mm
|
| Lens Field of View |
Horizontal: 105°
|
| Pan/Tilt |
No
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 149278.5 |
| 3-5 | ₹ 147755.25 |
| 5-10 | ₹ 144708.75 |
| 10+ | ₹ 141662.25 |
Bulk discount will be automatically applied during checkout based on quantity.
