| ₹ 192920.0 includes GST and import duties. | |
| B2B customers can avail ₹ 29420.3 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Lorex N864A64B-8AB8 Overview

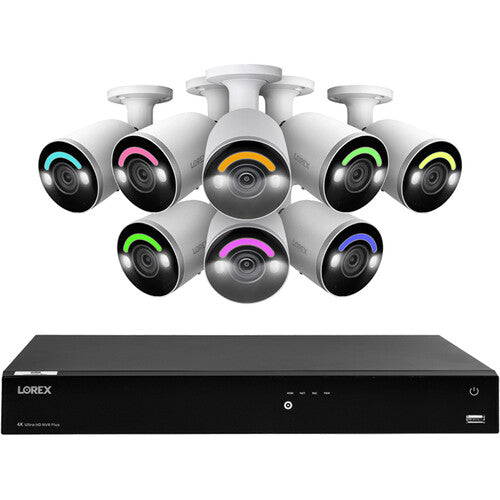

Monitor your home or business with the Fusion Series N864A64B-8AB8 16-Channel 4K UHD NVR with 4TB HDD & 8 4K Smart Deterrence Bullet Cameras from Lorex. This NVR has a storage capacity of up to 16TB (4TB preinstalled). Space-saving H.265 and H.264 video compressions reduce bandwidth requirements for efficient data storage while maintaining the best quality possible.
The included IP67-rated bullet cameras use 1/2.8" CMOS sensors to capture 4K UHD resolution video at 15 fps. IR LEDs provide a night vision range up to 98' in total darkness and 150' in ambient lighting. The cameras each feature a 2.8mm fixed lens that delivers a 108° horizontal field of view, dual motion-activated LED warning spotlights, a remote-triggered siren to deter intruders, and smart motion detection that sends you a notification when a face, person, animal, vehicle, or package is detected via the Lorex Home app.
NVR Features
Voice control via Alexa and Google Assistant
Streaming options include: Chromecast, Apple TV, Amazon Echo Show, Google Home Hub, and Lenovo Smart Display (available separately)
HDMI and VGA video outputs
Person/vehicle motion detection
Smart Search feature to filter motion events for quick review
Wired/wireless Fusion, sensor Fusion, selectable siren, face detection, active view, mask detection, active deterrence, panic button, and safeguard support
Lorex Cloud and Lorex Home for remote management
24/7 security-grade preinstalled 4TB HDD
HDD storage expandable to 16TB
Backup via USB flash drive or USB HDD
System navigation via included USB mouse
Firmware upgrades via USB/network
Optional DDNS
Watchdog function for automatic recovery after power failure
Bullet Camera Features
Smart motion detection capable of detecting faces (including faces with masks), people, and vehicles
Package detection (missing package and package left behind)
Motion-activated LED warning spotlights
Remote-triggered siren to deter intruders
Smart Security Lighting enables you to choose from up to 16.7 million colors to customize the camera's LED light
Assign colors for motion events and preset camera modes
Pre-recorded messages and quick messaging in mobile app
NTSC video format
Color night vision technology
Up to 98' of night vision in complete darkness and up to 150' in ambient lighting
HDR technology
UPC: 695529055640
In the Box
- Lorex Fusion Series N864A64B-8AB8 16-Channel 4K UHD NVR with 4TB HDD & 8 4K Smart Deterrence Bullet Cameras
- Lorex Fusion Series N864A64B 16-Channel 4K UHD NVR with 4TB HDD
- Ethernet Cable
- Power Adapter
- HDMI Cable
- USB Mouse
- 8 x E894AB Smart Deterrence Bullet Cameras
- 8 x Cat 5e Ethernet Cables
- 8 x Mounting Kits
- Limited 1-Year Manufacturer Warranty (For NVR & Cameras)
- Limited 90-Day Manufacturer Warranty (For Accessories)
Lorex N864A64B-8AB8 Specs
NVR
| Video Transmission Technology |
IP
|
| Channels |
16
|
| Video Inputs |
16 x PoE
|
| Video Outputs |
1 x VGA
1 x HDMI |
| Audio |
1 x RCA Input
1 x RCA Output |
| Alarm |
4 x Inputs
2 x Outputs |
| Display Output Resolution |
Up to 4K UHD, Auto Detect
|
| Live Display |
1, 4, 8, 9, 16
Maximum Speed: 4-Channels, 4K at 15 fps |
| OSD |
On/Off
|
| System Navigation |
USB Mouse
|
| Recording Resolution |
8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p
|
| Recording Frame Rate |
8 MP at 15 fps, 5 MP at 30 fps, 1080p at 30 fps, 720p at 30 fps
|
| Recording Schedule |
Continuous, Motion, Smart Motion (Person, Vehicle), Face Detection, Alarm, Day, Hour per Channel
|
| Backup File Format |
DAV, ASF, AVI, MP4
|
| Video Compression |
H.265, H.264
|
| Simultaneous Playback |
2-Channel: 4K at 30 fps
4-Channel: 4K at 15 fps |
| Playback Speed |
Variable, Maximum 8x
|
| Search |
By Time/Date, All Motion Events or Smart Motion (Person, Vehicle), Area Search
|
| HDD Bay |
2
|
| HDD Capacity |
2 x 8 TB (SATA)
|
| HDD Included |
4 TB
|
| Backup Media |
USB Flash Drive & USB HDD
|
| Motion Detection |
Support for Person and Vehicle Smart Motion Detection
|
| Features |
Face Detection Support, Active View Support, Mask Detection Support, Active Deterrence Support, Panic Button, Safeguard, Smart Search, Wired/Wireless Fusion Support, Sensor Fusion Support, Selectable Siren Support
|
| Voice Control |
Amazon Alexa, Google Assistant
|
| Streaming Options |
Chromecast, Apple TV, Amazon Echo Show, Google Home Hub
|
| Mobile App |
Lorex Home for iOS & Android
|
| Remote Viewing Options |
Lorex Cloud for Windows & Mac PCs
|
| Email Notification |
Text & Snapshot
|
| Network Interface |
1000M RJ45
|
| Network Bit Rate |
200 Mb/s Total
|
| DDNS |
Optional
|
| USB Interface |
2 x USB 2.0
|
| Firmware Upgrades |
USB, Network
|
| Watchdog Function |
Yes
|
| Power Consumption |
13.2 W without HDD
|
| Supply Voltage |
100 to 240 VAC, 50/60 Hz, 48 VDC, 2 A
|
| PoE Power Output |
25.5 W for Single Port, 220 W Total
|
| Operating Temperature |
14 to 131°F / -10 to 55°C
|
| Humidity |
10 to 90% RH
|
| Dimensions |
14.7 x 12.9 x 2.1" / 375 x 327 x 53 mm
|
| Weight |
5.8 lb / 2.6 kg without HDD
|
Bullet Camera
| Transmission Technology |
IP
|
| Image Sensor |
8 MP, 1/2.8" CMOS
|
| Video Format |
NTSC
|
| Video Compression |
H.265, H.264H (Main Stream & Sub Stream)
|
| Field of View |
Horizontal: 108°
|
| Lens |
2.8mm Fixed
|
| Aperture |
f/1.6
|
| Resolution |
8 MP at 15 fps, 5 MP at 30 fps, 1080p at 30 fps, 720p at 30 fps
|
| Effective Pixels (H x V) |
3840 x 2160
|
| HDR |
Yes
|
| Termination |
RJ45
|
| Two-Way Audio |
Built-In Microphone & Speaker
|
| Siren |
Yes, Siren Sound Options Available
|
| Night Vision Range |
Complete Darkness: 98' / 30 m
Ambient Lighting (Color Night Vision): 150' / 45 m |
| Special Features |
Smart Motion Detection Plus: Person/Vehicle Detection
Face Detection Mask Detection Package Detection (Missing/Left Behind) Supports in App Quick Messaging Active Deterrence: Warning Light, Siren, Pre-Recorded Message, Smart Security Lighting |
| Power Requirements |
PoE Class 802.3af / 12 VDC
|
| Power Consumption |
Maximum 660 mA / 9.5 W
|
| microSD Card Slot |
Yes
|
| Operating Temperature |
-22 to 140°F / -30 to 60°C
|
| Humidity |
<95% RH
|
| Housing Material |
Aluminum Alloy
|
| IP Rating |
IP67
|
| Dimensions (W x D x H) |
2.9 x 6.9 x 2.9" / 73 x 175 x 70 mm
|
| Weight |
1.15 lb / 0.52 kg
|
Packaging Info
| Package Weight |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 189061.6 |
| 3-5 | ₹ 187132.4 |
| 5-10 | ₹ 183274.0 |
| 10+ | ₹ 179415.6 |
Bulk discount will be automatically applied during checkout based on quantity.
