Description

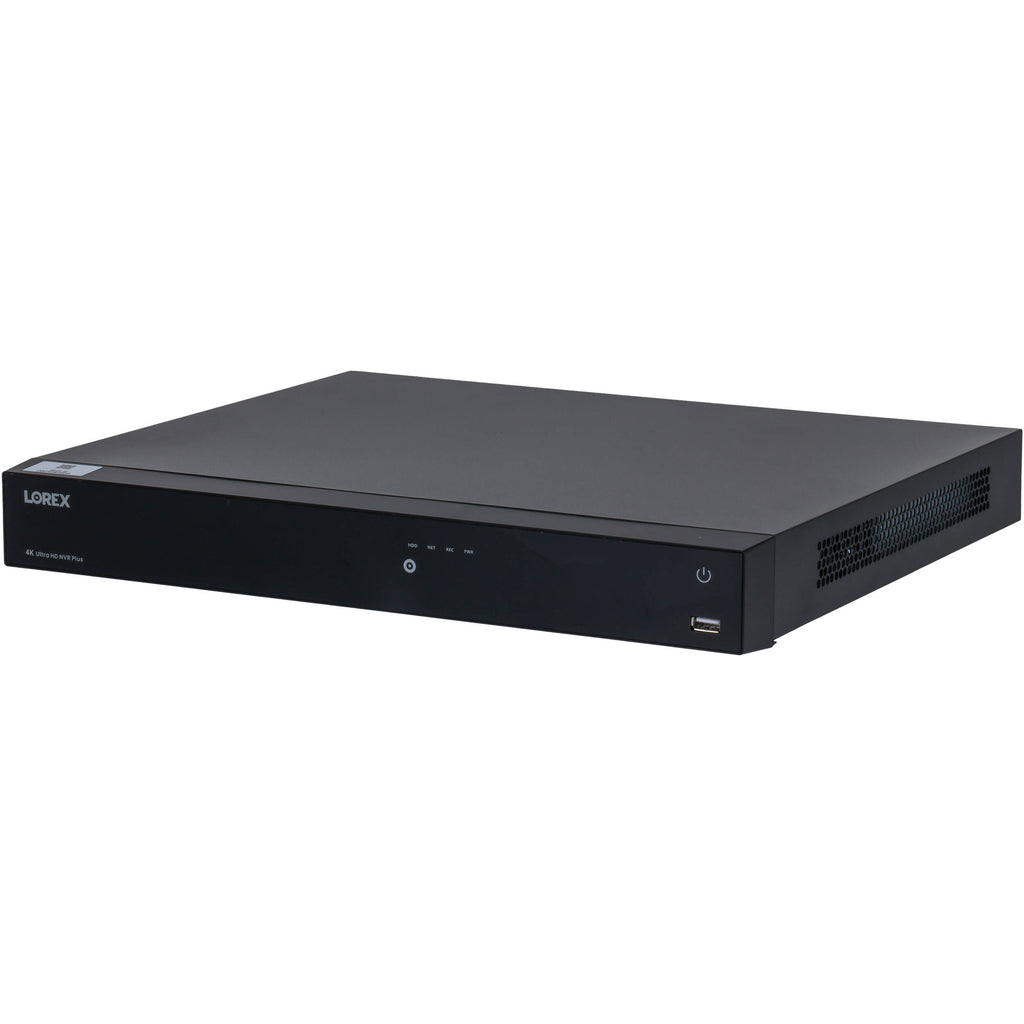

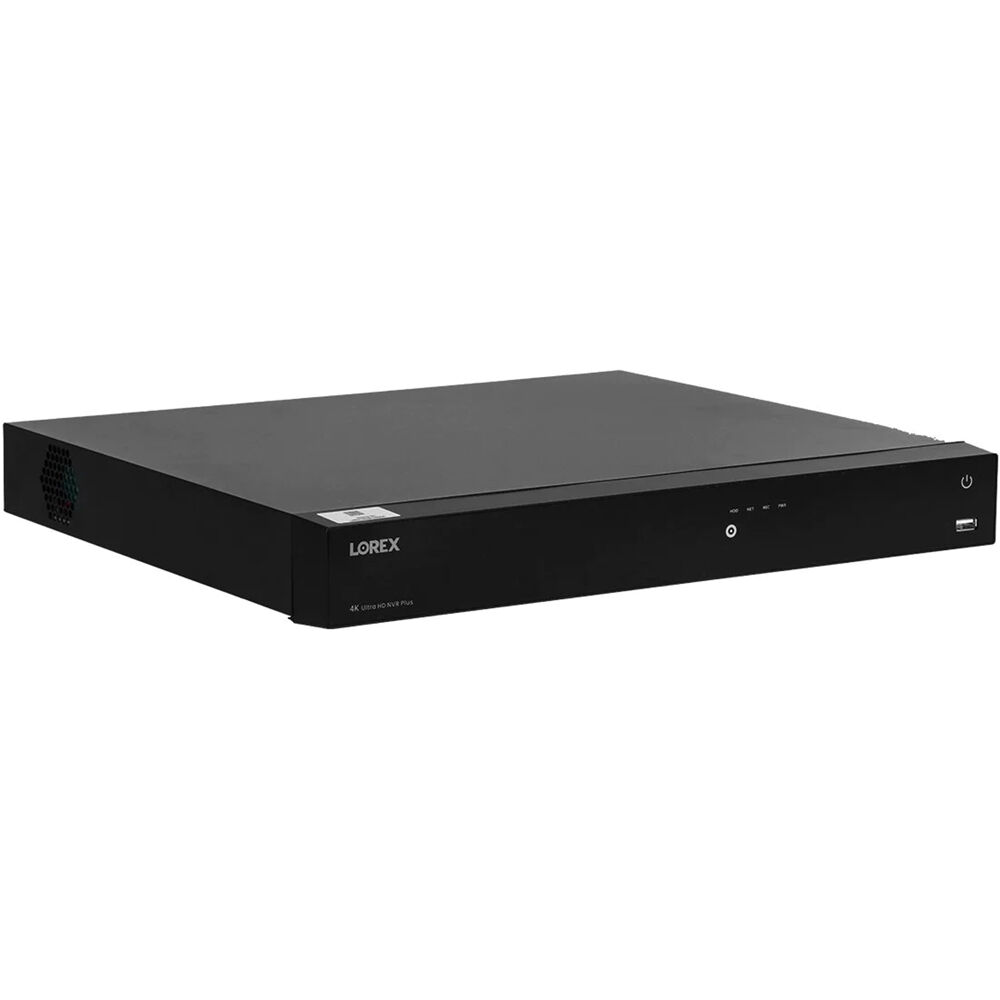

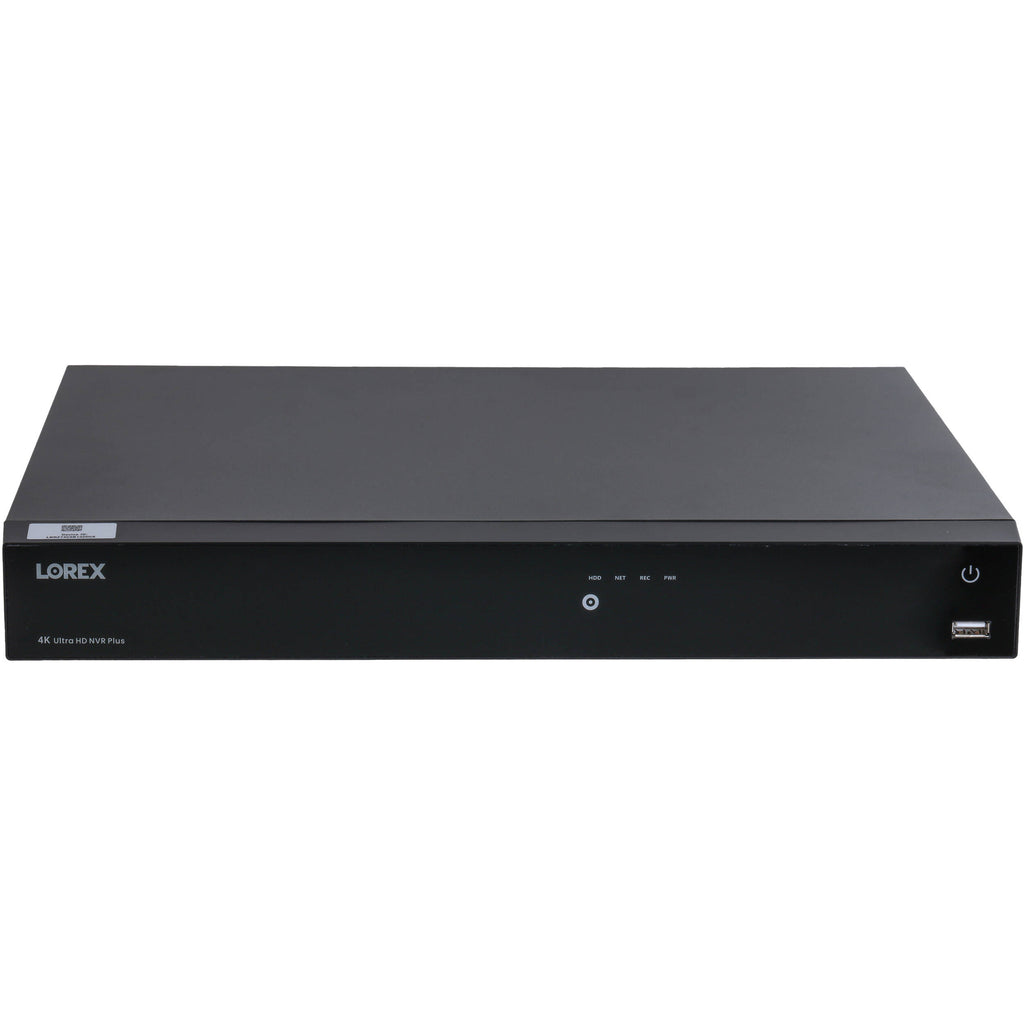

Lorex N864A64B Overview
Record from and manage up to 16 cameras with the Fusion Series N864A64B 16-Channel 4K UHD NVR with 4TB HDD from Lorex at resolutions up to 3840 x 2160. The N864A64B is equipped with two SATA ports that each support an HDD up to 8TB, for a maximum capacity of 16TB (4TB preinstalled). H.265 and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.
This NVR supports two-way audio. An HDMI and a VGA port enable video output to an external monitor at up to 4K UHD resolution (HDMI output only). Lorex Home and Lorex Cloud provides remote management via your iOS or Android device and your Windows or macOS computers.
Voice control via Amazon Alexa and Google Assistant
Streaming options include: Chromecast, Apple TV, Amazon Echo Show, Google Home Hub, and Lenovo Smart Display (available separately)
HDMI and VGA video outputs
Person/vehicle motion detection
Smart Search feature to filter motion events for quick review
Wired/wireless Fusion, sensor Fusion, selectable siren, face detection, active view, mask detection, active deterrence, panic button, and safeguard support
Lorex Cloud and Lorex Home for remote management
24/7 security-grade preinstalled 4TB HDD
HDD storage expandable to 16TB
Backup via USB flash drive or USB HDD
System navigation via included USB mouse
Firmware upgrades via USB/network
Optional DDNS
Watchdog function for automatic recovery after power failure
UPC: 695529052106
In the Box
- Lorex Fusion Series N864A64B 16-Channel 4K UHD NVR with 4TB HDD
- Ethernet Cable
- Power Adapter
- HDMI Cable
- USB Mouse
- Limited 1-Year Manufacturer Warranty (For NVR)
- Limited 90-Day Manufacturer Warranty (For Accessories)
Lorex N864A64B Specs
Key Specs
| Number of Channels |
16
|
| Playback Resolution |
HDMI:
3840 x 2160 (4K) VGA: 1920 x 1080 (1080p) |
| Recording Resolution |
4K at 15 fps
1080p, 720p, 3 MP, 5 MP at 30 fps |
| Throughput |
200 Mb/s (Networking)
|

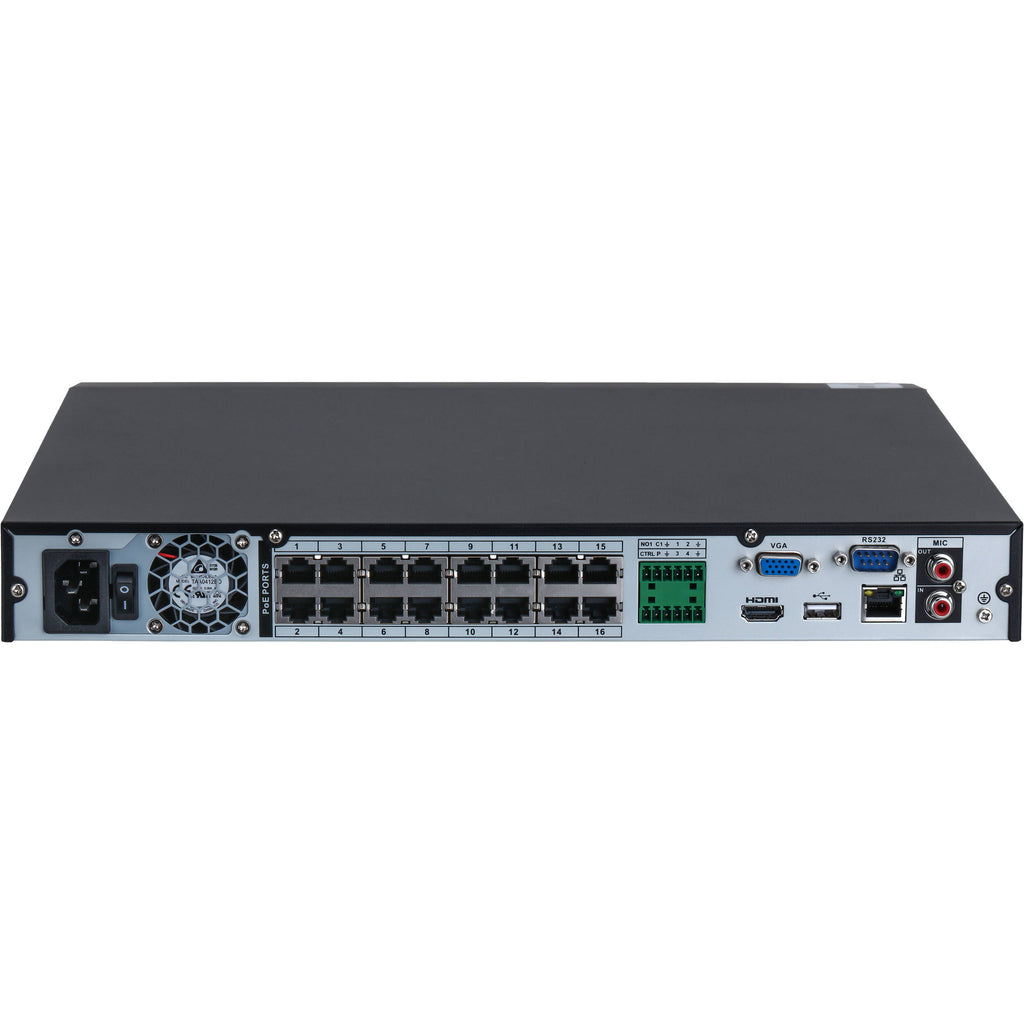

| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
16x RJ45 PoE
1x RJ45 Gigabit Ethernet 2x USB-A 2.0 |
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
| Installed Drive |
4 TB Hard Drive
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Lorex Home, Lorex Cloud |
| PoE Power Budget |
130 W
|
General
| Number of Channels |
16
|
| Playback Resolution |
HDMI:
3840 x 2160 (4K) VGA: 1920 x 1080 (1080p) |
| Recording Resolution |
4K at 15 fps
1080p, 720p, 3 MP, 5 MP at 30 fps |
| Playback Speeds |
8x
|
| Throughput |
200 Mb/s (Networking)
|
| IP Camera Support |
16
|
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
16x RJ45 PoE
1x RJ45 Gigabit Ethernet 2x USB-A 2.0 |
| Audio I/O |
1x Input
1x Output |
| System Connection |
2x SATA
|
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
Compatibility
| Supported Video Codecs |
H.264, H.265
|
| Backup Formats |
ASF, AVI, DAV, MP4
|
| Software Upgrade |
USB, Network
|
| Backup Method |
External HDD, USB Drive
|
Computing
| Optical Drive |
No
|
System
| Installed Drive |
4 TB Hard Drive
|
| Max Capacity Supported |
8 TB (Each Drive)
16 TB (Total) |
| Number of Bays |
2x Internal
|
Software System Requirements
| Mobile App Compatible |
Yes: Android & iOS
App Name: Lorex Home, Lorex Cloud |
Notifications
| Alarm I/O |
4x Input
2x Output |
| Event Trigger |
Alarm, Alarm Out, Analytics, Email, Motion, Snapshot
|
| Notification Type |
Email
|
System Functions
| Search Modes |
Date/Time, Event, Motion, Smart Search
|
| Recording Modes |
Alarm, Analytics, Continuous, Motion, Schedule
|
| Multi-Screen Configuration |
1, 4, 8, 9, 16
|
| Fisheye Dewarping |
No
|
Electrical
| Power Consumption |
13.2 W (Without HDD)
|
| Power Supply Type |
External
|
| PoE Power Budget |
130 W
|
| PoE per Port |
25.5 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
48 VDC at 2 A
|
Environmental
| Operating Temperature |
14 to 131°F / -10 to 55°C
|
| Operating Humidity |
10 to 90%
|
Physical
| Built-In Display |
No
|
| LED Indicators |
Yes
|
| Dimensions (W x D x H) |
14.8 x 12.9 x 2.1" / 375.0 x 327.0 x 53.0 mm
|
| Weight |
5.7 lb / 2.6 kg (Without HDD)
|
Packaging Info
| Package Weight |
10.5 lb
|
| Box Dimensions (LxWxH) |
21.1 x 16.4 x 7.7"
|
