| ₹ 36800.0 includes GST and import duties. | |
| B2B customers can avail ₹ 5612.0 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

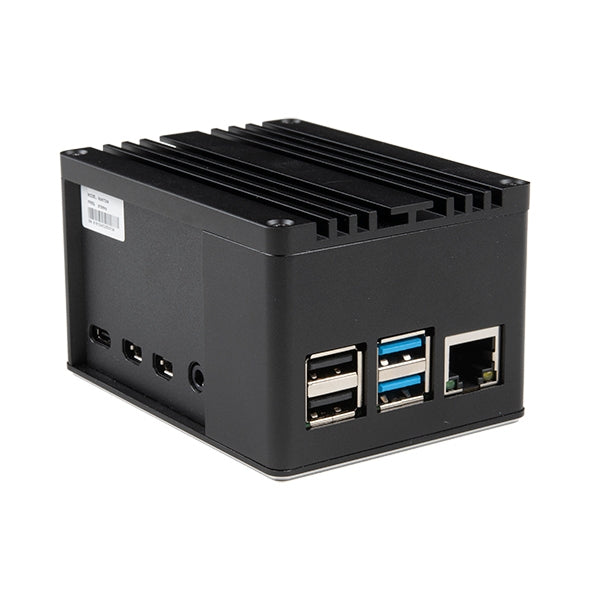

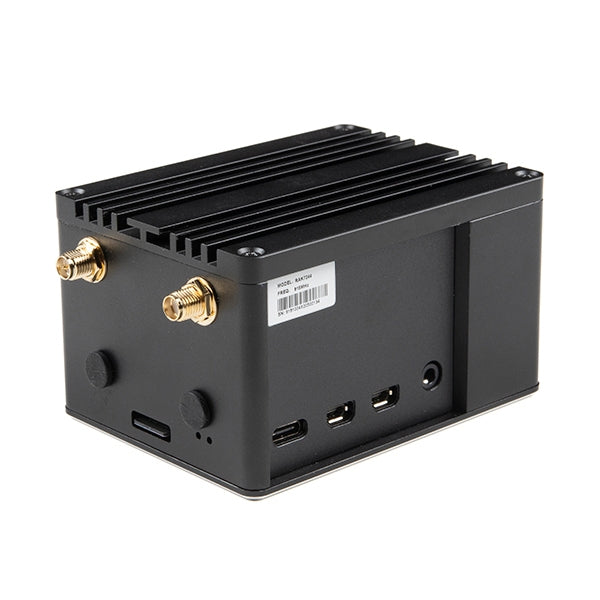

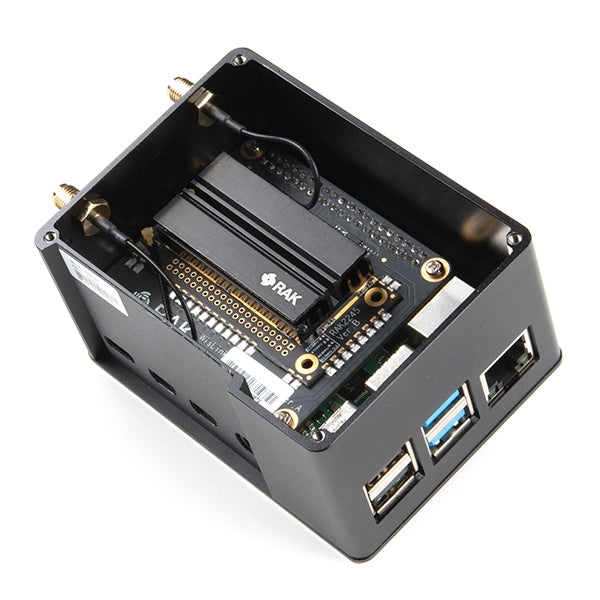

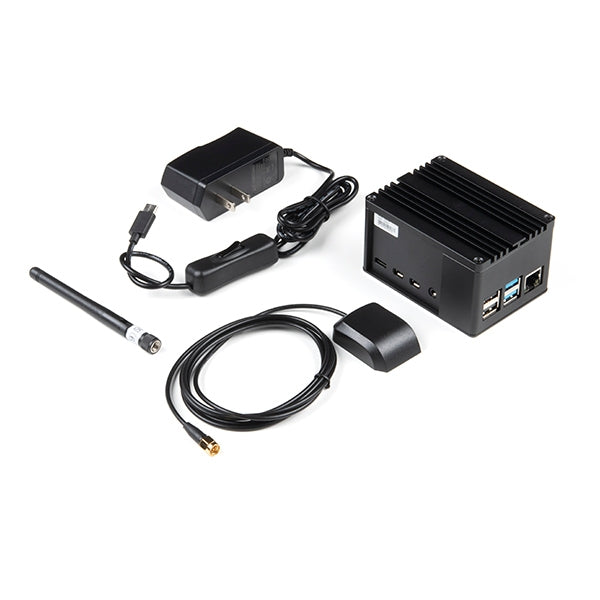

This LoRa Gateway has 8 channels, 15km line of sight range, & comes assembled with everything necessary for easy deployment including a Raspberry Pi 4.
Features & Specs
- LoRa Concentrator Engine: Semtech SX1301 RF
- Sensitivity up to -139 dBm
- New Model integrates Ublox MAX-7Q GPS module
- Max output power up to 27dBm
- Range up to 15 km (Line of Sight), ~2km in dense urban areas
- Designed for 915MHz US/Australia LoRA ISM band
- Emulates 49 x LoRa demodulators, 10 programmable parallel demodulation paths, 8 uplink ch, 1 downlink ch
- Temperature: -40 to 85 C
- 2x SX125x Tx/Rx front-ends for high/ low frequency.

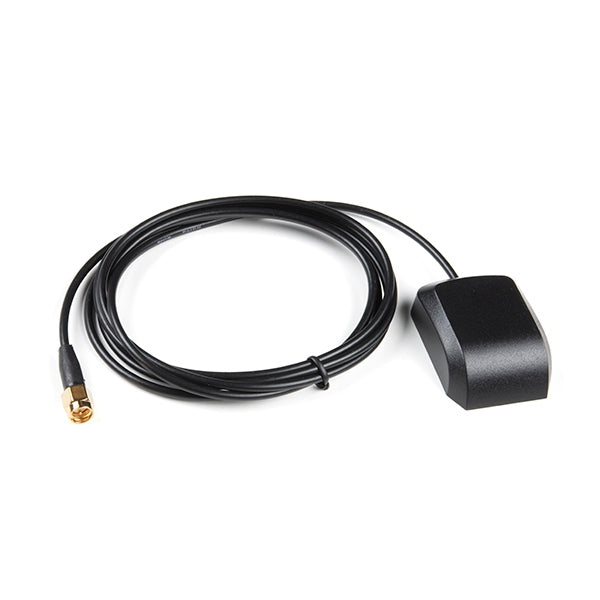

- SMA connector for GPS/GNSS antenna
- RP-SMA connector for 915MHz antenna
- Sleek and compact anodized enclosure: 68.3 mm x 92 mm x 53.5 mm
- FCC & CE compliance
Features & Specs
- LoRa Concentrator Engine: Semtech SX1301 RF
- Sensitivity up to -139 dBm
- New Model integrates Ublox MAX-7Q GPS module
- Max output power up to 27dBm
- Range up to 15 km (Line of Sight), ~2km in dense urban areas
- Designed for 915MHz US/Australia LoRA ISM band
- Emulates 49 x LoRa demodulators, 10 programmable parallel demodulation paths, 8 uplink ch, 1 downlink ch
- Temperature: -40 to 85 C
- 2x SX125x Tx/Rx front-ends for high/ low frequency.
- SMA connector for GPS/GNSS antenna
- RP-SMA connector for 915MHz antenna
- Sleek and compact anodized enclosure: 68.3 mm x 92 mm x 53.5 mm
- FCC & CE compliance
Documentation
- Getting Started Guide
- RAK7244 Product Brief
- Enclosure Assembly Guide
- RAK2245 Pi HAT Product Brief
- RAK2245 Pi HAT User Manual
- How to write LoRa Gateway Image to MicroSD card
- LoRaWAN with ProRF and The Things Network
- OEM Firmware
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 36064.0 |
| 3-5 | ₹ 35696.0 |
| 5-10 | ₹ 34960.0 |
| 10+ | ₹ 34224.0 |
Bulk discount will be automatically applied during checkout based on quantity.
