Description
Livestream Studio One 2.0 Overview
- 1Description
- 2Studio One 2.0 System
- 3Studio 6 Software
- 4Hardware Specs

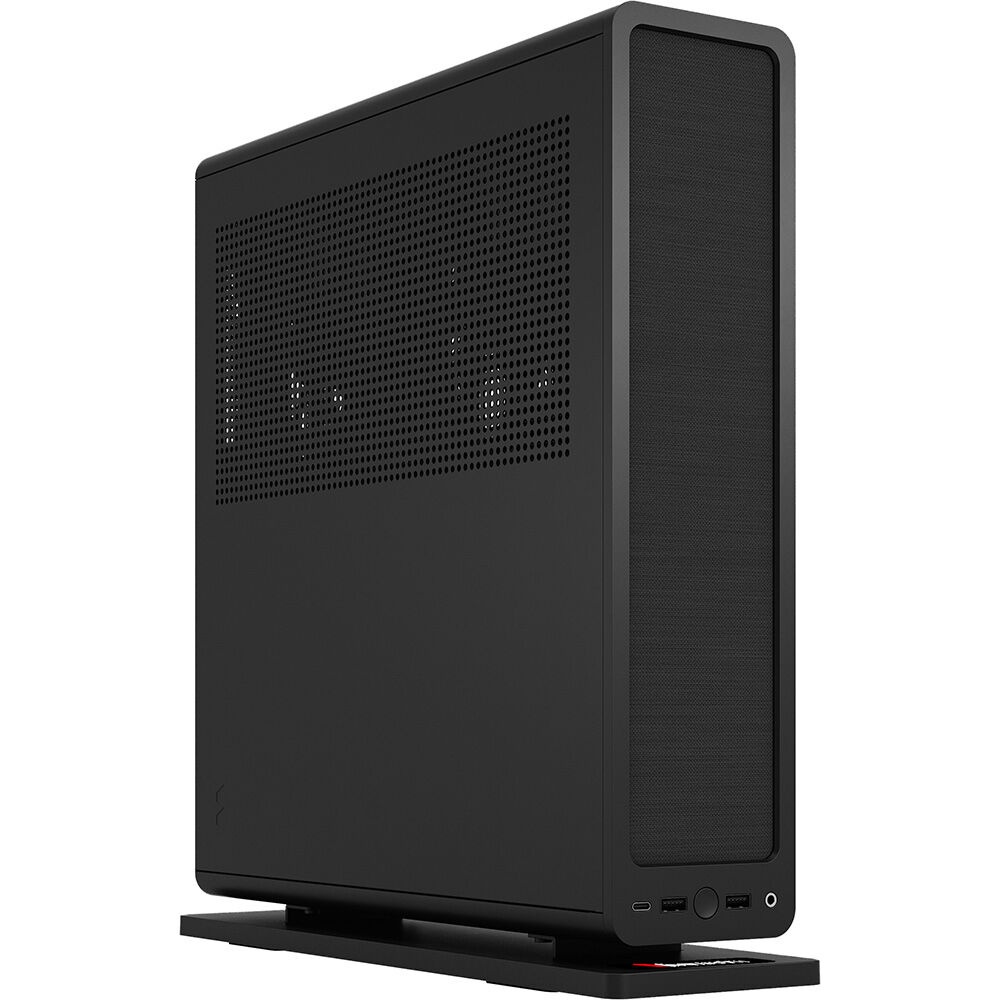

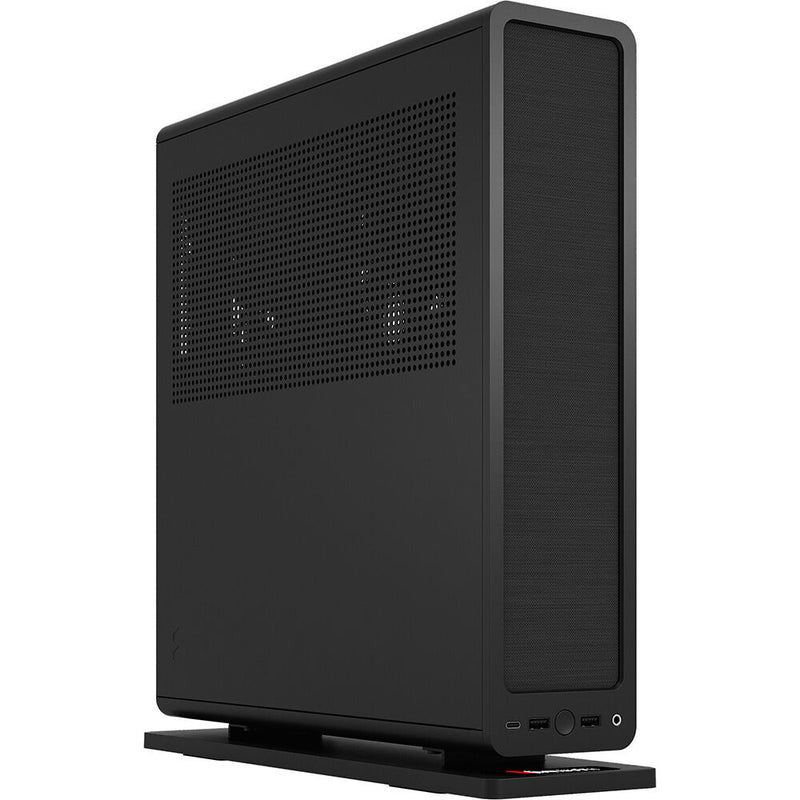

The Livestream Studio One 2.0 HDMI 4K Live Production Switcher is an all-in-one hardware 4K video switcher with pre-installed Livestream Studio production software. Connect up to four HDMI or ten NDI sources, and stream to in-venue screens or to the web using the built-in multi-bit rate encoder via HDMI for program output and Ethernet or built-in Wi-Fi for streaming. The switcher outputs 4K30 and can record up to 20 hours of broadcast-quality HD video to its internal 1TB SSD. The Studio One 2.0 supports embedded audio from HDMI and NDI input sources as well as analog audio via two 1/4" inputs and outputs.
The pre-installed Livestream Studio live production software provides a full-field rate multiview that displays all live inputs, graphics, and media players in real time. The multiview features audio monitoring for each input and audio PPM overlay with peak hold on all inputs and outputs. In terms of graphics, the Studio One 2.0 supports three graphic layers and two video media tracks. Two layers can be overlayed and mixed with transparency. Add text, images, live picture-in-picture, countdown graphics, and more.
- Pre-installed Livestream Studio software
- Hardware-accelerated encoding and decoding
- Four HDMI inputs that support up to UHD 4K
- One HDMI and one SDI output up to UHD 4K
- 2.5 Gb/s Ethernet and 802.11ax Wi-Fi 6e Module
- Front-panel USB/headphone port
- Two 1/4"-20 analog audio inputs and outputs
- 20 hours of ISO recorded (at 1080p) via 1TB internal SSD
- Import social comments into your stream as graphics
- Native integration with Vimeo cloud
- Simple mode
- Stream live to multiple destinations such as YouTube, Facebook Live, Twitch, and more
- Use any wired camera or select wireless cameras such as Mevo
- Supports Livestream or Vimeo simulcast service with optional subscription
- Frame-accurate live switching, recording, streaming, and compositing with up to 4K video
- Layered broadcast graphics
- Connect local or external data sources
- Color correction, transitions
- Live interviews via a browser
- Mix multiple Mevo cameras
- Frame accurate media playback
- Remote control via browser UI
- Stream and record in 4K
- Virtual camera crop from 4K
- PTZ camera control
- Multiple, simultaneous ISO recordings
- Multi-network bonding
- Audio mixer and filters
- Live ad insertion
- Real-time format conversion
- Tally light integration
- Dropbox integration
- External multi-view
- NDI protocol support
- Intel Core i5-13600k CPU
- Two USB-C/Thunderbolt 4 ports (40 Gb/s)
- Six USB-A 3.2 Gen2 Ports (10 Gb/s)
- Intel UHD Graphics 770
- DisplayPort 1.4 output with DSC
- 16GB Dual-Channel DDR5 RAM
- 1TB Internal Solid State Drive (SSD)
- Windows 10 Professional (64-bit)
In the Box
- Livestream Studio One 2.0 HDMI 4K Live Production Switcher
- Keyboard
- Mouse
- Limited 1-Year Manufacturer Warranty
- Description
- Studio One 2.0 System
- Studio 6 Software
- Hardware Specs
Livestream Studio One 2.0 Specs
| Effect Types |
Transition (SMPTE Wipe, Cut and Fade)
|
| Switching Type |
Software, T-Bar
|
| Color Processing |
8-Bit 4:4:4
|
| Audio Processing |
48 kHz / 24-Bit
|
| Video Inputs |
4 x HDMI
4 x BNC |
| Audio Inputs |
2 x 1/4" TRS Analog
|
| Video Outputs |
1 x HDMI (2.1)
1 x BNC |
| Output Video Format |
DisplayPort
8K up to 60 fps 5K up to 120 fps |
| Audio Outputs |
2 x 1/4" TRS Analog
|
| Monitor Output |
1 x DisplayPort 1.4
|
| Inputs/Outputs |
1 x RJ45 (NDI)
|
| Other I/O |
2 x USB-C USB4
6 x USB-A 3.1/3.2 Gen 2 |
| HDCP Support |
Yes, Version 2.3
|
| IP Video |
H.265:
3840 x 2160 at 30p Encoding |
| Transport Protocols |
RTMP
|
| Compatible Services |
Facebook Live, Livestream, Twitch, Ustream, YouTube Live
|
| Internal Storage |
1 TB
|
| Recording Modes |
1920 x 1080i (100 Mb/s AVI via M-JPEG)
|
| OS Compatibility |
Windows 10 (64-Bit Only)
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Processor |
Intel Core i5-13600K
|
| GPU |
Intel UHD Graphics 770
|
| Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support
|
| Bluetooth |
Yes
|
| Dimensions |
15.6 x 14.7 x 4.3" / 395.4 x 374 x 110 mm
|
