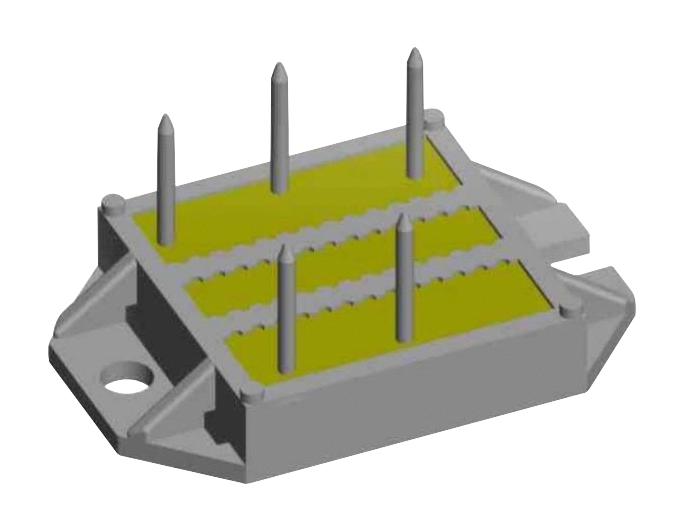

3 phase rectifier bridge module suitable for use in diode for main rectification, for three phase bridge configurations, supplies for DC power equipment, input rectifiers for PWM inverter, battery DC power supplies, field supply for DC motors applications.
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chips
- Very low forward voltage drop
- Very low leakage current
Product details
| Repetitive Peak Reverse Voltage:
1.2kV
|
| Average Forward Current:
70A
|
| Forward Voltage Max:
1.5V
|
| Diode Module Configuration:
Bridge
|
| Diode Case Style:
ECO-PAC1
|
| No. of Pins:
5Pins
|
| Operating Temperature Max:
150°C
|
| Forward Surge Current:
300A
|
| Diode Mounting:
Panel
|
| Product Range:
-
|
Other details
| Brand |
LITTELFUSE |
| Part Number |
VUO68-12NO7 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
