Description
This is a TVS Varistor, 75 V, 102 V, CH Series, 200 V, 3220 [8552 Metric], Metal Oxide Varistor (MOV) product from LITTELFUSE with the model number V120CH8T
Product details
Voltage Rating V AC | 75V |
Voltage Rating V DC | 102V |
Product Range | CH Series |
Clamping Voltage Vc Max | 200V |
Varistor Case Style | 3220 [8552 Metric] |
Varistor Type | Metal Oxide Varistor (MOV) |
Peak Surge Current @ 8/20µs | 250A |
Operating Temperature Min | -55°C |
Operating Temperature Max | 125°C |
Peak Energy (10/1000uS) | 2J |
Automotive Qualification Standard | - |
Other details
Brand | LITTELFUSE |
Part Number | V120CH8T |
Quantity | Each (Supplied on Cut Tape) |
Technical Data Sheet EN | |
Product Change Notice EN |

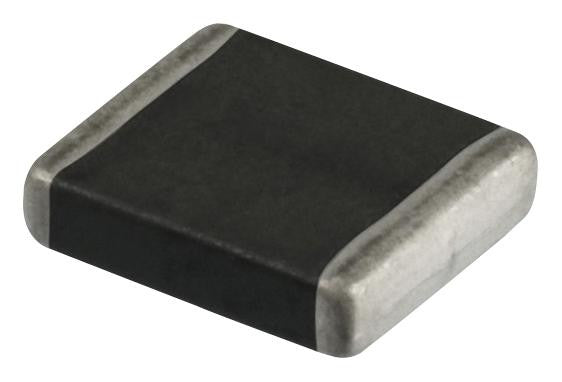

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
