TPSMD series surface mount TVS diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
- Bi-directional
- Hi reliability application and automotive grade AEC-Q101 qualified
- SMT for minimal boad footprint
- Typical failure mode is short from over-specified voltage or current
- IEC-61000-4-2 ESD 30KV(Air), 30KV (Contact)
- EFT protection of data lines in accordance with IEC 61000-4-4
- Built-in strain relief and glass passivated chip junction
- Excellent clamping capability and low incremental surge resistance
- UL recognized compound meeting flammability rating V-0
- Fast response time: typically less than 1.0ps from 0V to VBR min
Other details
Brand |
LITTELFUSE |
Part Number |
TPSMD33CA |
Quantity |
Each (Supplied on Cut Tape) |
Technical Data Sheet EN |
|
Product Change Notice EN |
|

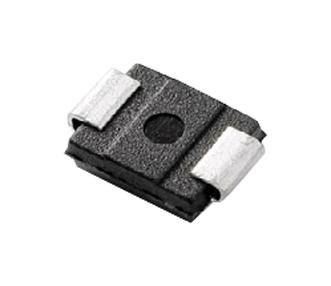

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
