SZP6SMB series surface mount TVS diode designed to protect voltage sensitive components from high voltage, high energy transients. It has excellent clamping capability, high surge capability, low breakdown impedance and fast response time. The SZP6SMB series is supplied in the cost-effective, highly reliable package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
- Zener transient overvoltage suppressor
- ESD rating of class 3 (> 16KV) per human body model
- Maximum clamp voltage at peak pulse current
- Response time is typically <1ns
- AEC-Q101 qualified and PPAP capable
Other details
| Brand |
LITTELFUSE |
| Part Number |
SZP6SMB15CAT3G |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

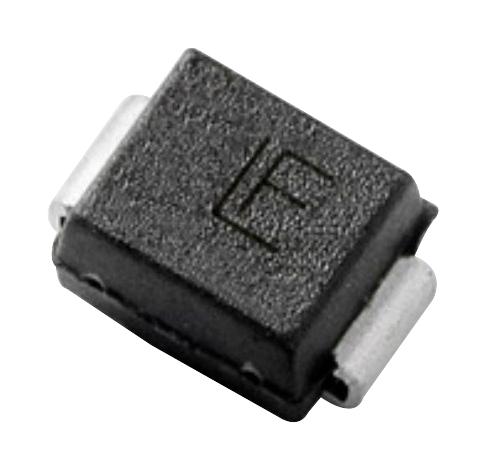

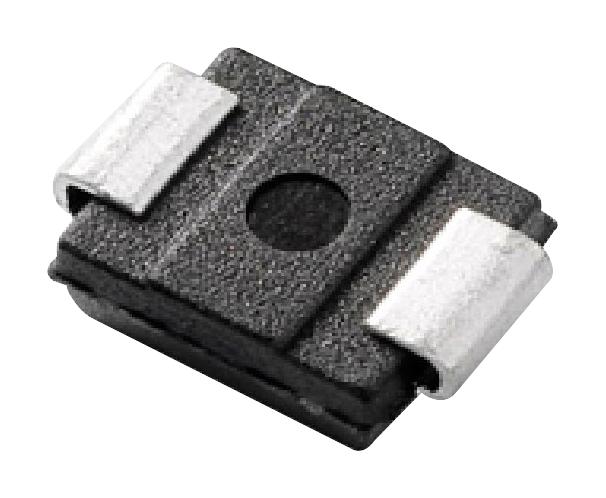

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
