SZ1SMB series surface mount TVS diode designed to protect voltage sensitive components from high voltage, high energy transients. It has excellent clamping capability, high surge capability, as well as fast response time. This is cost-effective, highly reliable package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial and consumer applications.
- Zener transient overvoltage suppressors
- Bi-directional
- Working peak reverse voltage range from 10V to 75V
- Standard avalanche breakdown voltage range 11.1V to 92.07V
- ESD rating of class 3 (> 16KV) per human body model
- Intended for UL 497B type protection
- Response time is typically <1.0ns
- Automotive and other applications requiring unique site and control change requirements
- AEC-Q101 qualified and PPAP capable
Other details
| Brand |
LITTELFUSE |
| Part Number |
SZ1SMB18CAT3G |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

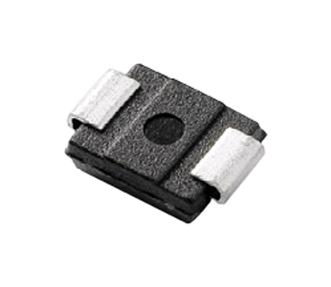

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
