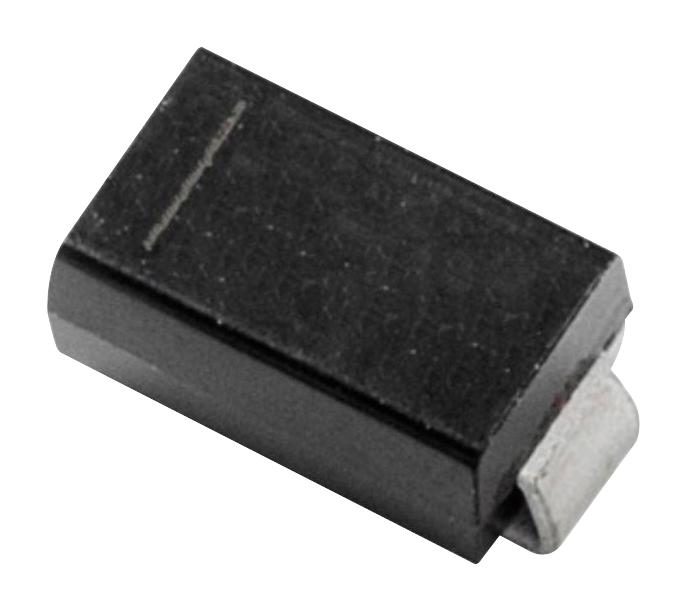

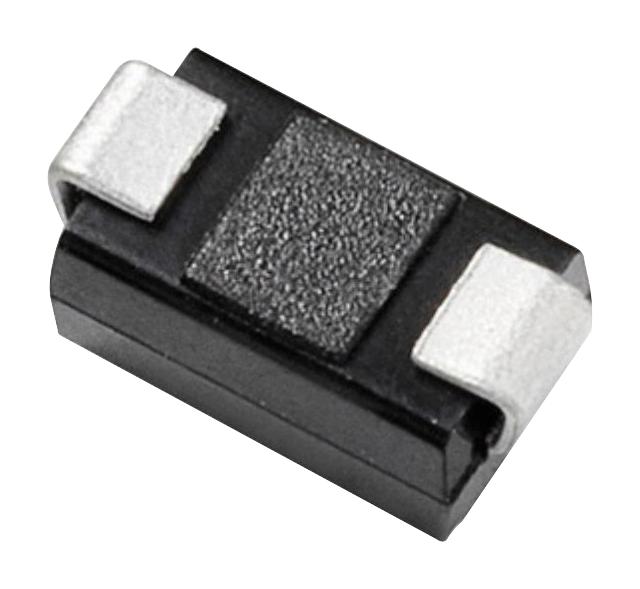

SZ1SMA series surface mount TVS diode designed to protect voltage sensitive components from high voltage, high energy transients. It has excellent clamping capability, high surge capability, low Zener impedance and fast response time. This is cost-effective, highly reliable package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial and consumer applications.
- Zener transient overvoltage suppressors
- Uni-directional
- Response time is typically < 1ns
- ESD rating of Class 3 (>16KV) per human body model
- Flat handling surface for accurate placement
- Package design for top slide or bottom circuit board mounting
- Low profile package
- Automotive and other applications requiring Unique Site and Control Change Requirements
- AEC-Q101 qualified and PPAP capable
- Recognized to UL 497B as an isolated loop circuit protector
Other details
| Brand |
LITTELFUSE |
| Part Number |
SZ1SMA28AT3G |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
