| ₹ 222.69 includes GST and import duties. | |
| B2B customers can avail ₹ 33.96 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The SP724AHTG is a TVS Diode Array with matte tin-plated copper alloy leads and moulded epoxy body. The SP724 is a quad array of transient voltage clamping circuits designed to suppress ESD and other transient overvoltage events. The SP724 is used to help protect sensitive digital or analogue input circuits on data, signal or control lines operating on power supplies up to 20VDC. The SP724 is comprised of bipolar SCR/diode structures to protect up to four independent lines by clamping transients of either polarity to the power supply rails. The SP724 offers very low leakage (1nA Typical) and low input capacitance (3pF Typical). Additionally, the SP724 is rated to withstand the IEC 61000-4-2 ESD specification for both contact and air discharge methods to level 4.
- 1nA Typical low input leakage current
- 3pF Typical low input capacitance
- Green product
- UL94V-0 Flammability rating
Applications
Communications & Networking, Safety
Product details
| Power Dissipation Pd | - |
| Clamping Voltage Vc Max | - |
| No. of Pins | 6Pins |
| Product Range | SP724 Series |
| Automotive Qualification Standard | - |
| Operating Voltage | 20V |
| Packaging | Cut Tape |
| Diode Case Style | SOT-23 |
Other details
| Brand | LITTELFUSE |
| Part Number | SP724AHTG |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

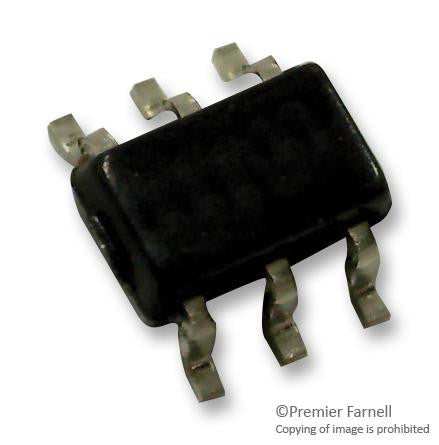

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 218.24 |
| 3-5 | ₹ 216.01 |
| 5-10 | ₹ 211.56 |
| 10+ | ₹ 207.1 |
Bulk discount will be automatically applied during checkout based on quantity.
